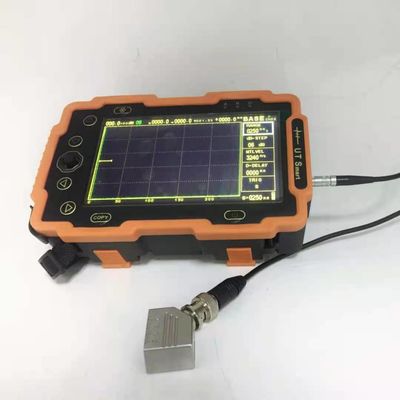

FD-530mini Lightweight Ultrasonic Defect Detector Dual CPU High Speed Testing 500 Groups Data Storage Metal Weld Flaw Detection Equipment

FD-530mini Lightweight Ultrasonic Defect Detector Dual CPU High Speed Testing 500 Groups Data Storage Metal Weld Flaw Detection Equipment

This is a portable industrial non-destructive flaw detector, which can rapidly, easily and accurately inspect, locate, evaluate and diagnose various defects (crack, inclusion and pinhole, etc.) in a work-piece without destruction. It can be used both in a lab and field. The instrument can be widely used in any fields that need defect inspection and quality controlling e.g. manufacturing industry, iron & steel metallurgical industry, metalworking, chemical industry, etc., also be broadly used in the active safety inspection and service-life evaluation in such fields as aerospace, railway transportation and boiler pressure vessels, etc. It is an essential instrument for non-destructive inspection industry.

When the ultrasonic wave propagates in a job, one can detect the defect in it by the influence on the propagation of ultrasonic wave based on the acoustic characteristic demonstrated by the defect in the material. Based on this principle, by using ultrasonic wave one can measure such defects as crack, pinhole and inclusion in such media as metal, non metal and composite, etc.

Technical Parameters

Performance Features

• The dual CPUs work in coordination, high speed detecting and data processing；
• Automatic calibration；
• Easy tests of thickness and sound velocity of materials;
• Freely set standards for various industries to meet different flaw detection
• Automated display precise flaw location(Depth d,level p,distance s,amplitude,dB,diameter ф)；
• Freely set standards for various industries to meet different flaw detection；
• The echo suppression is adjustable from 0 to 90%, without affecting the dB gain and linearity；
• DAG and AVG(DGS) curves are generated automatically;
• Muti-functions for easy detection: peak memory, Display freeze, automatic gain & wave search；
• Li -battery, continue working time up to 10 hours;
• Storage: 500 sets of flaw detection process and data storage;
• Provides high contrast viewing of the waveform from bright, direct sunlight to complete darkness and easy to read from all angles;
• USB connects to computer,automatically generate flaw detection report;
