HUATEC High-speed capture Digital Ultrasonic Flaw Detector FD510

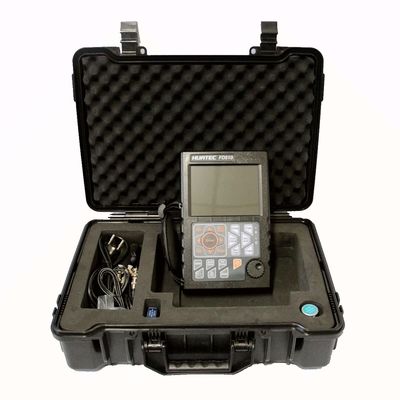

Large Image : HUATEC High-speed capture Digital Ultrasonic Flaw Detector FD510

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	ISO, CE, GOST
Model Number:	FD510

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS

Contact Now

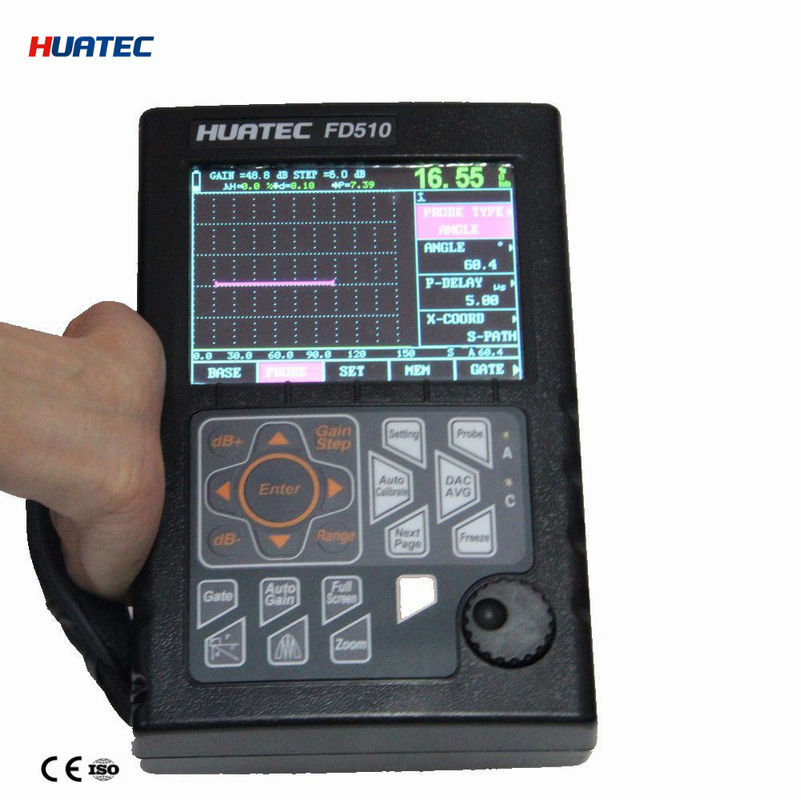

HUATEC High-speed capture Digital Ultrasonic Flaw Detector FD510

Description

Measuring Range(mm):

0 ～ 6000

Vertical Linearity Error:

≤3%

Horizontal Linearity Error:

≤0.1%

Sensitivity Leavings:

≥62dB

Highlight:

HUATEC digital ultrasonic flaw detector

high-speed capture flaw detector

FD510 ultrasonic testing equipment

Digital Ultrasonic Flaw Detector FD510

Main features:

Automated calibration,Automated gain, 0-110dB gain
DAC,AVG,TCG,B scan,AWS
High-speed capture and very low noise
Solid metal housing,water / oil proof,dust proof
high contrast viewing of the waveform from bright
Powerful pc software and reports can be export to excel
Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,ф)；
Automated switch three staff gauge ((Depth d,level p,distance s)；
Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity ；
Convenient to make and use DACTCG and AVG to evaluate the echo, the curve can be modified and compensated
6dB DAC functions;
100 independence setup, any criterion can be input freely, we can work in the scene without test block；
Big memory of 500 A graph
Automated gain and gain scan;
Peak Hold and Peak Memory；
B scan;
AWS D1.1
Automated make video of test process and play; use upan,the length of video is unlimited.
Powerful pc software and reports can be export to excel;
Li battery, continue working time up to 9 hours;
The embeded software can be online updated；
Other assistant function
- Display freeze;
- Automated echo degree;
- Angles and K-value;
- Lock and unlock function of system parameters;
- Electronic clock calendar ;
- Two gates setting and alarm indication;
- Gate and DAC alarm;

Title	Parameter	Title	Parameter
Measuring Range(mm)	0 ～ 6000	Measurement Mode	Single,Dual,Thru
Vertical Linearity Error	≤3%	Reject	0~80%
Horizontal Linearity Error	≤0.1%	Pulse Displacement(μs)	-20 ～ +3400
Sensitivity Leavings	≥62dB	Zero(μs)	0.0 ～ 99.99
Dynamic range	≥32dB	Port Type	BNC(Q9)
Resolving Power	≥36dB	Operating Temperature (℃)	-20～50
Frequency Range(MHz)	0.5 ～ 15	H×W×D(mm)	240×156×48
Gain(dB)	0 ～ 110	Weight(kg)	1.0(with battery)
Material Velocity(m/s)	1000 ～ 15000

Standard Delivery:

Main unit
2.5MHZ-ф20 straight probe
4MHZ-8x9mm, 60degree angle probe
4A/9Vpower adapter
Probe connection cable (BNC to BNC)
Probe connection cable (BNC to Lemo 00)
Instruction manual
Carrying case
RS232-USB converter

Additional Accessories:

Data managing software
Data managing cables RS232
Straight probe (5MHZ-ф20)
Straight probe (2.5MHZ-ф20)
Straight probe (2.25MHZ-ф20)
Straight probe (1MHZ-ф20)
Angle probe (4MHZ-45degree, 8*9mm)
Angle probe (4MHZ-60degree, 8*9mm)
Angle probe (4MHZ-70degree, 8*9mm)
Angle probe (4MHZ-80degree, 8*9mm)
Angle probe (2MHZ-45degree, 8*9mm)
Angle probe (2MHZ-60degree, 8*9mm)
Angle probe (2MHZ-70degree, 8*9mm)
Angle probe (2MHZ-80degree, 8*9mm)
Probe T/R (5MHz-ф20mm, focus 15mm)
Probe T/R (2.5MHz-ф20mm, focus 15mm)
Connection cable to probe (BNC-BNC)
Connection cable to probe (BNC-Lemo 00)
Connection cable to probe (BNC-Lemo 01)
Connection cable to probe (Lemo 00-Lemo 01)
Lithium ion battery
Power adapter (4A/9V)
Power Cable
Leather case
Test block V1
Test block V2
Test block DAC, ASME etc.
