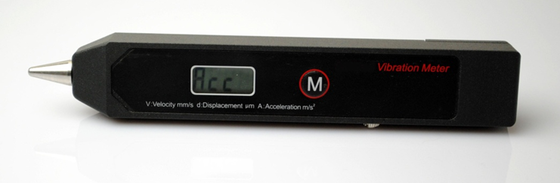

HG6450-3 Aluminum Body Portable Vibration Pen 10-1000Hz 3 Measuring Parameters Data Hold Auto Power Off Motor Bearing Fault Detector

Large Image : HG6450-3 Aluminum Body Portable Vibration Pen 10-1000Hz 3 Measuring Parameters Data Hold Auto Power Off Motor Bearing Fault Detector

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	HG6450-3

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

HG6450-3 Aluminum Body Portable Vibration Pen 10-1000Hz 3 Measuring Parameters Data Hold Auto Power Off Motor Bearing Fault Detector

Description

Accuracy:	+ 5% + 2 Digits	Operation Environment:	Operation Temperature: 0oC~50 OC; Relative Humidity: < 85%
Frequency Response:	Acceleration Peak: 10~1000Hz(0.5dB2 Digits) 1000～4000Hz(3dB2 Digits) Velocity RMS: 10Hz < F < 1000Hz, 10% Displacement Peak_Peak: 10Hz～1000Hz (0.5dB2 Digits)	Display:	4 Digits LCD, Refresh Interval About 0.5 Second
Battery Capacity:	>100 Hours Continuously Or 4000 Times Measurement
Highlight:	Aluminum body vibration pen , Portable motor bearing fault detector , Vibration pen with data hold

HG6450-3 Aluminum Body Portable Vibration Pen 10-1000Hz 3 Measuring Parameters Data Hold Auto Power Off Motor Bearing Fault Detector

Extremely reliable and potable, low cost instrument specifically designed for on-site maintenance in your plant or workshop. It measures overall vibration level by Velocity RMS, Displacement Peak, and Peak & Acceleration Peak. This easy to use instrument requires little operator training.

It features with one-button operation, holding function and automatic power off.

It is with remote switch and magnet base to avoid handheld problem, get reliable and consistent data.

Specifications:

Measurement Parameter and Measurement Range	Velocity RMS: 1~50mm/s, 10-1000 Hz Displacement Peak_Peak: 7~500 micron, 20-400 Hz Acceleration Peak: 1~50 m/s²,10-950 Hz
Accuracy	±5% ± 2 digits
Frequency response	Acceleration Peak: 10~1000Hz(0.5dB±2 digits) 1000～4000Hz(3dB±2 digits) Velocity RMS: 10Hz < f < 1000Hz, ±10% Displacement Peak_Peak: 10Hz～1000Hz (0.5dB±2 digits)
Display	4 digits LCD, refresh interval about 0.5 second
Power supply	1/2 AA, 3.6V, Operation Current 4-7mA
Battery capacity	>100 hours continuously or 4000 times measurement
Operation environment	Operation Temperature: 0^oC~50^oC; Relative humidity: < 85%
Dimensions	160mm x 25mm x 17mm (WxDxH)
Weight	120g (include batteries)
Case Material	Aluminum

Standard delivery

n Vibration meter HG6450-3 with accelerometer integrated

n Two testing needles (1 long,1 short)

n Small pocket bag

n Remote switch control unit

n Magnet base

n User’s Manual

n Certificate

HG6450-3 Aluminum Body Portable Vibration Pen 10-1000Hz 3 Measuring Parameters Data Hold Auto Power Off Motor Bearing Fault Detector 0

HG6450-3 Aluminum Body Portable Vibration Pen 10-1000Hz 3 Measuring Parameters Data Hold Auto Power Off Motor Bearing Fault Detector 1
