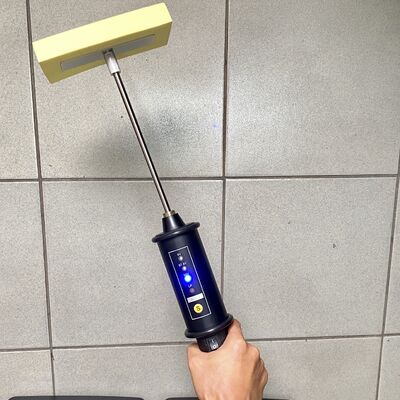

HD-104 High Sensitivity Wet Sponge Leak Detector Large Standard Sponge Probe Rod Anti-corrosive Coating Pinhole Gap Damage Inspection Instrument

HD-104 High Sensitivity Wet Sponge Leak Detector Large Standard Sponge Probe Rod Anti-corrosive Coating Pinhole Gap Damage Inspection Instrument
HD-104 High Sensitivity Wet Sponge Leak Detector Large Standard Sponge Probe Rod Anti-corrosive Coating Pinhole Gap Damage Inspection Instrument HD-104 High Sensitivity Wet Sponge Leak Detector Large Standard Sponge Probe Rod Anti-corrosive Coating Pinhole Gap Damage Inspection Instrument

Large Image :  HD-104 High Sensitivity Wet Sponge Leak Detector Large Standard Sponge Probe Rod Anti-corrosive Coating Pinhole Gap Damage Inspection Instrument

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: HD-104
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD575/set - USD650/set
Packaging Details: Carton packing box
Delivery Time: 7-10 working days after receipt of your payment
Payment Terms: T/T,Paypal
Supply Ability: 10sets/Month
Contact Now

HD-104 High Sensitivity Wet Sponge Leak Detector Large Standard Sponge Probe Rod Anti-corrosive Coating Pinhole Gap Damage Inspection Instrument

Description
Detector Range: 9V ——300µm;67.5V—500µm;90V——500µm Sensitivity: 9V——90KΩ+5% ;67.5V—125KΩ+5% ;90V——400KΩ+5%
Accuracy Of Voltage: +5% Battery: Li-pol Rechargeble Battery 11.1V/1100mA
Power: ≤0.5W Voltage Indication: LED Indication For Each Voltage
Battery Charging: 12VDC Charger
Highlight:

HD-104 wet sponge leak detector

,

large standard sponge probe rod

,

anti-corrosive coating pinhole inspection instrument

HD-104 High Sensitivity Wet Sponge Leak Detector Large Standard Sponge Probe Rod Anti-corrosive Coating Pinhole Gap Damage Inspection Instrument
Key Features

Utilizes the wet sponge technique and has been designed to set a new standard for wet sponge detectors - a high quality, low voltage detector with similar accessories to a high voltage spark tester.

  • Supplied ready to use
  • Automatic sensitivity calibration and voltage checks
  • Low battery indicator
  • Visual and audible alarms
  • Integral and separate wand functionality
  • A wide range of fully interchangeable wand accessories
  • Easy release snag proof cables
  • Large standard sponge
Technical Specifications
Attribute Value
Detector range 9V ——300µm; 67.5V—500µm; 90V——500µm
Sensitivity 9V——90KΩ+5%; 67.5V—125KΩ+5%; 90V——400KΩ+5%
Accuracy of voltage +5%
Battery Li-pol rechargeable battery 11.1V/1100mA
Power ≤0.5W
Weight main unit 500g
Size 290×53×53mm
Voltage indication LED indication for each voltage
Battery charging 12VDC charger
Sponge size 170×70×30mm
Detecting rod length 195mm
Earth wire length 4m
Standard Delivery
  • HD-104 pinhole main unit (1pc)
  • Standard wand and flat sponge (1pc)
  • Earth wire (1pc)
  • Charger (1pc)
  • Carrying case (1pc)
  • Manual (1pc)
  • Warranty card (1pc)
HD-104 Wet Sponge Holiday Detector main unit HD-104 Wet Sponge Holiday Detector accessories
