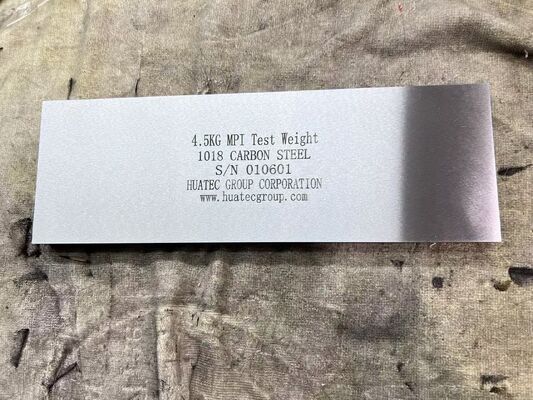

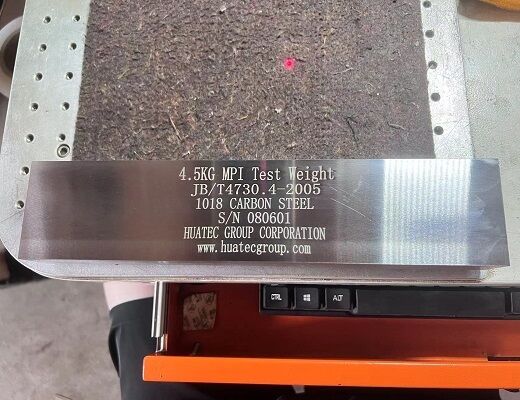

4.5KG MPI Test Weight 45N Magnetic Particle Inspection Lifting Force Test Block 1018 Carbon Steel For AC Magnetic Yoke Calibration

Large Image : 4.5KG MPI Test Weight 45N Magnetic Particle Inspection Lifting Force Test Block 1018 Carbon Steel For AC Magnetic Yoke Calibration

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	4.5kg

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	USD135-USD150/SET
Packaging Details:	aluminum alloy box+Outer carton packaging
Delivery Time:	3-5 working days after receipt of your payment
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	10 Sets/Month

Contact Now

4.5KG MPI Test Weight 45N Magnetic Particle Inspection Lifting Force Test Block 1018 Carbon Steel For AC Magnetic Yoke Calibration

Description

Standard:

ISO 3452-3:1998(E),JB/T6066,NB/T47013-2015,ASME,GB/T26951-2011

Highlight:

4.5KG MPI test weight

45N magnetic particle inspection block

1018 carbon steel test block

4.5KG MPI Test Weight 45N Magnetic Particle Inspection Lifting Force Test Block 1018 Carbon Steel For AC Magnetic Yoke Calibration

Weight Lift Test Bar designed for the calibration and certification of Magnetic Particle Inspection Yokes.

Test standard:ISO 3452-3:1998(E),JB/T6066,NB/T47013-2015,ASME,GB/T26951-2011

SPECIFICATION:	All linear dimensions and heat treatment to the requirements of BS EN 27963:1992/ISO 7963:1985.where the tolerances are ﹢0.00 and -0.03mm
MATERIAL:	Carbon steel 1018
	CAST No: C-0805251
	HEAT No: R-0805251
	Treated to 920 degrees C for 30 minutes, water quenched,re-heating 650 degrees C for 2 hours, air cooled.
TRACEABILITY:	Calibration standards used are traceable to international standards

NOTES: The lifting force of the magnetic powder test block is used to verify the size of portable magnetic particle detector lifting force

4.5KG MPI Test Weight 45N Magnetic Particle Inspection Lifting Force Test Block 1018 Carbon Steel For AC Magnetic Yoke Calibration 0

4.5KG MPI Test Weight 45N Magnetic Particle Inspection Lifting Force Test Block 1018 Carbon Steel For AC Magnetic Yoke Calibration 1

Tag:

Contact Person: Ms. Shifen Yuan

Tel: 8610 82921131,8618610328618

Fax: 86-10-82916893
