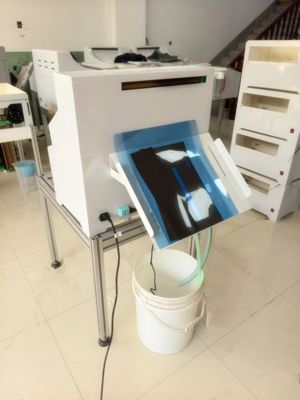

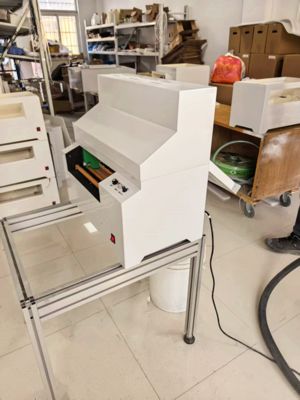

HDL-380 NDT Film Dryer with 8 Air Flow Channels and 360mm Sheet Feeding Width for Adjustable 40-240s Film Development

Large Image : HDL-380 NDT Film Dryer with 8 Air Flow Channels and 360mm Sheet Feeding Width for Adjustable 40-240s Film Development

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	ISO, CE, GOST
Model Number:	HDL-380

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS

Contact Now

HDL-380 NDT Film Dryer with 8 Air Flow Channels and 360mm Sheet Feeding Width for Adjustable 40-240s Film Development

Description

Film Release Method:	Front/back Film Release

HDL-380 Film Dryer with 8 Air Flow Channels

Product Overview

The HDL-380 Film Dryer is a high-performance drying system featuring 8 air flow channels for superior drying efficiency. Designed for industrial film processing applications, this dryer ensures consistent, reliable performance with advanced temperature control and durable construction.

Technical Specifications

Drying Process: → → Water washing → → Drying → →
Film Release Method: Front/back film release
Film Development Speed: 40-240s adjustable
Sheet Feeding Width: 360mm
Moving Speed: 950mm/min (running time: 40 seconds)
Dry Tablet Quantity: 80X360mm (4"X14") film 600 sheets per hour (dry film speed 40s)
Power Supply: 200-240V, 50/60Hz 5A
Water Consumption: 2 l/min during film operation
Dimensions: 560mm × 480mm × 545mm (L × W × H)

Key Features

Chip Induction Function

Added functionality for enhanced operational control

8 Air Flow Channels

Improved air duct design for higher drying efficiency

Roller Shaft

DuPont foamed uranium construction ensures no hardening within 5 years

Shell Material

Engineering PVC plastic for durability and longevity

Heating Element

PTC heating element for reliable performance

Temperature Control

Constant temperature control with solid-state relay

Optional Accessories

Water washing circulating device - ideal for sites without tap water, poor water quality, or frequent water stoppage conditions.
