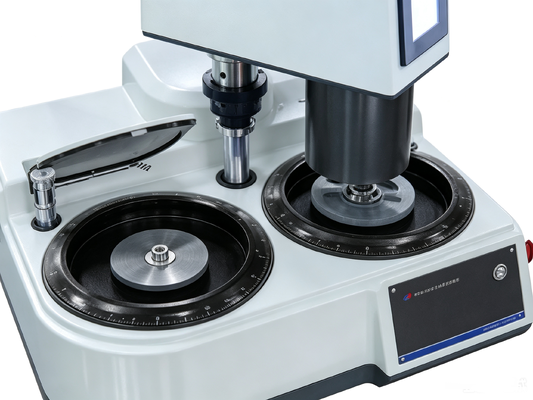

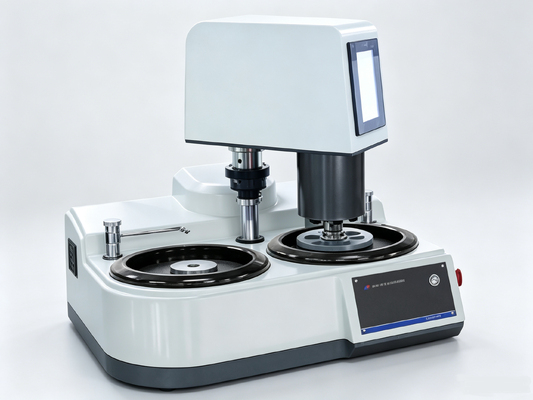

HPA-2000S (Multi-point pressure & center pressure) Fully automatic metallographic grinding and polishing machine
Product Introduction
HPA-2000S fully automatic metallographic grinding and polishing machine simultaneously supports:
- Multiple samples loaded independently
- Sample tray center loading
Holds six samples at a time and can be equipped with a four-channel automatic dispensing device (optional) to complete the grinding and polishing process in a fully automated manner.
Features
- HPA-2000S fully automatic single and double disc metallographic grinding and polishing machines, simultaneously supporting multiple samples loaded independently and sample tray central loading, fixing six samples (up to eight can be customized) at once to complete the entire grinding and polishing process
- Grinding and polishing discs and sample discs: Set and run all grinding and polishing parameters such as rotation speed, grinding and polishing time, rotation direction, and water valve closure, with automatic saving for easy recall
- PLC + 1KW high-power motor system
- Uses two independent 1KW high-power motors with high torque that remains constant regardless of speed
- Wide speed range, from 5 rpm to 1000 rpm (maximum 1500 rpm)
- Turntable can start and stop quickly; stops rotating in just 2 seconds
- All grinding and polishing parameters automatically saved and easily recalled
- Imported PLC brand for reliable quality
- Touchscreen interface for convenient parameter setting
- 3 working modes:
- Fully automatic mode: 99 sets of processes (flows) can be set and recalled, each containing 10 steps of process parameters
- Multi-process mode: 30 process parameters can be set and called for each grinding and polishing step
- Manual mode: Operate specific functions of the device individually
- Stores 100 processes with import/export capability
- Sample grinding layer thickness control: Precisely control the amount of sample removed during grinding (optional)
- Includes 1, 4, or 6-channel automatic dripper (optional) with three operating modes: manual, online, and fully automatic
- Grinding head features electromagnetic automatic locking for greater convenience
- Easily replace magnetic anti-stick disc; one disc equivalent to N discs
- Switch between Chinese and English interfaces
- Mobile remote control operation (optional)
Technical Parameters
| Parameter |
Specification |
| Model |
HPA-2000S |
| Grinding and polishing disc |
2 |
| Grinding and polishing disc main motor |
1KW × 2 |
| Control method |
Touch screen + PLC |
| Pressurization method |
Pneumatic multi-point pressurization (individual pressurization for each sample) + Electric central pressurization |
| Grinding disc diameter (mm) |
φ254 (optional φ200, φ230, φ300) |
| Grinding and polishing disc speed |
5-1000 (r/min) with optional 1500 (r/min) |
| Direction of rotation of the polishing disc |
Choose between counter-clockwise or clockwise, with automatic switching between forward and reverse |
| Sample disk diameter |
160mm, customizable |
| Sample tray sample aperture |
φ30mm six-hole (optional: φ30mm eight-hole, φ30mm six-hole, φ20mm six-hole, φ40mm six-hole, φ50mm three-hole, or custom-made) |
| Central pressure |
10-200N |
| Single sample pressure |
(1-40N) × 6, (1-60N) × 8 (optional) |
| Sample disk rotation speed |
The steering can be switched between forward and reverse at speeds of 30-200 RPM |
| Manual mode |
You can select 30 sets of parameters, each set can be set and invoked separately |
| Automatic mode |
99 sets of processes (flows), each set of processes contains 10 steps of process parameters (automatically from process 1 to process 10, each step corresponds to a set of parameters) |
| User Programming |
Users can program and call |
| Sample grinding thickness control |
Thickness control accuracy 0.05 mm (optional) |
| Gas source pressure |
0.6MPa |
| Grinding head locking method |
Electromagnetic Automatic |
| Dripper |
1-channel, 4-channel, and 6-channel (optional) controllable by a polishing machine |
| Power supply |
Voltage: AC220V; Frequency: 50Hz; Power: 2KW |
| External dimensions (mm) |
760 × 730 × 700 |
| Weight |
74 kg |
Main Attachments
| Name |
Quantity (Double plate) |
Name |
Quantity (Double plate) |
| Magnetic disk (254mm) |
2 |
Anti-stick tray |
2 |
| Adhesive-backed sandpaper, 254mm (or 250mm), 180#, 600#, 1000# |
2 of each |
Polishing cloth (with adhesive, 250mm) Velvet, canvas |
1 each |
| Diamond suspension grinding and polishing fluid 1 micrometer, 6 micrometer, 200 ml |
1 bottle each |
Anti-stick plate pry bar (used for placing and prying up the anti-stick plate) |
1 |
| Product instruction manual, product certificate |
2 copies |
|
|
Additional Accessories
| Product |
Description |
| MAGNOMET |
Anti-stick trays 5 pieces/box, diameter: Φ250mm. The surface features a special non-stick coating, allowing you to attach adhesive-backed sandpaper or polishing cloths to the tray for easy replacement without leaving any residue. It is reusable. This disk is used directly on the magnetic disks of BUEHLER or STRUERS; Replacement for Buehler's MagnoMet and MagnoPad |
| G SC 250A |
Metallographic sandpaper 100 sheets/pack. Abrasive: Black silicon carbide. Particle size designations: P80#, 120#, 180#, 320#, 600#, 800#, 1000#, 1200#, 1500#, 2000#. Size: Φ250 mm water resistant. With adhesive backing, the sandpaper can be directly fixed to the grinding wheel. |
| FT250A |
Metallographic polishing fabric 10 pieces/pack. Velvet (long pile) / Canvas (short pile) / Woolen fabric (short pile) / Silk (no pile) Φ250 mm. Adhesive backing: The fabric can be directly fixed to the grinding disc. |
| DSU |
Diamond suspension polishing slurry 500 ml / bottle. Diamonds are suspended in a liquid and evenly distributed through a spray bottle or automatic dripping. Particle size: 0.25, 0.5, 1, 1.5, 2.5, 3, 3.5, 5, 6, 7, 9, 10, 14, 15, 20, 28, 40 micrometers, suitable for various materials. |
