HFD-2000 Multi-channel Ultrasonic Flaw Detection Board with 0 to 120dB Gain Ranges, 0 to 15m Detection Range, and >65dB Sensitivity Margin

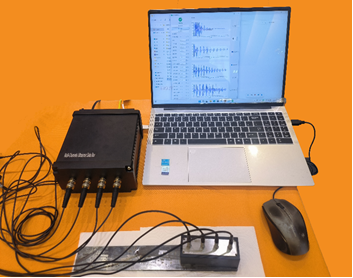

Large Image : HFD-2000 Multi-channel Ultrasonic Flaw Detection Board with 0 to 120dB Gain Ranges, 0 to 15m Detection Range, and >65dB Sensitivity Margin

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	ISO, CE, GOST
Model Number:	HFD-2000

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS

Contact Now

HFD-2000 Multi-channel Ultrasonic Flaw Detection Board with 0 to 120dB Gain Ranges, 0 to 15m Detection Range, and >65dB Sensitivity Margin

Description

Gain Ranges:	0 To 120dB

HFD-2000 Multi-channel Ultrasonic Flaw Detection Board

The HFD-2000 ultrasonic automatic detection board enables rapid, non-destructive, and precise monitoring, localization, evaluation, and diagnosis of workpiece damage. This essential system in the non-destructive testing industry supports automatic inspection, C-scan, online flaw detection, thickness measurement, and 24/7 ultrasonic signal monitoring.

Applications

Widely utilized across multiple industries including electric power, petrochemical, boiler pressure vessels, steel structures, aerospace, railway transportation, automotive, and machinery manufacturing.

Technical Specifications

Parameter	Specification
Detection Range	0 to 15m
Gain Range	0 to 120dB
Sensitivity Margin	>65dB
Dynamic Range	38dB
Resolution	42dB (5P14)
Speed of Sound	100 to 20000m/s
Frequency Range	0.2 to 30MHz
Display Accuracy	0.001mm
Repeated Firing Frequency	16 to 25Khz
Vertical Linear Error	<2%

Key Features

24/7 monitoring with automatic detection, gain, measurement, capture, alarm, storage, and report generation
Gigabit Ethernet transmission of waveform data, gate height data, alarm data, and test results
Real-time upload of all 20K detection results
Scalable channel configuration: single board channel, 4 channels, 8 channels, or multi-board systems supporting hundreds of channels
Multiple communication options: Gigabit Ethernet, 485/232, Bluetooth
IP67 rated dustproof and waterproof construction with optional long-term underwater detection capability
Standard PC software for real-time display of all channel waveforms and test results
Four optional gates
Battery or plug-in operation for continuous all-weather functionality

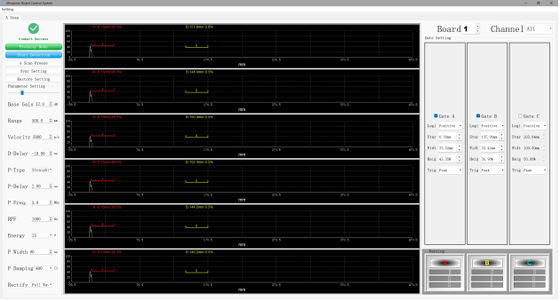

Comprehensive software with multi-channel A-scan waveform, strip chart, C-scan functions, and defect capture capabilities
Software development support with communication protocols and basic functions for customization

This versatile detection system provides comprehensive non-destructive testing solutions with advanced automation, scalability, and robust environmental protection for demanding industrial applications.
