HFD-2000 Multi-channel Ultrasonic Flaw Detection Board with 0.001mm Display Accuracy and 0.2-30MHz Frequency Range

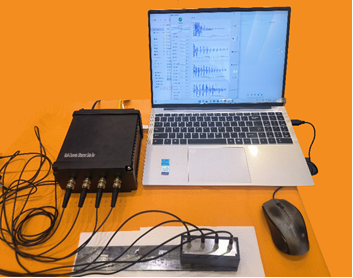

Large Image : HFD-2000 Multi-channel Ultrasonic Flaw Detection Board with 0.001mm Display Accuracy and 0.2-30MHz Frequency Range

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	ISO, CE, GOST
Model Number:	HFD-2000

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS

Contact Now

HFD-2000 Multi-channel Ultrasonic Flaw Detection Board with 0.001mm Display Accuracy and 0.2-30MHz Frequency Range

Description

Display Accuracy:	0.001mm

HFD-2000 Multi-channel Ultrasonic Flaw Detection Board

The HFD-2000 ultrasonic automatic detection board enables rapid, non-destructive, and precise monitoring, localization, evaluation, and diagnosis of workpiece damage. This essential system in the non-destructive testing industry supports automatic inspection, C-scan imaging, online flaw detection, thickness measurement, and 24/7 ultrasonic signal monitoring across various industrial sectors.

Technical Specifications

Parameter	Specification
Detection Range	0 to 15m
Gain Range	0 to 120dB
Sensitivity Margin	>65dB
Dynamic Range	38dB
Resolution	42dB (5P14)
Speed of Sound Range	100 to 20,000m/s
Frequency Range	0.2 to 30MHz
Display Accuracy	0.001mm
Repeated Firing Frequency	16 to 25kHz
Vertical Linear Error	<2%

Core Functions

24/7 monitoring with automatic detection, gain control, measurement, capture, alarm, storage, and report generation

Gigabit Ethernet transmission of waveform data, gate height data, alarm data, and control signals

Real-time upload of all 20K detection results

Scalable channel configuration: single board, 4 channels, 8 channels, or multi-board systems supporting hundreds of channels

Multiple communication interfaces: Gigabit Ethernet, RS-485, RS-232, and Bluetooth

IP67-rated dustproof and waterproof construction with optional long-term underwater detection capability

Standard PC software displaying real-time multi-channel A-scan waveforms and test results

Four optional gates for flexible testing configurations

Battery-powered operation or continuous plugged-in operation

Comprehensive inspection software with multi-channel A-scan, strip chart, C-scan functions, and defect management

Software development support with communication protocols and basic function libraries

Industry Applications

Widely utilized in power generation, petrochemical, boiler pressure vessel, structural steel, aerospace, railway transportation, automotive, machinery manufacturing, and various industrial fields requiring precision non-destructive testing.
