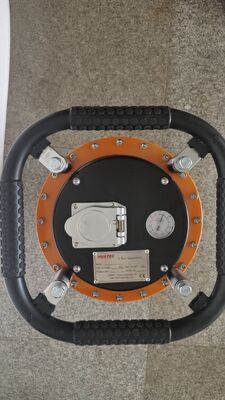

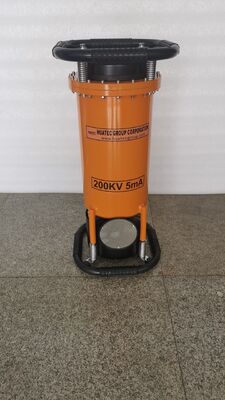

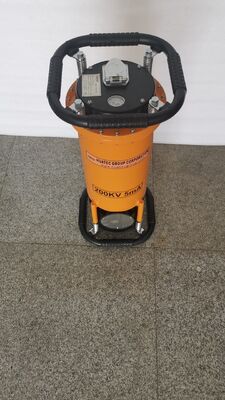

XXG-2005 Frequency Conversion Portable Type X-Ray Flaw Detector

XXG-2005 Frequency Conversion Portable Type X-Ray Flaw Detector
XXG-2005 Frequency Conversion Portable Type X-Ray Flaw Detector XXG-2005 Frequency Conversion Portable Type X-Ray Flaw Detector XXG-2005 Frequency Conversion Portable Type X-Ray Flaw Detector XXG-2005 Frequency Conversion Portable Type X-Ray Flaw Detector

Large Image :  XXG-2005 Frequency Conversion Portable Type X-Ray Flaw Detector

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO,CE
Model Number: XXG-2005
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: in wooden box
Delivery Time: 5-7 days after payment
Payment Terms: L/C,T/T,Western Union
Supply Ability: 50 sets per month
Contact Now

XXG-2005 Frequency Conversion Portable Type X-Ray Flaw Detector

Description
Product Name: X Ray Flaw Detector Max Penetration Thickness Steel (A3): 30mm
Focal Distance: 600mm Output: 50-200Kv
Tube Current (mA): 5 Focus Mm2: 1.5×1.5
Radiation Angle: 40±5° Cooling: Force Air Cooling
Highlight:

portable X-ray flaw detector

,

frequency conversion X-ray detector

,

non-destructive testing equipment with warranty

XXG-2005 Frequency Conversion Portable Type X-Ray Flaw Detector


Features:

◆Adopting micro-computer control and modular structure, with strong anti-interference ability and high automaticity and reliable performance.

◆Parameter setting, working process and trouble indication will be indicated on the LED screen.

◆Independent aging key is designed for aging the machine conveniently.

◆Radiating time to cooling time is 1:1.

◆The controller can recognize the type of x-ray generator automatically.

◆The water and dust proof color panel and digital sound keyboard are introduced that exposure parameters are promptly and accurately selected.

◆Ensure safety using the instrument, it is installed with overvoltage, under voltage,
over current, under current and over temperature protection device.

◆A unique safety lock is designed that protect the operator from the damage of radiation.

◆Adopting the wider range of KV value, and solve the difficulty problem of short radiographic range.

◆Exposure delay function ------the delay time can be set less than 10 minutes to keep the operator safe from working place.

◆Match with various generator and function reliably.

◆Number of exposure can be accumulated.

(After the unit has been ready, but before press the "ON" key, you can press the "A" key (delay key) three times to check the number of exposure, and press any key to return back.)

◆With the outlet of ray warning lamp and wire connecting terminal of door-machine interlock.

(Door-machine interlock—when the lead door opens, the instrument cut off the high voltage automatically to protect the operator)


Main technical parameters

                TYPE

ITEM

XXG2005

Max Penetration thickness  Steel (A3)

30mm

Focal Distance

600mm

Exposure Time

5min

Film Type

Agfa D7

Double lead foil Intensifying screen

0.03

Darkroom Disposal

20±2℃

Development

5minutes

Blackness

1.5

Input

Voltage (V)

220V±10%  50―60Hz

Capacity (KVA)

2.0

Output

  Tube voltage (KVP)

50-200Kv

Tube current (mA)

5

Stability

±1%

X-RAY

Tube

Focus mm2

1.5×1.5

Radiation Angle

40±5°

Sensitivity

k≤1.8%

Operation Mode

Intermittent operation, Radiating time to cooling time is 1:1

X-Ray

Controller

Dimension

350×290×160

Weight

11kg

Circuit Structure

 Micro-computer control ,Modular structure,Voice prompt

X-RAY

Generator

Cooling

Force air cooling

Insulation

SF6 Gas Insulation

Working Pressure

0.35Mpa-0.45Mpa

Dimension

280×280×600

Weight (kg)

22.5kg

Working Temperature

-10℃―+40℃

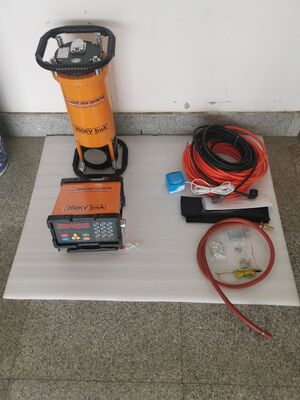

Standard Delivery

Directional ceramic X-ray tube

 1 Pcs



Generator

 1 Set

　

High voltage joins cable

 1 Pcs

25 Meters

Controller

  1 Set

　

Power cable

 1 Pcs

10 Meters

Grounding cable

 1 Pcs

5 Meters

Accessories

  1 Set

　

(Including: alarm lamp,1 Pcs; lead letter, 1 box; Film dark cassettes 5 pcs; intensifying screen 5 pcs; Wire penetrameter (IQI) 1 set; fuse1 pc)

Optional accessories:

Testing platform, IQI/wire penetrameter, lead letter/digits, lead tape, Cassette, lead screen, personal dosimeter, film viewer, densitometer, film developer, dark room light, RT calibration block etc.
