FD530mini Large Screen Li Battery USMGO Portable Ultrasonic Flaw Detector (UT)

Large Image : FD530mini Large Screen Li Battery USMGO Portable Ultrasonic Flaw Detector (UT)

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	ISO,CE
Model Number:	FD530mini

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	in carton
Delivery Time:	5-8 days after payment
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	50 sets per month

Contact Now

FD530mini Large Screen Li Battery USMGO Portable Ultrasonic Flaw Detector (UT)

Description

Product Name:	Ultrasonic Flaw Detector	Range Of Scanning (mm):	Range Of Scanning (mm)：0～1000
D-delay (s):	D-delay (s)：0～5000	Frequency Range (MHz):	0.5~10
Alarm:	Three Modes, I.e. Forbidden Wave, Loss Wave And Auto	A-Scan Display Area:	A-Scan Display Freezing And De-freezing A-Scan Filling
Standard Communication Interface With PC:	USB	Measuring Unit:	Mm/inch
Battery:	Li Battery 3.6V 3000mAh * 4	Port Type:	LEMO
Highlight:	FD530mini portable ultrasonic flaw detector , large screen Li battery flaw detector , USMGO portable UT testing equipment

FD530mini Large Screen Li Battery USMGO Portable Ultrasonic Flaw Detector (UT)

Performance Features

l The dual CPUs work in coordination, high speed detecting and data processing；

l Automatic calibration；

l Easy tests of thickness and sound velocity of materials;

l Freely set standards for various industries to meet different flaw detection

l Automated display precise flaw location(Depth d,level p,distance s,amplitude,dB,diameter ф)；

l Freely set standards for various industries to meet different flaw detection；

l The echo suppression is adjustable from 0 to 90%, without affecting the dB gain and linearity；

l DAG and AVG(DGS) curves are generated automatically;

l Muti-functions for easy detection: peak memory, Display freeze, automatic gain & wave search；

l Li -battery, continue working time up to 10 hours;

l Storage: 500 sets of flaw detection process and data storage;

l Provides high contrast viewing of the waveform from bright, direct sunlight to complete darkness and easy to read from all angles;

l USB connects to computer,automatically generate flaw detection report;

Technical Parameters

Item	Technical Data
Range of scanning (mm)	Range of scanning (mm):0～1000
D-delay (ms)	D-delay (ms):0～5000
MTLVEL(m/s)	MTLVEL:1000～9999
Working mode	Single probe (receiving and sending), double probe (one for receiving and another for sending), transmission (transmission probe)
Frequency Range (MHz)	0.5~10
Gain adjustment (dB)	0～110
Reject	0%～80% of screen height
Vertical linear error	Vertical linear error is not more than 3%
Horizontal linear error	Not more than 0.1% in the scanning range
Sensitivity Leavings	≥50 dB
Dynamic range	≥36dB
Alarm	Three modes, i.e. forbidden wave, loss wave and auto
A-Scan display area	Full screen or local A-Scan display freezing and de-freezing A-Scan filling
Data save	500 A-Scan images (including setting of instrument)
Standard communication interface with PC	USB
Measuring unit	mm/inch
Battery	Li battery 3.6V 3000mAh * 4
Power adaptor	4.2V DC 220AC
Working temperature	-20℃～50℃
Working humidity	20%～90%
Port type	LEMO
Overall dimension (mm)	162×105×42
Weight (kg)	0.68 (include Li-ion battery)

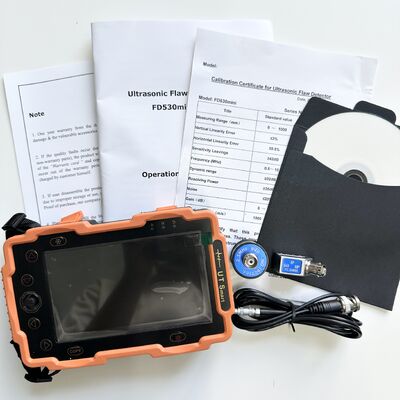

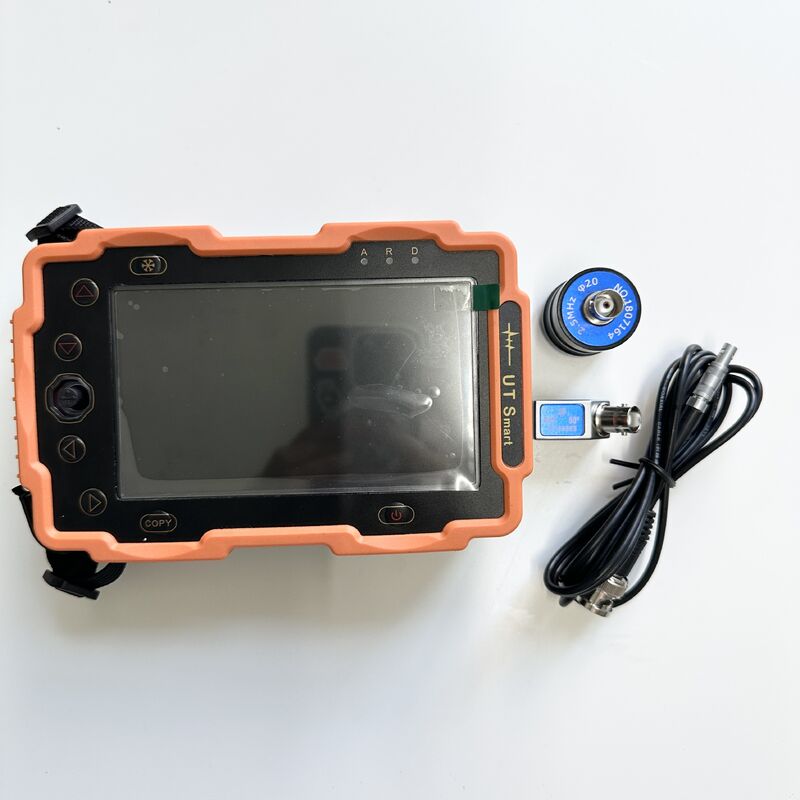

Standard Configuration

Table 1.1 List of standard configurations

Designation	Quantity
Main unit	1
4.2V power adaptor	1
probe connecting cable	1
Carrying case	1
Instruction manual	1
Straight probe	1 (Dia 20mm, 2.5MHz)
Angle probe	1 (13×13, 60°, 2.5MHz)

Options

Designation	Quantity
Communication software for PC	1 set
Other probes	Straight/ Angle/ Dual types for option
