AC/DC Yoke Handheld Magnetic Particle Flaw Detector MPI Equipment 240V/220V /110V

AC/DC Yoke Handheld Magnetic Particle Flaw Detector MPI Equipment 240V/220V /110V
AC/DC Yoke Handheld Magnetic Particle Flaw Detector MPI Equipment 240V/220V /110V AC/DC Yoke Handheld Magnetic Particle Flaw Detector MPI Equipment 240V/220V /110V AC/DC Yoke Handheld Magnetic Particle Flaw Detector MPI Equipment 240V/220V /110V AC/DC Yoke Handheld Magnetic Particle Flaw Detector MPI Equipment 240V/220V /110V

Large Image :  AC/DC Yoke Handheld Magnetic Particle Flaw Detector MPI Equipment 240V/220V /110V

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO,CE
Model Number: HCDX-Y9
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: in carton
Delivery Time: 3~7 working days after payment
Payment Terms: L/C,T/T,Western Union
Supply Ability: 100pcs per month
Contact Now

AC/DC Yoke Handheld Magnetic Particle Flaw Detector MPI Equipment 240V/220V /110V

Description
Product Name: MPI Equipment Power Supply: 110V/220V/240V Single-phase AC Power Supply
Waveform: AC/DC Leg / Pole Span: 0~220mm
Leg Size: 22*22mm Power Cord Length: 3M
Highlight:

AC/DC yoke flaw detector

,

handheld magnetic particle testing equipment

,

MPI equipment with 240V/220V/110V

AC/DC Yoke Handheld Magnetic Particle Flaw Detector MPI Equipment 240V/220V /110V


FEATURES

• Ergonomic, light-weight design

• IP54 sealed housing resists dust and water

• Field-swappable power cord

• Isolated, replaceable trigger switch

• Steel shields for leg protection

• Exceeds ASTM lifting specifications

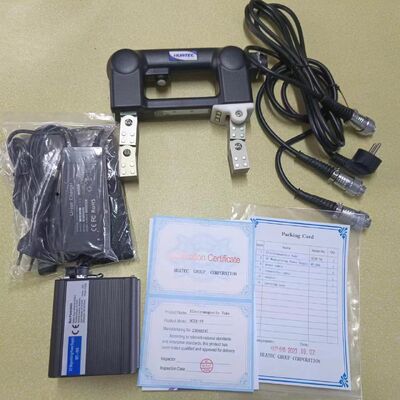

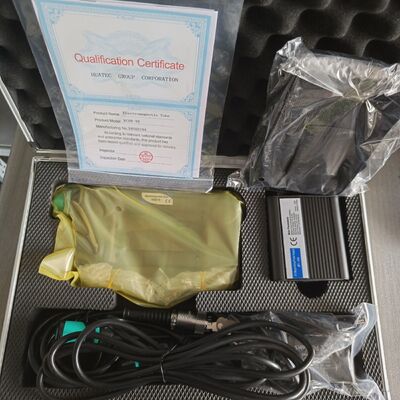

• Convenient carrying case supplied with all yoke shipments

• Optional LED UV & White yoke light lasts longer and is more intense compared to traditional bulbs

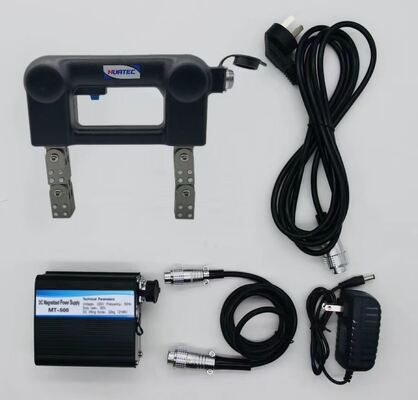

• Two power supply modes are optional:

 110V/220V/240V Single-phase AC power supply (straight plug mode);

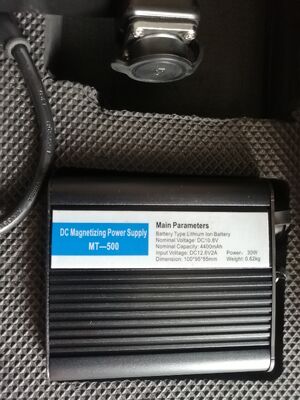

 DC magnetization power supply (DC battery pack with digital display screen)

• Optional special waist pack can carry magnetized power battery, magnetic suspension, contrast agent etc.


Parameters index

Model

Items

HCDX-Y2

HCDX-Y9

Electrical Requirements

AC110-115V 50/60Hz

AC220-230V 50/60 Hz

AC240V 50/60Hz

Waveform

AC

Tangential Field Strength

> 2kA/m at midpoint between legs / poles

Working temperature

-10～+40℃

Duty Cycle

50%, max on time is 90 seconds

Ingress Protection (IEC 60259)

IP54

Relative humidity

<80%

Sensitivity

ASTM E1444-05,ASME 2007 page number V

DC power pack

X

●

AC working current

AC2.2A

DC working current

X

DC 1.5A

Battery charging time

X

3hours

Battery working time

X

6h

Leg / Pole Span

0~220mm

Leg size

22*22mm

Power cord length

3M

Lifting Force

A C

≥7.1kg (69N)

D C

≥22.2kg (216N)

Weight

Yoke

2.3kg

DC Battery

X

0.6kg

Note:“X”not included, “●”included
