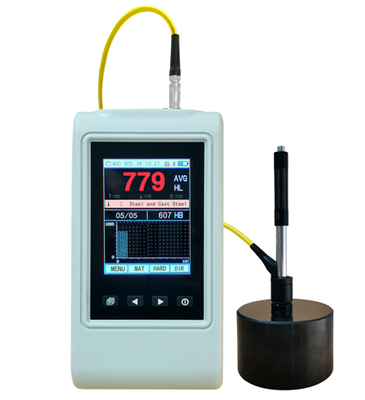

RHL-141 Bluetooth Portable Hardness Tester with Wide Measuring Range and Rechargeable Li Battery

RHL-141 Bluetooth Portable Hardness Tester with Wide Measuring Range and Rechargeable Li Battery
RHL-141 Bluetooth Portable Hardness Tester with Wide Measuring Range and Rechargeable Li Battery RHL-141 Bluetooth Portable Hardness Tester with Wide Measuring Range and Rechargeable Li Battery

Large Image :  RHL-141 Bluetooth Portable Hardness Tester with Wide Measuring Range and Rechargeable Li Battery

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: RHL-141
Contact Now

RHL-141 Bluetooth Portable Hardness Tester with Wide Measuring Range and Rechargeable Li Battery

Description
Measuring Range: HLD(170 ~ 960), HRA(59 ~ 85), HRB(13 ~ 100), HRC(20 ~ 68), HB(19 ~ 651), HV(80 ~ 967), HS(30 ~ 100)

RHL-141 Bluetooth Portable Hardness Tester

The RHL-141 Bluetooth Portable Hardness Tester is an advanced testing instrument designed for comprehensive hardness measurement across various metallic materials. Featuring Bluetooth connectivity and multiple impact device compatibility, it offers exceptional versatility and precision in industrial applications.

Key Features
  • Advanced Leeb hardness model with automatic impact device identification
  • High-performance rechargeable lithium battery with intelligent charging management
  • Optional PC software for data query, storage, statistics, and histogram display
  • Mass storage capacity with Bluetooth communication capabilities
  • Upper and lower limit settings with audible alarm system
  • 2.8" TFT display (320×240 pixel) showing all functions and parameters
  • Direct display of multiple hardness scales: HRB, HRC, HV, HB, HS, HL
  • Universal compatibility with all metallic materials
  • Multi-directional testing capability at any angle, including upside down
  • Wide measuring range with six optional impact devices for specialized applications
  • Battery level indication and low battery audible alarm
Technical Specifications
Hardness Scale HL, HRC, HRB, HRA, HV, HB, HS
Memory Capacity 510 files, 47–341 groups per file (32–1 impact times)
Measuring Range HLD(170–960), HRA(59–85), HRB(13–100), HRC(20–68), HB(19–651), HV(80–967), HS(30–100)
Tensile Strength (UTS) 374–2652 MPa
Accuracy ±6HLD (760±30HLD) error of displayed value
6HLD (760±30HLD) repeatability of displayed value
Standard Impact Device D
Data Interface USB 2.0, Bluetooth
Optional Impact Devices DC / D+15 / G / C / DL
Maximum Workpiece Hardness 996HV (For Impact Devices D / DC / DL / D+15 / C)
646HB (For Impact Device G)
Minimum Radius of Workpiece Rmin = 50mm (with special support ring Rmin = 10mm)
Minimum Workpiece Weight 2–5kg on stable support
0.05–2kg with compact coupling
Minimum Workpiece Thickness 5mm (Impact Devices D/DC/DL/D+15)
1mm (Impact Device C)
10mm (Impact Device G)
Minimum Thickness of Hardened Layers 0.8mm
Power Source Rechargeable Li Battery, 3.7V, Li(2000mAh)
Continuous Working Time Approximately 30 hours
Charging Time 4–5 hours
Operating Temperature 0–40°C
Humidity ≤ 90%
Overall Dimensions 212 × 80 × 35 mm
Weight 320g

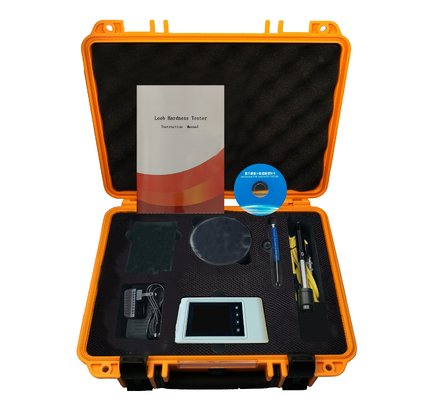

Standard Delivery
  • Main unit RHL-141
  • Impact Device type D
  • Test block HLD
  • Charger
  • Brush
  • Table support for main unit
  • Connecting cable
  • HUATEC calibration certificate
  • Instruction manual
  • Dataview Software
Optional Accessories
  • Optional impact devices
  • Optional support rings
  • Other test blocks
  • Micro Printer
