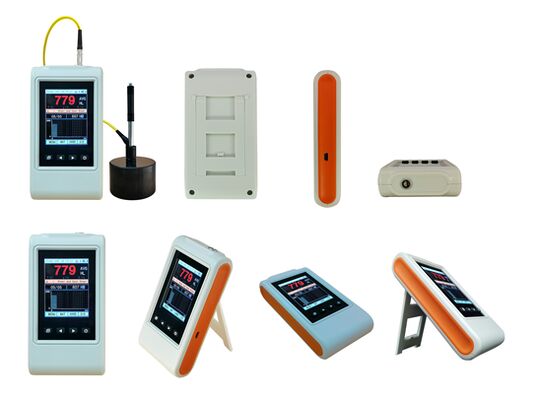

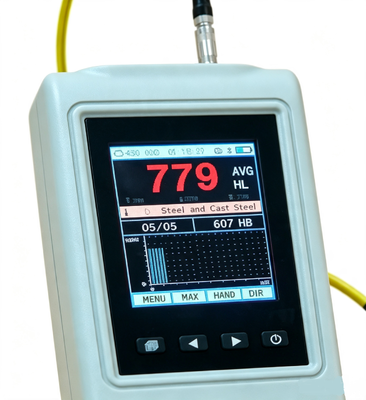

RHL-141 Bluetooth Portable Hardness Tester with Automatic Impact Device Identification and Wide Measuring Range

RHL-141 Bluetooth Portable Hardness Tester with Automatic Impact Device Identification and Wide Measuring Range
RHL-141 Bluetooth Portable Hardness Tester with Automatic Impact Device Identification and Wide Measuring Range RHL-141 Bluetooth Portable Hardness Tester with Automatic Impact Device Identification and Wide Measuring Range

Large Image :  RHL-141 Bluetooth Portable Hardness Tester with Automatic Impact Device Identification and Wide Measuring Range

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: RHL-141
Contact Now

RHL-141 Bluetooth Portable Hardness Tester with Automatic Impact Device Identification and Wide Measuring Range

Description
Optional Impact Devices: DC / D+15 / G / C / DL Max. Workpiece Hardness: 996HV(For Impact Devices D / DC / DL / D+15 / C)
Min. Radius Of Workpiece (convex/concave): Rmin = 50mm (with Special Support Ring Rmin = 10mm ) Min. Radius: Rmin = 50mm (with Special Support Ring Rmin = 10mm)

RHL-141 Bluetooth Portable Hardness Tester
Key Features
  • Advanced Leeb hardness model
  • Automatic identification of impact devices
  • High performance rechargeable Li battery with intelligent charging management
  • Optional software for PC connectivity with data query, storage, statistics, and histogram display
  • Mass storage with Bluetooth communication
  • Upper and lower limit settings with sound alarm
  • 2.8" TFT display (320*240 pixel) showing all functions and parameters
  • Direct display of hardness scales: HRB, HRC, HV, HB, HS, HL
  • Suitable for all metallic materials
  • Testing at any angle, including upside down
  • Wide measuring range
  • Six impact devices available for special applications
  • Battery low indication and sound alarm
Technical Specifications
Hardness Scale HL, HRC, HRB, HRA, HV, HB, HS
Memory 510 files, 47–341 groups (impact times: 32–1) per file
Measuring Range HLD(170–960), HRA(59–85), HRB(13–100), HRC(20–68), HB(19–651), HV(80–967), HS(30–100)
Tensile Strength U.T.S. Range 374–2652 MPa
Accuracy ±6HLD (760±30HLD) error of displayed value
6HLD (760±30HLD) repeatability of displayed value
Standard Impact Device D
Data Interface USB 2.0, Bluetooth
Optional Impact Devices DC / D+15 / G / C / DL
Max. Workpiece Hardness 996HV (For Impact Devices D / DC / DL / D+15 / C)
646HB (For Impact Device G)
Min. Radius of Workpiece (convex/concave) Rmin = 50mm (with special support ring Rmin = 10mm)
Min. Workpiece Weight 2–5kg on stable support
0.05–2kg with compact coupling
Min. Workpiece Thickness 5mm (Impact Devices D/DC/DL/D+15)
1mm (Impact Device C)
10mm (Impact Device G)
Min. Thickness of Hardened Layers 0.8mm
Power Rechargeable Li Battery, 3.7V, Li(2000mAh)
Continuous Working Time About 30 hours
Charging Time 4–5 hours
Operating Temperature 0–40°C
Humidity ≤ 90%
Overall Dimensions 212 * 80 * 35 mm
Weight 320g
Standard Delivery
Main unit RHL-141, Impact Device type D, Test block HLD, Charger, Brush, Table support for main unit, Connecting cable, HUATEC calibration certificate, Instruction manual, Dataview Software
Optional Accessories
Optional impact devices, Optional support rings, Other test blocks, Micro Printer
