FJ-2000 X-ray Individual Dose Apparatus Accumulated Dose Radiation Monitoring Personal Dosimeter

FJ-2000 X-ray Individual Dose Apparatus Accumulated Dose Radiation Monitoring Personal Dosimeter
FJ-2000 X-ray Individual Dose Apparatus Accumulated Dose Radiation Monitoring Personal Dosimeter FJ-2000 X-ray Individual Dose Apparatus Accumulated Dose Radiation Monitoring Personal Dosimeter

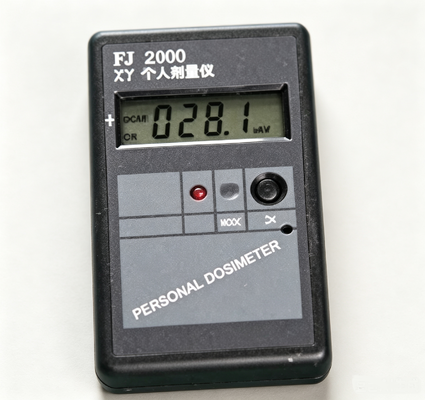

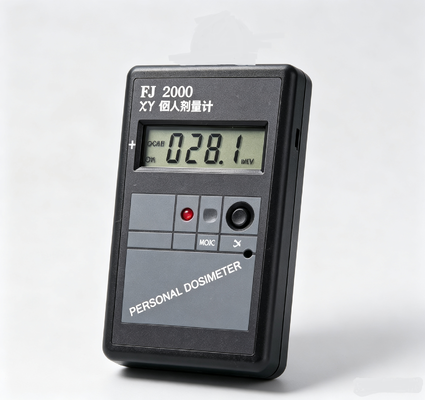

Large Image :  FJ-2000 X-ray Individual Dose Apparatus Accumulated Dose Radiation Monitoring Personal Dosimeter

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: FJ-2000
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Packaging Details: Wooden box packaging
Delivery Time: 7-10 working days after receipt of your payment
Payment Terms: T/T,Western Union,Paypal
Supply Ability: 10 Sets/Month
Contact Now

FJ-2000 X-ray Individual Dose Apparatus Accumulated Dose Radiation Monitoring Personal Dosimeter

Description
Detector: GM Counting Tube,measuring X-ray And γ-ray Measuring Rate Response: <±20%(1usv/h~99.99msv/h)
Response Time: 3.6S-36S Energy Respone: <±30%(50KeV~1.3MeV)
Relative Inherent Error: <±20%(137Cs)
Highlight:

X-ray personal dosimeter with accumulated dose

,

Radiation monitoring dosimeter for individuals

,

FJ-2000 X-ray dose measurement device

FJ-2000 X-ray Individual Dose Apparatus Accumulated Dose Radiation Monitoring Personal Dosimeter


Specifications

x-ray Individuals dose apparatusAccumulated dose equivalent:Hp(10)0.0usv~99.99msv;Dose equivalent rate:Hp(10)0.1usv/h~99.99ms

 FJ-2000 x-ray Individuals dose apparatus

Technical parameter:

Detector GM counting tube,measuring X-ray and γ-ray
Measuring range

4 numbers LCD;

Accumulated dose equivalent:Hp(10)0.0usv~99.99msv;

  Dose equivalent rate:Hp(10)0.1usv/h~99.99msv/h;
Response time 3.6S-36S
Measuring rate response <±20%(1usv/h~99.99msv/h)
Energy respone <±30%(50KeV~1.3MeV)
Relative inherent error <±20%(137Cs)
Alarm function and alarm valve value Measuring rate and accumulated dose can preset alarm valve value in the measuring range.The fixed alarm valve value as follows:
1.Accumulated dose:Per increase 0.1usv,a short noise and light each time:≥50 usv,sound-light alarm5s,"ALARM"display.
2. Measuring rate:≥25usv/h,sound-light alarm is about 6s,"ALARM" display
3. Clogging alarm:when counting tube clogged,alarmcontinuously ,"ALARM" display, alarm sound intensity is about 80 decibels at the 30 cm
The battery undervoltage indicates when Battery voltage<2.7 +/- 0.05 Vs, the instrument displays undervoltage symbol"LOBAT".It stillcan work for more than 24 hours in the lower radiation place after undervoltage symbol appears.
Battery and consumption AAA type 1.5 V alkaline battery(7#battery),consumption<2mw,continuous service:720 hours.
Temperature characteristic <±10%- 10degree -- +50degree
Temperature features <±10% 95%RH(+35%);
Size,Weight 55(width)×92(length)×18(thickness),<75g,including battery<98g.



FJ-2000 X-ray Individual Dose Apparatus Accumulated Dose Radiation Monitoring Personal Dosimeter

FJ-2000 X-ray Individual Dose Apparatus Accumulated Dose Radiation Monitoring Personal Dosimeter
