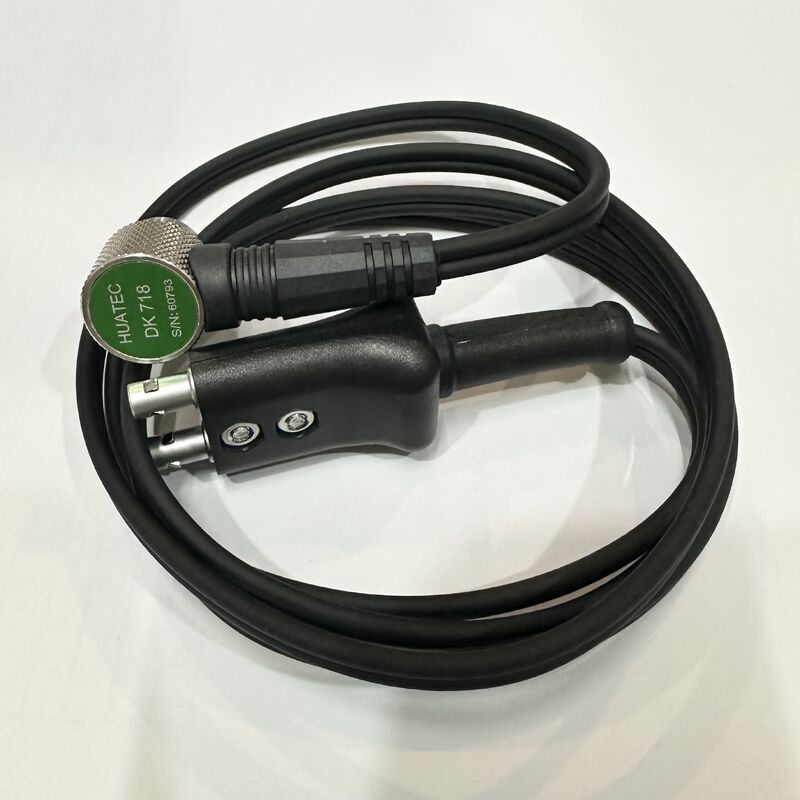

DK 718 Dual Element contact transducer Ultrasonic Thickness Probe with cable

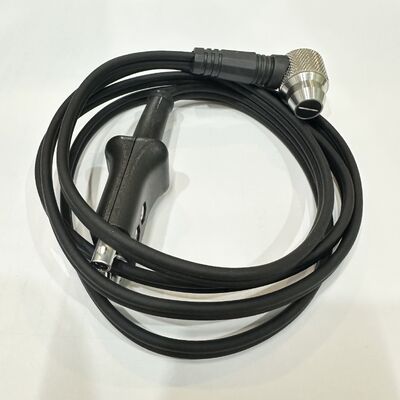

Large Image : DK 718 Dual Element contact transducer Ultrasonic Thickness Probe with cable

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	DK 718

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	Carton packing box
Delivery Time:	10-15 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	5sets/Month

Contact Now

DK 718 Dual Element contact transducer Ultrasonic Thickness Probe with cable

Description

Nominal Frequency:

7.5 MHz

Crystal Active Diameter:

6 Mm (0.187 Inch)

Cable:

Integrated Potted Cable (custom Length Available)

Connector:

K85 Twin Plug (standard For Danatronics UTG Series Thickness Gauge)

Highlight:

DK 718 ultrasonic thickness probe

dual element contact transducer

ultrasonic thickness probe with cable

DK 718 Dual Element contact transducer Ultrasonic Thickness Probe with cable

Main Features

Dual element design, optimized for thin wall thickness measurement
Support Echo-to-Echo function, measure substrate thickness without removing paint/coating
Small 6mm crystal, good performance on small diameter pipes & curved surfaces
Integrated shielded cable, low signal interference
Compatible with Danatronics UPG series, Echo FD and other mainstream ultrasonic thickness gauges

Item	Parameter
Model	DK 718
Product Type	Dual Element Ultrasonic Thickness Transducer
Nominal Frequency	7.5 MHz
Crystal Diameter	6 mm
Wave Mode	Longitudinal Wave
Measurement Mode	Pulse-Echo (T-E) & Echo-to-Echo (E-E, through-coating)
Minimum Measurable Thickness (Steel)	T-E mode: approx 0.6 mm E-E mode: ≥3.0 mm
Min. Convex Curvature Radius	≥6 mm
Operating Temperature	-10℃ ~ +60℃ (Standard Temperature Type, Non-high Temperature)
Wear Plate	Replaceable Hardened Wear-resistant Protective Layer
Cable	Integrated Shielded Cable
Connector	K85 Twin Plug
Applicable Materials	Carbon steel, stainless steel, aluminum, copper and other general metals
Features	Optimized for thin wall measurement; suitable for small diameter pipes & curved surfaces

Typical Application

Pipe wall corrosion thickness inspection
Thin metal plate thickness measurement
Tank vessel wall monitoring
Measure metal with intact paint coating (E-E mode)
