HG-5026 Vibration Calibrator Standard Sine Signal Vibration at Any Frequency from 1 to 1280 Hz can be Defined

HG-5026 Vibration Calibrator Standard Sine Signal Vibration at Any Frequency from 1 to 1280 Hz can be Defined
HG-5026 Vibration Calibrator Standard Sine Signal Vibration at Any Frequency from 1 to 1280 Hz can be Defined HG-5026 Vibration Calibrator Standard Sine Signal Vibration at Any Frequency from 1 to 1280 Hz can be Defined HG-5026 Vibration Calibrator Standard Sine Signal Vibration at Any Frequency from 1 to 1280 Hz can be Defined HG-5026 Vibration Calibrator Standard Sine Signal Vibration at Any Frequency from 1 to 1280 Hz can be Defined

Large Image :  HG-5026 Vibration Calibrator Standard Sine Signal Vibration at Any Frequency from 1 to 1280 Hz can be Defined

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO,CE
Model Number: HG-5026
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: in carton box
Delivery Time: 7-10 days after payment
Payment Terms: L/C,T/T,Western Union
Supply Ability: 50 sets per month
Contact Now

HG-5026 Vibration Calibrator Standard Sine Signal Vibration at Any Frequency from 1 to 1280 Hz can be Defined

Description
Product Name: Vibration Calibrator Frequency: From 1 To 1280 Hz
Probe: 5mm And 8mm Probes Range: 0~2.0mm
Display: 3 1/2 Digit Display For Vibration And Frequency Power: 220Vac (optional 110Vac)
Highlight:

HG-5026 vibration calibrator standard sine signal

,

vibration calibrator 1 to 1280 Hz

,

sine signal vibration testing equipment

HG-5026 Vibration Calibrator Standard Sine Signal Vibration at Any Frequency from 1 to 1280 Hz can be Defined

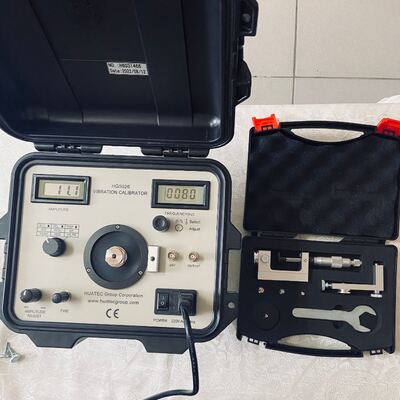

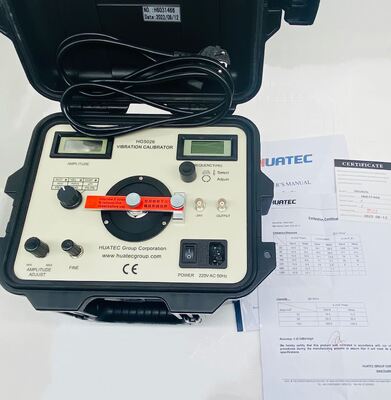

HG-5026 vibration calibrator can be used to calibrate vibration accelerometer, velocity and proximity transducer and also a vibration measuring instrument. Standard sine signal vibration at any frequency from 1 to 1280 Hz can be defined in the calibrator. The amplitude of the acceleration, velocity and displacement, can be defined through potentiometers and shown on digital displays. Either horizontal or vertical vibration can be generated. HG-5026 combines sine signal generator, power amplifier, standard transducer, vibration meter and a shaker in one and features a small volume, high accuracy and easy operation. It can be used either in laboratory or on site.


Specifications

Frequency: from 1 to 1280 Hz

Amplitude accuracy:

  Acceleration (@10m/s2 pk)      40Hz to 320Hz + 0.3dB + 1digit

                                                   20Hz to 640Hz + 0.5dB +1digit

Velocity (@20mm/sec rms)      40Hz to 320Hz +0.5dB +1digit

Displacement (@50μm pk-pk)      40Hz to 320Hz + 0.5dB + 1digit

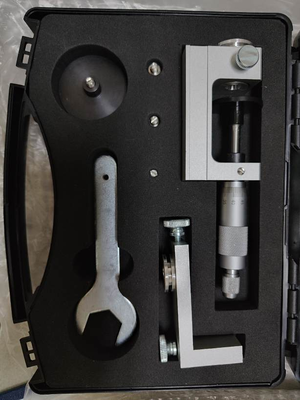

Proximity probe linearity calibration kits

  Probe:  5mm and 8mm probes  Range:  0~2.0mm

Display:  3 1/2 digit display for vibration and frequency

Maximum vibration amplitude & transducer weight


Wt



Freq

<100g

<250g

<500g

a(m/S2)

v(mm/S)

d(μm)

a(m/S2)

v(mm/S)

d(μm)

a(m/S2)

v(mm/S)

d(μm)

10Hz

2.5

28

1300

3.5

40

1800

4

45

2000

20Hz

15

85

1900

10

60

1300

5

28

640

40Hz

60

170

2000

35

100

1100

12

35

380

80Hz

100

141

800

40

60

320

14

20

110

160Hz

75

53

150

35

25

70

12

8.5

24

320Hz

50

18

25

30

10

15

10

3.5

5

640Hz

30

5

3

20

3.5

2

6

1

*

1280Hz

23

2

*

10

0.9

*

5

0.4

*

Size: 300 x250 x210(mm)                            Net Weight:  6 kg

Temperature: Operation:  0oC to 50 oC     Storage:  -20 oC to 70 oC

Power:  220Vac (optional 110Vac)

HG-5026 Vibration Calibrator Standard Sine Signal Vibration at Any Frequency from 1 to 1280 Hz can be Defined
