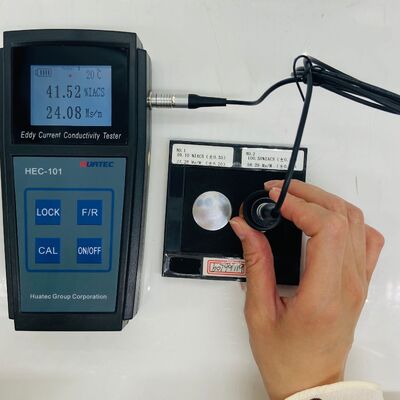

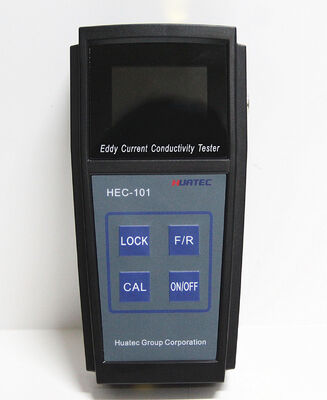

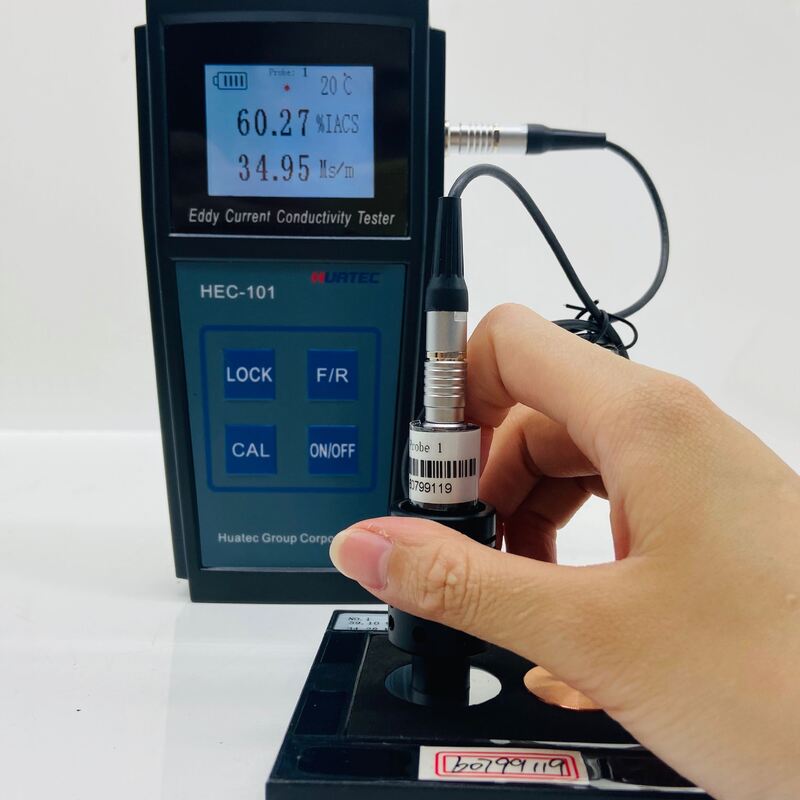

HEC-101 Digital Portable Eddy Current Electrical Conductivity Meter

HEC-101 Digital Portable Eddy Current Electrical Conductivity Meter
HEC-101 Digital Portable Eddy Current Electrical Conductivity Meter HEC-101 Digital Portable Eddy Current Electrical Conductivity Meter HEC-101 Digital Portable Eddy Current Electrical Conductivity Meter HEC-101 Digital Portable Eddy Current Electrical Conductivity Meter HEC-101 Digital Portable Eddy Current Electrical Conductivity Meter

Large Image :  HEC-101 Digital Portable Eddy Current Electrical Conductivity Meter

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO,CE
Model Number: HEC-101
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: in carton box
Delivery Time: 7-10 days after payment
Payment Terms: L/C,T/T,Western Union
Supply Ability: 50 sets per month
Contact Now

HEC-101 Digital Portable Eddy Current Electrical Conductivity Meter

Description
Product Name: Portable Eddy Current Conductivity Meter Measurement Technology: Eddy Current
Operating Frequency: 60KHz Display Screen: 240X320 Pixels TFT-LCD
L*B*H: 180*80*35 Mm Measuring Range: 1%IACS—105%IACS(0.58 MS/m -61MS/m)
Language: Chinese, English PC Communication: USB
Highlight:

portable eddy current conductivity meter

,

digital electrical conductivity tester

,

non-destructive testing equipment with warranty

HEC-101 Digital Portable Eddy Current Electrical Conductivity Meter

Application:

  • Absolute measurement of electrical conductivity of nearly all non-ferrous metals (Ti – Ag)
  • In the aerospace and automotive industry, monitor the process of heat treatment, the strength and hardness of aluminum alloy
  • Test the conductivity when the aluminum have not been oxidized
  • Measurement the purity of non-ferrous metals
  • Test the resistivity of conductive materials
  • Analyze thermal properties of materials.

HEC-101 Technical parameters

NAME CONTENT NOTE
Measurement technology Eddy current
Operating frequency 60KHz
Display screen Monochrome
L*B*H 180*76*35 mm
Instrument case Anti-intense impact, water-proofing polyester Match the fixed belt the leather protective covering
Weight 300g Contain battery
Power supply High capacity, high performance lithium polymer battery Not back light illuminate may keep on working about 100 hours.
Measuring range 1%IACS—105%IACS(0.58 MS/m -61MS/m)
Distinguishing rate 0.1% IACS
Measuring accuracy

5°C to 40°C

23%IACS :±0.5%IACS

100%IACS :±8%IACS
Temperature compensation 5°C～40°C Automatic compensation function
Normal work environment Relative humidity 0～95%
Operating temperature 5℃～40℃
Language Chinese

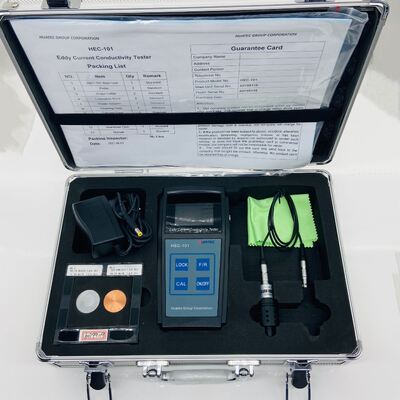

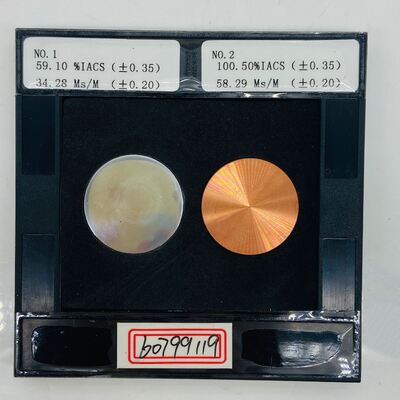

Fitting Portable box; probe; probe in cable; operating manual; conductivity standard sample; adapter Conductivity sample installs in the instrument, to verify and guarantee temperature compensation
Probe Diameter

12.7mm

(Applicable to minimum measuring area diameter at 60KHz is13mm.)

HEC-101 Digital Portable Eddy Current Electrical Conductivity Meter
