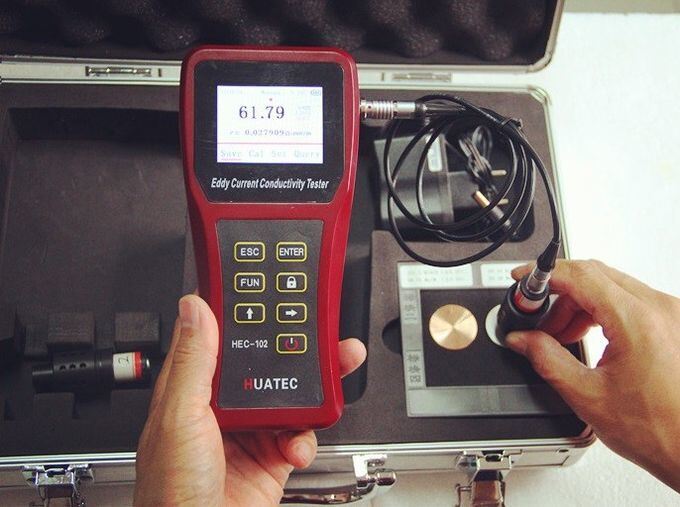

HEC-102 Digital Portable Eddy Current Electrical Conductivity Meter

NAME

CONTENT

NOTE

Measurement technology

Eddy current

Operating frequency

60KHz

Display screen

240X320 pixels TFT-LCD

4 kinds of background color

L*B*H

180*80*35 mm

Instrument case

Anti-intense impact,water-proofing polyester

Match the fixed belt the leather protective covering

Weight

245g

Contain battery

Power supply

High capacity, high performance lithium polymer battery

Not back light illuminate may keep on working about 100 hours.

Measuring range

1%IACS—105%IACS(0.58 MS/m -61MS/m)

Distinguishing rate

0.01% IACS

Probe compensated

0.05mm

Measuring accuracy

0°C to 50°C

23%IACS   :±0.25%IACS

100%IACS  :±0.5%IACS

Temperature compensation

0°C～50°C

Automatic compensation function

Normal work environment

Relative humidity

0～95%

Operating temperature

0℃～50℃

Language

Chinese, English

PC communication

USB

Fitting

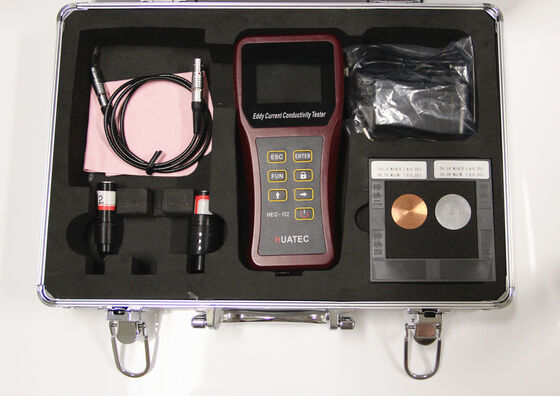

Portable box; probe; probe in cable; operating manual; conductivity standard sample; adapter

Conductivity sample installs in the instrument, to verify and guarantee temperature compensation

Probe  Diameter

 12.7mm

(Applicable to minimum measuring area diameter at 60KHz is13mm.)

Reading storage

Preserve 1000 survey data
