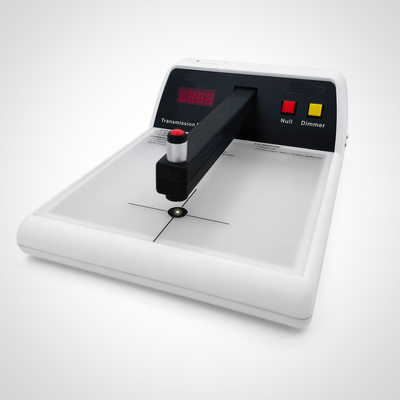

HUA-300 Density Densitometer LED Lighted Table Support Program Mode for Custom Calibration

HUA-300 Density Densitometer LED Lighted Table Support Program Mode for Custom Calibration
HUA-300 Density Densitometer LED Lighted Table Support Program Mode for Custom Calibration

Large Image :  HUA-300 Density Densitometer LED Lighted Table Support Program Mode for Custom Calibration

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO,CE
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: in carton box
Delivery Time: 7-10 days after payment
Supply Ability: 50 pcs per month
Contact Now

HUA-300 Density Densitometer LED Lighted Table Support Program Mode for Custom Calibration

Description
Product Name: Density Densitometer Density: 0.00-5.00 D With 2mm Aperature
Display: 4 Digit LED Accuracy: ±0.02 D
Resolution: 0.01D Custom Calibration Range: -0.19 ~ +0.19D (ProgramMode)
Highlight:

LED lighted density densitometer

,

programmable density meter for calibration

,

table support densitometer for testing

HUA-300 Density Densitometer LED Lighted Table Support Program Mode for Custom Calibration


Technical Specifications:

Density 0.00-5.00 D with 2mm aperature
Display 4 digit LED
Accuracy  ±0.02 D
Resolution 0.01D
Repeatability 0.01D
Custom calibration range -0.19 ~ +0.19D (ProgramMode)
Warm up time No need
Detector Silicon photodiode
Light source LED
Power supply 90V–264V AC / 47-63Hz
Dimensions 360mm x 260mm x 120mm
Weight 1.7Kg

0.00-4.00D with 1mm aperature
Probe Temperature compensated


Characteristic:
LED Lighted Table, 5 steps of luminance and 2 areas for selection
High spot luminance, simplifies location of image areas to measure
Program Mode for custom calibration
The densitometer will remain in proper alignment even though it is picked up by the arm
Calibrated to AGFA film strips
Measuring Range: 0 - 5 : 0 - 5.0D, High Accuracy±0.02 D
No warm-up time
Soft Rubber probe head to protect films
PC Utility available(AUTO Recalibration and Add Logs using USB connect to PC)

HUA-300 Density Densitometer LED Lighted Table Support Program Mode for Custom Calibration

HUA-300 Density Densitometer LED Lighted Table Support Program Mode for Custom Calibration

HUA-300 Density Densitometer LED Lighted Table Support Program Mode for Custom Calibration


Standard accessories:
Main unit: 1
Aperature:3 (1mm, 2mm[default],3mm)
1m USB Cable
Software DT Utility (English Version)
Instruction manual (English): 1
Test Report(English): 1
