HUATEC 0410-BA portable wireless bendable flat panel

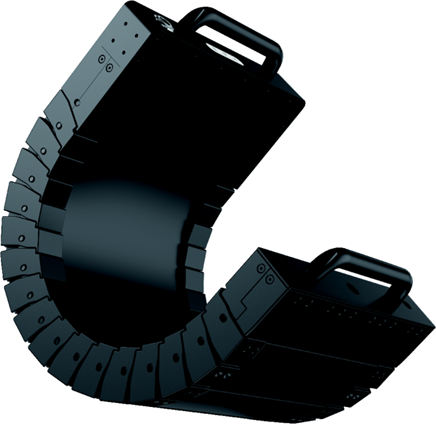

Large Image : HUATEC 0410-BA portable wireless bendable flat panel

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	ISO, CE, GOST
Model Number:	0410-BA

Contact Now

HUATEC 0410-BA portable wireless bendable flat panel

Description

Receptor Type:

TFT / PD Matrix Panel

Scintillator:

Gos

Pixel Pitch:

100 μm

Energy Range (kV):

40-450KV

Highlight:

portable wireless bendable flat panel

HUATEC 0410-BA flat panel

wireless non-destructive testing equipment

0410-BA

It is a portable wireless bendable flat panel detector based on amorphous silicon sensor, suitable for pipeline inspection, security check, power and other fields.

Main features

10 × 25 cm² bendable active area
100μm pixel pitch with 16-bit ADC for more image details
Robust wired and 5G wireless data interface
Up to 180 sec. X-ray exposure window

Environmental

Temperature -20-50°C (operating)；-20-50°C (storage)

Humidity 30-70% RH (non-condensing)

Ingress Protection IP67

Sensor

Receptor Type TFT / PD matrix panel

Scintillator Gos

Active Area 102.4 × 256mm

Effective pixel matrix 1024 × 2560

Pixel Pitch 100 μm

Max. Window time (s) ≤180

Frame Rate (fps) 1

AD conversion (bit) 16

Trigger Mode AED / Software

Energy range (kV) 40-450KV

Limited bending radius (mm) ≥80

ECU Data interface Wired: GigE

WIFI 802.11, 2.4G/5G

Dimension 155 × 364 × 28(FPD)

144 × 118 × 30.5(ECU)

Weight ≤2.5(Only FPD)≤3.5(With ECU)

Power Supply & Battery

Adapter In AC 100-240V,50-60Hz

Adapter Out DC 24V,2.7A

Power Dissipation <16 W

Battery working time 6.5h

Charging time 4.5h
