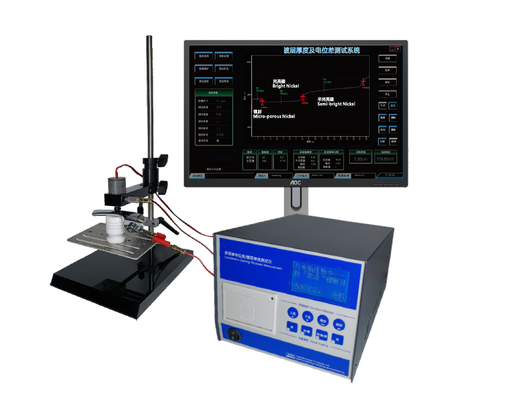

TG-100G Electrolytic Coating Thickness Gauge Multi-layer Nickel Potential Difference Testing Machine

TG-100G Electrolytic Coating Thickness Gauge Multi-layer Nickel Potential Difference Testing Machine
TG-100G Electrolytic Coating Thickness Gauge Multi-layer Nickel Potential Difference Testing Machine TG-100G Electrolytic Coating Thickness Gauge Multi-layer Nickel Potential Difference Testing Machine

Large Image :  TG-100G Electrolytic Coating Thickness Gauge Multi-layer Nickel Potential Difference Testing Machine

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: TG-100G
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD2245-USD2535/SET
Packaging Details: Outer carton packaging
Delivery Time: 7-10 working days after receipt of your payment
Payment Terms: T/T,Western Union,Paypal
Supply Ability: 10 Sets/Month
Contact Now

TG-100G Electrolytic Coating Thickness Gauge Multi-layer Nickel Potential Difference Testing Machine

Description
Compression Stroke: 2.50mm Maximum Load: 980g
Pressure Load: 50g Head Shape And Size: Ball R12.70
Highlight:

Electrolytic Coating Thickness Gauge

,

Multi-layer Nickel Testing Machine

,

Potential Difference Thickness Gauge

TG-100G Electrolytic Coating Thickness Gauge Multi-layer Nickel Potential Difference Testing Machine


TG-100G is more focused on the automobile, motorcycle, and sanitary ware industries, because these industries will use the potential difference function. And neodymium iron boron industry, to solve the test problems of the underlying nickel. Automobiles such as: signs, car door locks, car handles, car interior parts, motorcycles such as mufflers, motorcycle, brackets, sanitary wares such as: mixing water valves, towel racks, neodymium Iron-boron: mainly nickel-copper-nickel electroplating.


Technifical specification

Plating type Single metal pating layer Composite multiple plating layer Alloy plating layer Multi-layer nickel
Cr,Ni,Cu, Zn,Sn,Ag, Au,Cd,Co, Pb etc. Cr/Ni/Cu etc. NiP,ZnNi, SZn,SPb etc. The thickness of each layer of multilayer nickel and the potential difference between nickel layers
Substrate Metal Non-metal
Steel,copper,copper alloys, die-cast zinc,aluminum etc Plastic,neodymium iron boron,ceramics etc
Measuring range 0.03～300μm
The best use range 0.03～50um,Over 50um,the error will gradually become larger
Resolution 0.01um
Repeatability ≤5%
Indication error ≤10%
Potential range 0～3000mv
Potential accuracy 0.01mv
Probe size Standard:φ2.4,φ1.7(unit:mm)
Optional:φ1.2,φ1.0,φ0.8(unit:mm)
Wire test Diameter 0.050～4mm
multi-layer coating thickness on the cylindrical surface, without conversion, direct reading
Test stand Standard:STD07
Optional:STD16,STD19,STD-W wire test stand
Calibration Factory calibration
calibrate a single coating with calibration foils or uniformly calibrate
Stop measurement Automatic judgment
Stand-alone use When not measuring the potential difference
Print A laser or inkjet printer can be purchased separately to print A4 format test results, Excel format, content can be customized
In stand-alone use, a thermal printer can be used to print the test results
Print Content Plating type, single measurement value, average value, maximum value, minimum value, standard deviation, coefficient of variation, time
Thickness-potential curve

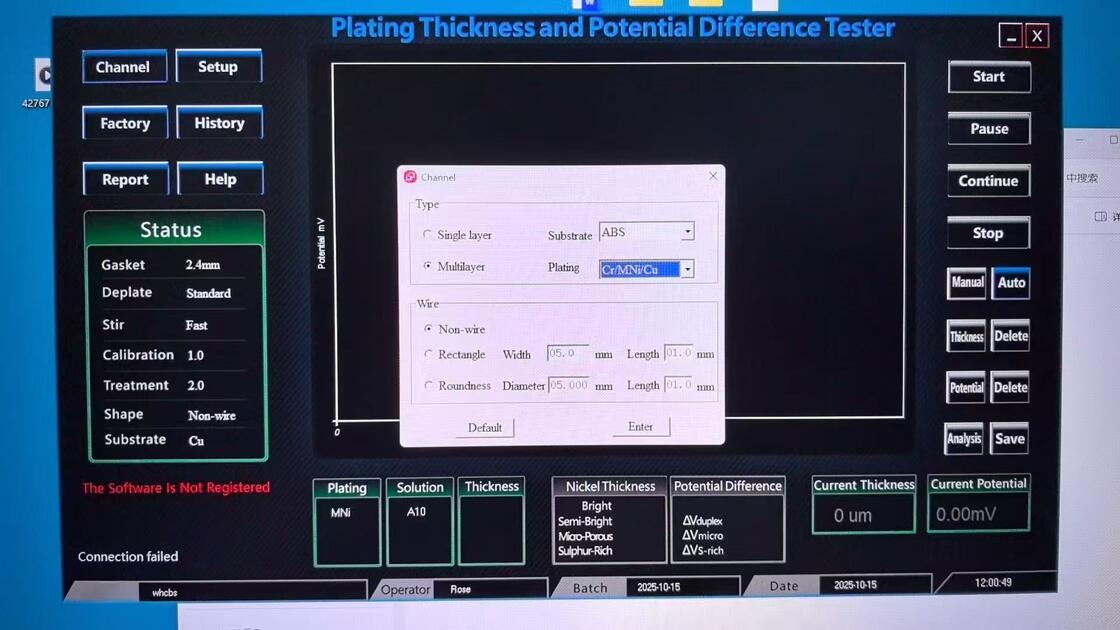

Display mode Online use:PC Screen display
Stand-alone use:126*64 dot LCD screen
Data stroage PC Database
Test Hot Key Stand-aone use,you can customize the hot key for single plating or multiple plating/substrate combination
Curve Analysis can be displayed on the same screen and modified at will
Pause test For thick coatings, you can pause at any time and continue the test after changing the electrolyte
Data check multiple query methods
Operating system Win dows XP,win7,win10
Software upgrade New products in December 2019, continuous upgrade
Power Supply AC 220V, AC 110V can be customized
Host Size 200*255*161(mm)


TG-100G Electrolytic Coating Thickness Gauge Multi-layer Nickel Potential Difference Testing Machine

TG-100G Electrolytic Coating Thickness Gauge Multi-layer Nickel Potential Difference Testing MachineTG-100G Electrolytic Coating Thickness Gauge Multi-layer Nickel Potential Difference Testing MachineTG-100G Electrolytic Coating Thickness Gauge Multi-layer Nickel Potential Difference Testing MachineTG-100G Electrolytic Coating Thickness Gauge Multi-layer Nickel Potential Difference Testing Machine
