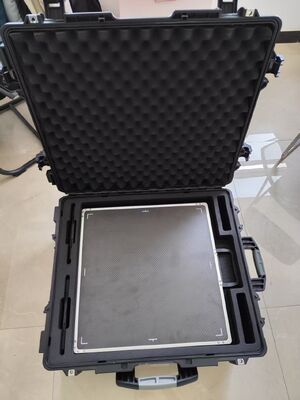

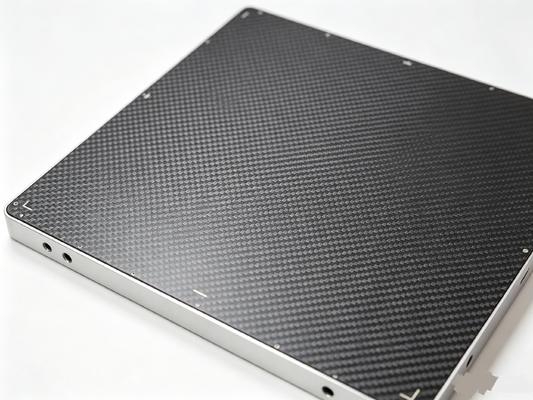

H3025HWN-EG High Dynamic Range X-ray Flat Panel Detector 40-370KV Energy Range IP54/IP67 Industrial Non-destructive Testing Equipment

H3025HWN-EG High Dynamic Range X-ray Flat Panel Detector 40-370KV Energy Range IP54/IP67 Industrial Non-destructive Testing Equipment
H3025HWN-EG High Dynamic Range X-ray Flat Panel Detector 40-370KV Energy Range IP54/IP67 Industrial Non-destructive Testing Equipment H3025HWN-EG High Dynamic Range X-ray Flat Panel Detector 40-370KV Energy Range IP54/IP67 Industrial Non-destructive Testing Equipment

Large Image :  H3025HWN-EG High Dynamic Range X-ray Flat Panel Detector 40-370KV Energy Range IP54/IP67 Industrial Non-destructive Testing Equipment

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: H3025HWN-EG
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: Carton packing box
Delivery Time: 10-15 working days after receipt of your payment
Payment Terms: T/T,Paypal
Supply Ability: 5sets/Month
Contact Now

H3025HWN-EG High Dynamic Range X-ray Flat Panel Detector 40-370KV Energy Range IP54/IP67 Industrial Non-destructive Testing Equipment

Description
Active Area: 304 X 254 Mm Pixel Pitch: 100 μm
Resolution: 3072 X 2560 Energy Range: 40-370 KV
Adapter In: AC 100-240V,50-60Hz
Highlight:

H3025HWN-EG X-ray flat panel detector

,

High dynamic range non-destructive testing equipment

,

IP54 IP67 industrial X-ray detector

H3025HWN-EG High Dynamic Range X-ray Flat Panel Detector 40-370KV Energy Range IP54/IP67 Industrial Non-destructive Testing Equipment


H3025HWN-EG is the first domestic battery replaceable, and the protection level of IP67 amorphous silicon detector, suitable for pipeline detection, security and other fields.



Electricals and interface
A/D Conversion                      16 bits

Data Interface                       Gigabit Ethernet/802.11ac 5G

Acquire Time                     wired: 1s; wireless: 3s

Exposure Control               Software

Max exposure time               180s

Inbuilt memory                      4 GB DDR4, 8 GB SD card



Mechanical
Dimension                             333.6×322×18.0 mm

Weight                                   3.5kg

Material                       Aluminum and magnesium alloys

Front Panel              Carbon fiber

The narrowest side distance ≤5mm

Enviromental

Temperature                -20-50°C (operating)；-20-50°C (storage)

Humidity                      30-70% RH (non-condensing)

Ingress Protection        IP54 can be updated to IP67


Sensor
Receptor Type a-Si

Scintillator Gos / CsI:TI

Active Area 350 x 430 mm

Resolution 2560 x 3072

Pixel Pitch 139 μm


Power Supply & Battery

Adapter In AC 100-240V,50-60Hz

Adapter Out DC 24V,2.7A

Power Dissipation <20 W


Image Quality
Limiting Resolution 3.5 LP/mm

Energy Range 40-160 KV

Dynamic Range ≥84 dB

Sensitivity ≥0.54 LSB/nGy

Ghos <1% 1st frame

DQE 42% @(1 LP/mm)

28% @(2 LP/mm)

MTF 68% @(1 LP/mm)

38% @(2 LP/mm)

20% @(3 LP/mm)

H3025HWN-EG High Dynamic Range X-ray Flat Panel Detector 40-370KV Energy Range IP54/IP67 Industrial Non-destructive Testing Equipment

H3025HWN-EG High Dynamic Range X-ray Flat Panel Detector 40-370KV Energy Range IP54/IP67 Industrial Non-destructive Testing Equipment

H3025HWN-EG High Dynamic Range X-ray Flat Panel Detector 40-370KV Energy Range IP54/IP67 Industrial Non-destructive Testing Equipment
