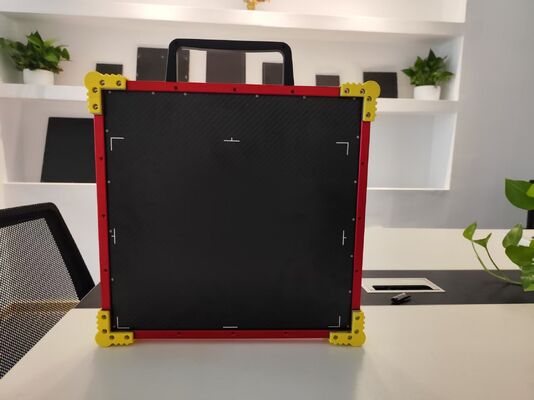

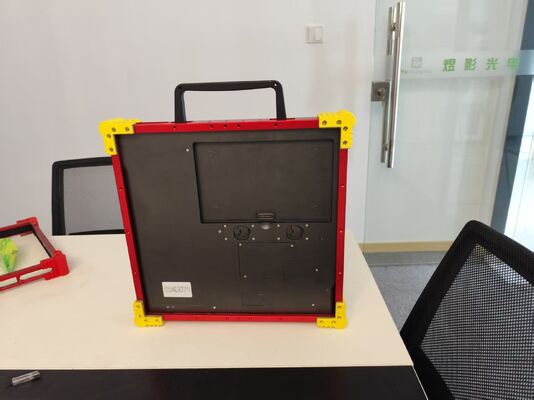

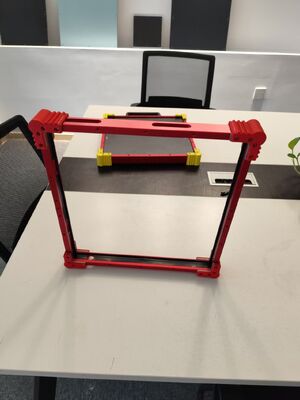

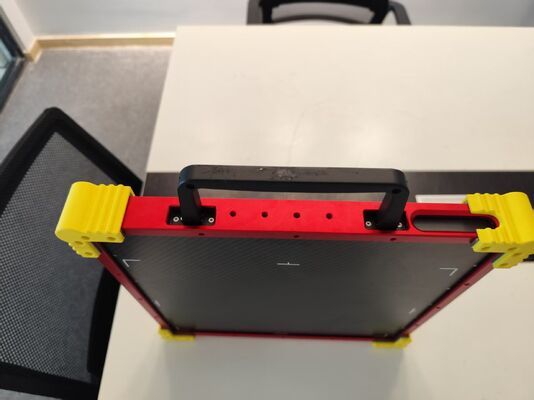

Lightweight Wireless Detector Based on Amorphous Silicon(a-Si) Suitable for DR Tablet and NDT

Lightweight Wireless Detector Based on Amorphous Silicon(a-Si) Suitable for DR Tablet and NDT

Electricals and interface
A/D Conversion            16 bits

Data Interface              Gigabit Ethernet/802.11ac(only 5G)

Acquire Time                wired: 1.5s;  wireless: 3-5s

Exposure Control          Software/Sync/AED
Memory                       4 GB DDR4, 8 GB SD card

Mechanical
Dimension                    460×460×15 mm
Weight                         3.8kg (without battery)

Material                       Aluminum andmagnesium alloys

Front Panel              Carbon fiber

Enviromental

Temperature                10-35°C (operating)；-10~50°C (storage)

Humidity                      30-70% RH (non-condensing)

Ingress Protection        IP51 (Customized to IP67)

Sensor
Receptor Type                        a-Si

Scintillator                             Gos / CsI:TI

Active Area                                     430 x 430 mm

Resolution                    4304 x 4304

Pixel Pitch                              100 μm

Power Supply & Battery

Adapter In                    AC 100-240V,50-60Hz

Adapter Out                          DC 24V,2.7A

Power Dissipation                 <20 W

Standby Time                        4.5h

Recharge Time                   4.5 h

Image Quality
Limiting Resolution               5 LP/mm

Energy Range                        40-160 KV

Dynamic Range                     ≥76 dB

Sensitivity                            ≥0.36LSB/nGy

Ghos                                      <1% 1st frame

DQE           65% @(1 LP/mm)

                                              40% @(2 LP/mm)

                                              25% @(3LP/mm)

MTF           60% @(1 LP/mm)

                                              35% @(2 LP/mm)

                                                        20% @(3 LP/mm)
