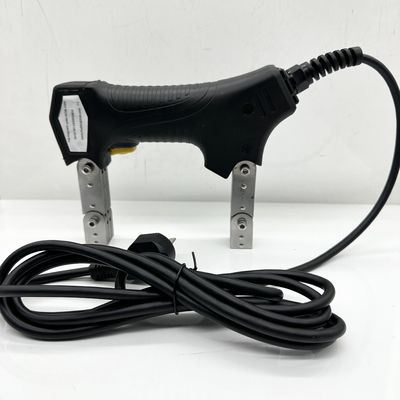

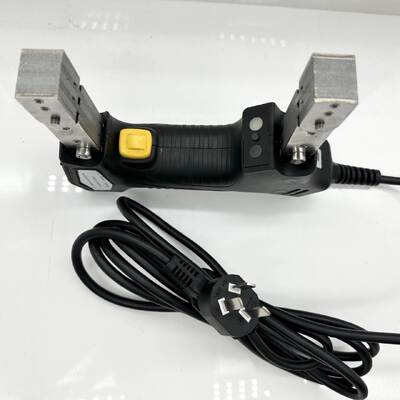

UV Lamp & White Lamp Handy AC Yoke with AC ≥68.6N Lifting Force, A1 Type Standard Test Film Sensitivity, and 60mm-205mm Adjustable Probe Pole Distance

Large Image : UV Lamp & White Lamp Handy AC Yoke with AC ≥68.6N Lifting Force, A1 Type Standard Test Film Sensitivity, and 60mm-205mm Adjustable Probe Pole Distance

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	ISO, CE, GOST
Model Number:	HCDX-220S

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS

Contact Now

UV Lamp & White Lamp Handy AC Yoke with AC ≥68.6N Lifting Force, A1 Type Standard Test Film Sensitivity, and 60mm-205mm Adjustable Probe Pole Distance

Description

Lifting Force:

AC ≥68.6N (7kg)

Highlight:

AC ≥68.6N Lifting Force AC Yoke

A1 Type Standard Test Film Sensitivity Magnetic Yoke Flaw Detector

60mm-205mm Adjustable Probe Pole Distance Handy AC Yoke

UV lamp & White lamp Handy AC Yoke HCDX-220S

Product Overview

The HCDX-220S Handy AC Yoke with UV and White lamp is designed for comprehensive magnetic particle inspection applications, offering dual lighting capabilities for both fluorescent and ordinary magnetic particle detection.

Applications

Surface and subsurface testing for field testing
Surface and subsurface for spot inspections
Surface and subsurface for in-service inspections
Surface and subsurface for demanding environments
Surface and subsurface for weld inspection

Functional Characteristics

AC working mode - probe connects directly to AC220V power supply
Automatic lamp illumination during magnetization with UV/white light switching
High sensitivity and strong lifting force for efficient flaw detection
Duty cycle: 5 minutes on, 1 minute off
Sealed, durable construction for reliable performance

Standards Compliance

ASME BPVC
ASTM E709
ASTM E1444
ASTM E3024
ISO 9934-3

Technical Parameters

Sensitivity	A1 type standard test film 15/100 grooves display clearly (exceeds national standard)
Lifting Force	AC ≥68.6N (7kg)
Probe Pole Distance	60mm-205mm (adjustable spacing range)
Probe Light Source	White light illuminance ≥2000Lux; UV lamp irradiance ≥5000μw/cm²
Probe Dimensions	200mm × 48mm × 158mm
Probe Weight	2.0kg

Standard Configuration

D type yoke 1 set (including 3 meters probe line)
Auxiliary tools 1 set
User manual, warranty card, certificate
Instrument box
