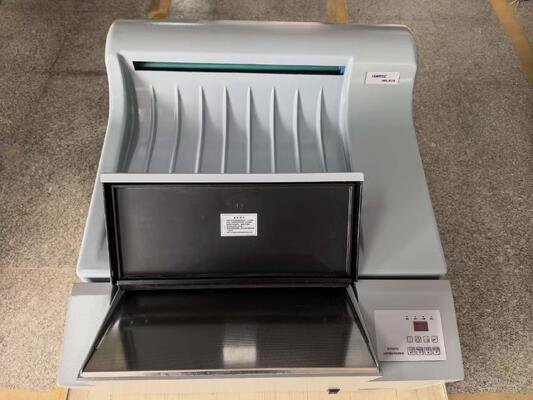

HDL-P17B Automatic X-ray Film Processor and Accessories

HDL-P17B Automatic X-ray Film Processor and Accessories
HDL-P17B Automatic X-ray Film Processor and Accessories HDL-P17B Automatic X-ray Film Processor and Accessories HDL-P17B Automatic X-ray Film Processor and Accessories

Large Image :  HDL-P17B Automatic X-ray Film Processor and Accessories

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO,CE
Model Number: HDL-17B
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: wooden box
Delivery Time: 7~10 working days after payment
Payment Terms: L/C,T/T
Supply Ability: 50pcs per month
Contact Now

HDL-P17B Automatic X-ray Film Processor and Accessories

Description
Product Name: Automatic X-ray Film Processor Film Size: Min. 60×100 Mm; Max. 430×2000 Mm
Developing Time: 90–210 S Processing Capacity: 12–25 Pieces/hour (356×432 Mm Film) 30–120 Pieces/hour (80×300 Mm Film)
Tank Capacity: Developing 8.5 L, Fixing 8.5 L, Washing 8.5 L  Water Consumption: 2 L/min During Processing
Highlight:

Automatic X-ray film processor

,

X-ray film processor with accessories

,

Non-destructive testing film processor

HDL-P17B Automatic X-ray Film Processor and Accessories


Outstanding Performance:
Densely arranged roller assemblies ensure smooth conveyance of films of all sizes.
Timed automatic operation reduces crystal deposition on roller surfaces and effectively activates the liquid circulation system.
Direction-adjustable film bridge completely eliminates film jamming.
Roller assemblies with adjustable spacing prevent indentations on films with different base materials.
Special tapered drying air duct system delivers uniform airflow on both sides of films to avoid water stains.
Microcomputer program control ensures stable and reliable performance.
Large digital display panel with concise, elegant appearance integrates all functions. You can retrieve, view and adjust all data with a simple tap; all parameters are clearly displayed for easy operation.


Stainless steel film inlet plate: prevents film scratches
Robust and durable machine body; densely arranged roller assemblies are compatible with all types of industrial radiographic films.


Technical Data

Film Size Min. 60×100 mm; Max. 430×2000 mm
Developing Time 90–210 s (Feed films one by one with approx. 30 s interval)
Processing Cycle 6–14 min, adjustable at 1-minute intervals
Processing Capacity 12–25 pieces/hour (356×432 mm film) 30–120 pieces/hour (80×300 mm film)
Chemical Temperature Developing: 20–40 °C; Fixing: 20–40 °C; Drying: 20–70 °C
Washing Water Temperature Ambient temperature (5–25 °C)
Replenishment Volume Auto / Manual mode, 50–500 ml per square meter of film
Tank Capacity Developing 8.5 L, Fixing 8.5 L, Washing 8.5 L
Water Consumption 2 L/min during processing
Net Weight 56 kg
Power Supply 220V / 50Hz / 10A
Overall Dimension L760 × W700 × H420 mm (H1020 mm with stand)

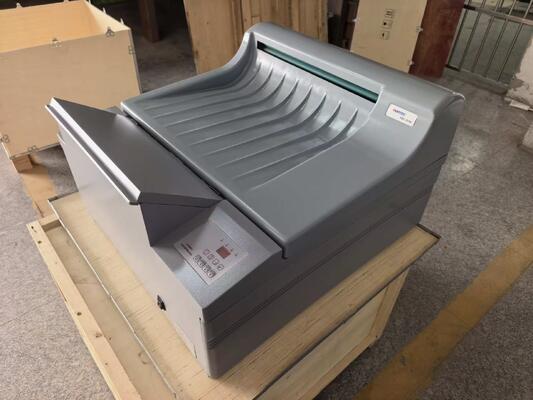

HDL-P17B Automatic X-ray Film Processor and Accessories

HDL-P17B Automatic X-ray Film Processor and Accessories

HDL-P17B Automatic X-ray Film Processor and Accessories
