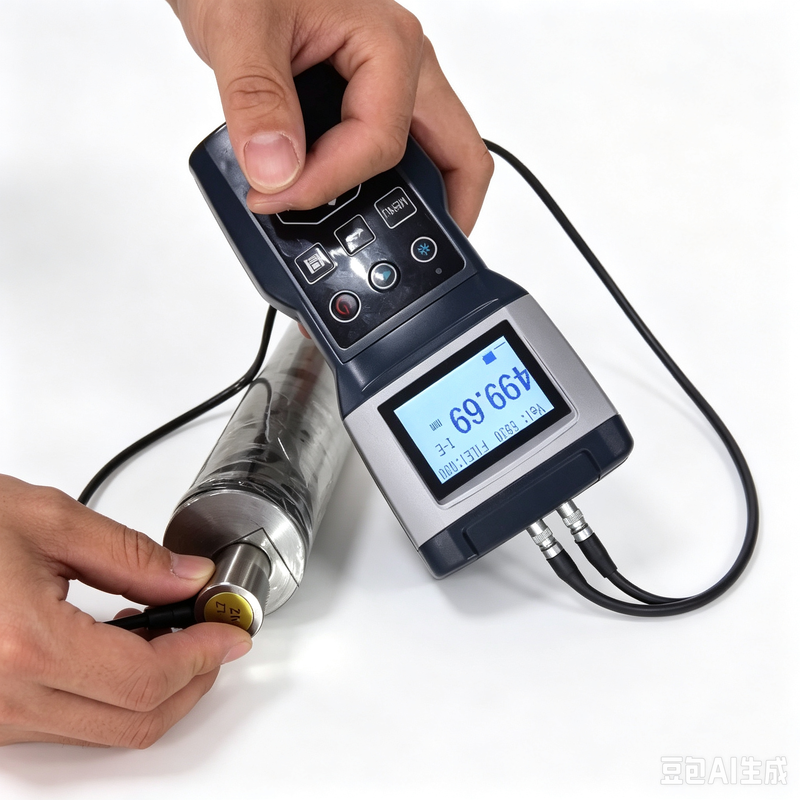

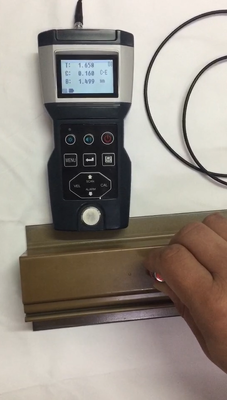

High Precision Ultrasonic Thickness Gauge with Thru-Paint Measurement and Bluetooth Interface

TG-3250H is a high precision digital ultrasonic thickness gauge. Based on the same operating principles as SONAR, it is capable of measuring the thickness of various materials with accuracy as high as 0.001 millimeters, or 0.0001 inches. It is adapted to measure the thickness of good conductors for ultrasonic waves, such as metal (steel, cast iron, aluminum, copper), plastic, ceramic, glass, glass fiber and more.

It can test coating thickness and basic material thickness simultaneously.

• High precision timing chip & V-Path model used for precision measurement
• Real-time Temperature Compensation Technic supporting one-time probe calibration for long term usage
• Thru-paint measurement (Standard Version), simultaneously measure coatings and material thicknesses (Advanced Version)
• Bluetooth & Mini-USB interface for printing & communication, host software upgradable

• Support Pulse-Echo, Echo-Echo, Interface-Echo, E-C coating thickness testing, C-E coating and basic material testing and AUTO 6 kinds measurement mode, gain adjustable
• Scan mode, min/max capture mode, differential mode & alarm mode support
• Sound velocity calibration by known thickness
• Storage capacity of 1000 measurements with thickness, velocity, time, etc.
• Communicate with PC or smart phones, support online measurement & command control (OC version)
