HMLF-2020 Tank Bottom Plate Magnetic Leakage Scanner with 192 MLF Hall Coil Probes 64 LMA Hall Probes and 300mm Scan Width

HMLF-2020 Tank Bottom Plate Magnetic Leakage Scanner with 192 MLF Hall Coil Probes 64 LMA Hall Probes and 300mm Scan Width
HMLF-2020 Tank Bottom Plate Magnetic Leakage Scanner with 192 MLF Hall Coil Probes 64 LMA Hall Probes and 300mm Scan Width HMLF-2020 Tank Bottom Plate Magnetic Leakage Scanner with 192 MLF Hall Coil Probes 64 LMA Hall Probes and 300mm Scan Width HMLF-2020 Tank Bottom Plate Magnetic Leakage Scanner with 192 MLF Hall Coil Probes 64 LMA Hall Probes and 300mm Scan Width

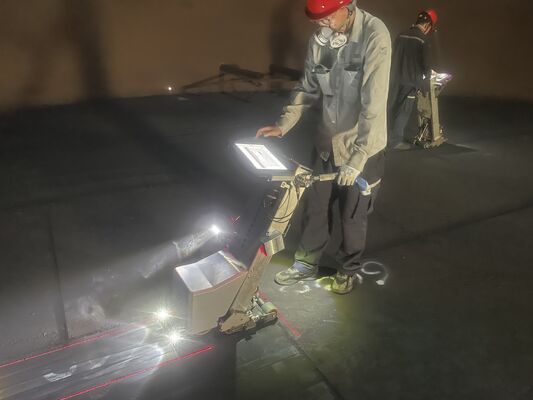

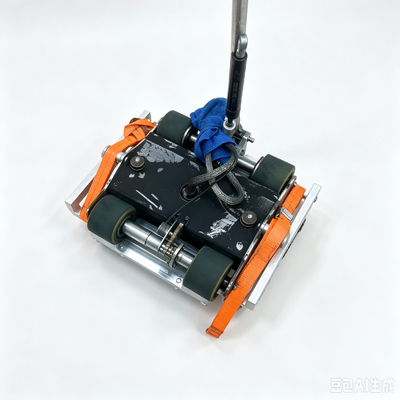

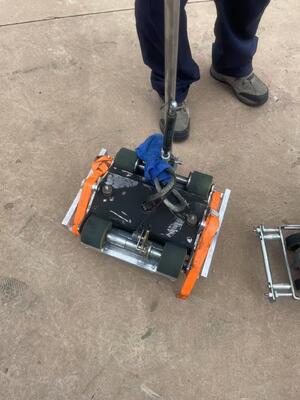

Large Image :  HMLF-2020 Tank Bottom Plate Magnetic Leakage Scanner with 192 MLF Hall Coil Probes 64 LMA Hall Probes and 300mm Scan Width

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HMLF-2020
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Contact Now

HMLF-2020 Tank Bottom Plate Magnetic Leakage Scanner with 192 MLF Hall Coil Probes 64 LMA Hall Probes and 300mm Scan Width

Description
Principle: Leakage Principle Driving Method: DC Motor Drive
Scan Speed: 0.5 M / S (fixed)
Highlight:

192 MLF Hall coil probes Tank Bottom Plate Magnetic Leakage Scanner

,

64 LMA Hall probes Magnetic Flux Leakage Scanner

,

300mm scan width Corrosion Detection Scanner

HMLF-2020 Tank Bottom Plate Magnetic Leakage Scanner
The HMLF-2020 tank bottom corrosion magnetic flux leakage scanner is one of the world's most advanced tank bottom corrosion detection systems, integrating multiple technologies. It is primarily used for magnetic flux leakage detection of tank bottom corrosion in the petroleum and chemical industries. The system features 192 MLF Hall coil probes and 64 LMA Hall probes, enabling it to detect corrosion defects in the tank bottom and determine which surface (upper or lower) the defect is located on. Combining these two detection results greatly aids in analyzing the causes of corrosion, corrosion prevention, and risk assessment.
Key Technical Features
  • Split design with separable main unit and magnet parts for easy disassembly and convenient transportation
  • 256 sensors total
  • 300mm scan width
  • 500mm detection speed
  • Can distinguish between defects on upper and lower surfaces
  • Forward-facing high and low beam headlights
  • Defect location illumination with laser indicator line
  • Flight flashing light indicating device placement location
  • Dual laser indicator lines for equipment forward trajectory
  • Mobile phone charging port
  • Tablet charging function
  • Optional 54Ah high-capacity lithium battery providing over 8 hours of battery life
  • 12-inch rugged touchscreen computer, lightweight and easy to carry
  • Real-time data acquisition and analysis
  • German-made precision mechanical encoder with 3mm length error
  • German-imported motor for smooth operation and reliable quality
  • Windows 10/11 systems automatically draw CAD graphics of entire tank bottom plate, locate corroded areas, and use color coding for corrosion degree
  • Thickness measurement, vacuum chamber and magnetic particle testing can be added to tank bottom plate graphics and comprehensively displayed in reports
  • Comparison and overlay function to compare current results with previous detections
  • Patching design and statistical functions for tank maintenance support
  • Hydraulic rods allow easy lifting of magnetic bridge off base plate
Optional Features
  • Magnet removal and storage dock to prevent magnets from adhering to ferromagnetic items
  • Docking station with four heavy-duty rubber wheels for easy pulling
  • Main unit cart for moving disassembled main unit without carrying
  • Anti-collision switch to prevent collisions with obstacles
  • Adjustable single viewing angle for tablet computers
  • Adjustable computer-controlled and rotating 2D viewing angle adjustment
  • Straight handlebar operation control
  • Motorcycle handlebar control
  • Wired operation control
  • Wireless control functionality
  • Brake function
Reporting Software Features
  • Automated CAD detection and drawing
  • Patch design function
  • Test report generation function
  • Defect shape and size analysis
  • Defects detectable by visual inspection, ultrasound, vacuum chamber, and magnetic particle testing
  • Direct listing of number and location of defects for each board
Technical Parameters
Parameter Specification
Principle Magnetic Leakage Principle
Number of Probes 192 pcs MLF Hall coil probes and 64 pcs LMA Hall probes
Scan Width 300mm
Maximum Scan Length 30 meters
Positioning Accuracy ±3mm or ±0.04% (8-meter scanning length)
Driving Method DC motor drive
Scan Speed 0.5 m/s (fixed)
Detection Efficiency 9 square meters/minute
Thickness Range Drawing mode: Maximum 12.5mm
Automatic stop mode: 16mm
Transparent Coating Properties Strong penetrating power; can penetrate non-ferromagnetic coatings up to 6mm thick
Maximum Sensitivity 20% corrosion of tank bottom plate thickness
Defect Accuracy ±5% of the assessment equivalent
Minimal Defect Detection Capability Φ2mm hole, with a depth of 50% of the plate thickness
Upper and Lower Surface Defects Can determine whether corrosion is on surface or underside of base plate
Data Storage Computer hard drive or USB external hard drive
Real-time Analysis View defect corrosion size, specific X/Y coordinates, and defect surface location
Power Supply 12V DC rechargeable battery with 220V operating voltage smart charger
Weight Approximately 45 kg
Software Real-time data acquisition and analysis software, analysis reporting software
Basic Configuration
  1. Detachable main unit: 1 unit
  2. 12-inch rugged touchscreen tablet: 1 unit
  3. Testing and analysis software: 1 set
  4. Graphical report software: 1 set
  5. Battery charger: 1 set
  6. Computer mounting bracket: 1 set
  7. Computer mounting bolts: 2 pcs
  8. Comparison test plates: one each of 6mm, 8mm, 10mm and 12mm
  9. Transport boxes: 3 pcs
Optional Configuration
  • Magnet removal and storage dock
  • Docking station with four heavy-duty rubber wheels
  • Main unit cart
  • Anti-collision switch
  • Adjustable single viewing angle for tablet computers
  • Adjustable computer-controlled and rotating 2D viewing angle adjustment
  • Straight handlebar operation control
  • Motorcycle handlebar control
  • Wired operation control
  • Wireless control functionality
  • Brake function
