SRT-6630 Color Display High Precision Portable Surface Roughness Tester with Bluetooth Connection

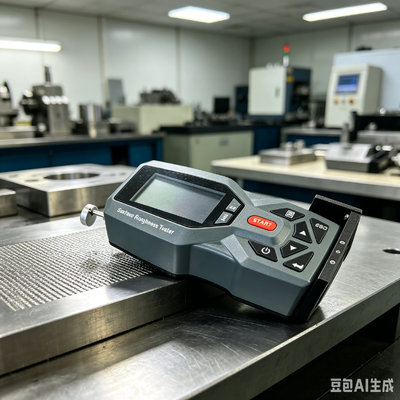

Large Image : SRT-6630 Color Display High Precision Portable Surface Roughness Tester with Bluetooth Connection

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	ISO, CE, GOST
Model Number:	SRT-6630

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS

Contact Now

SRT-6630 Color Display High Precision Portable Surface Roughness Tester with Bluetooth Connection

Description

Resolution Ratio:

0.001μm/±20μm

Highlight:

Color Display Surface Roughness Tester

High Precision Portable Roughness Instrument

Bluetooth Connection Non Destructive Testing Equipment

SRT-6630 Color Display Surface Roughness Tester

The SRT-6630 is a portable, high-precision roughness instrument featuring real-time waveform display and Bluetooth connectivity. Designed for ease of operation, it offers comprehensive, fast measurement with high accuracy and excellent repeatability. The instrument fully implements the latest international standards for surface roughness parameters.

Key Features

Compact composite structure with electromechanical integration design
DSP chip control and data processing for high speed and low power consumption
Automatic range switching with live display
Graphical measurement display with on-site verification capability
TYPE C and Mini USB interfaces for communication and automatic control
Adjustable display orientation for left or right-hand operation
Upper and lower limit alarm settings
Single or multiple record printing capability
Compliance with multiple international standards
Comprehensive graphical parameter display
Built-in lithium-ion rechargeable battery with 20-hour continuous operation
Large capacity data storage for 100 raw data items and measured profiles
Real-time clock for data recording and storage
Automatic sleep and shutdown power-saving features
Motor protection against sticking
Chinese/English language support
Customizable parameter printing
High-precision glass calibration sample with long service life

Optional accessories: curved sensor, small holes sensor, measurement stand, extension rod, printer

Technical Specifications

Parameter	Specification
Model	SRT-6630
Measurement Range (Z axis)	160μm
Measurement Range (X axis)	17.5mm / 0.69"
Display	2.4-inch IPS / 320×240 dot matrix
Resolution	0.001μm/±20μm 0.004μm/±80μm
Measured Parameters	Ra, Rz, Rq, Rt, Rmax, Rc, Rp, Rv, R3z, R3y, Rz(JIS), Ry(JIS), Rs, Rsk, Rku, Rsm, Rmr, RPc, Rk, Rpk, Rvk, Mr1, Mr2
Standards	ISO4287, ANSI B46.1, DIN4768, JIS B601
Graphics	Primary profile, Roughness profile, load curves
Filters	RC, PC-RC, Gauss, D-P
Sampling Length (lr)	0.25, 0.8, 2.5mm
Assessment Length (ln)	ln = lr × n (n=1~5)
Sensor Principle	Displacement differential inductance
Stylus	Natural Diamond, 90°/60° angle, 2μm/5μm tip radius
Stylus Force	0.75mN/4mN
Skid Material	Hard alloy, longitudinal radius 40mm
Traversing Speed	lr=0.25: Vt=0.135mm/s lr=0.8: Vt=0.5mm/s lr=2.5: Vt=1mm/s Return: Vt=1mm/s
Accuracy	±(5nm + 0.1A) where A is Ra of calibration test block
Repeatability	≤ 3%
Residual Profile	≤ 0.010μm
Power Supply	Built-in 3.7V Lithium-ion battery Charger: DC5V, 800mA/3hour
Dimensions (L×W×H)	155×63.5×46mm
Weight	Approximately 300g
Operating Environment	Temperature: -20℃ to 40℃ Humidity: < 90% RH
Storage & Transport	Temperature: -40℃ to 60℃ Humidity: < 90% RH
