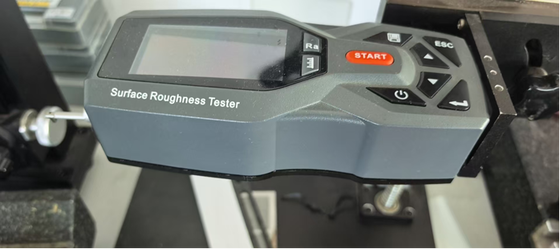

SRT-6630 Color Display High Precision Portable Roughness Tester with Bluetooth Connection

Large Image : SRT-6630 Color Display High Precision Portable Roughness Tester with Bluetooth Connection

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	ISO, CE, GOST
Model Number:	SRT-6630

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS

Contact Now

SRT-6630 Color Display High Precision Portable Roughness Tester with Bluetooth Connection

Description

Repeatability:

No More Than 3%

Highlight:

Color Display Surface Roughness Tester

High Precision Portable Roughness Instrument

Bluetooth Connection Non Destructive Testing Equipment

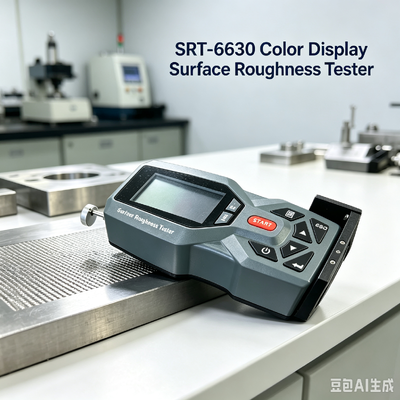

SRT-6630 Color Display Surface Roughness Tester

The SRT-6630 is a portable, high-precision roughness instrument featuring real-time waveform display and Bluetooth connectivity. Designed for ease of operation, it offers comprehensive measurement capabilities with exceptional speed, accuracy, and repeatability. The instrument fully complies with the latest international standards and strictly implements these standards in all measurements.

Key Features

Compact composite structure with electromechanical integration design
DSP chip control and data processing for high speed and low power consumption
Automatic range switching with live display
Graphical measurement display with on-site verification capability
TYPE C and Mini USB interfaces for communication and automatic control
Adjustable display orientation for left or right-hand operation
Configurable upper and lower limit alarms
Single or multiple record printing capability
Compliance with multiple international standards
Comprehensive information display with intuitive graphical parameters
Built-in lithium-ion rechargeable battery with high capacity and no memory effect
Graphical battery power level display
20 hours continuous operation
Large capacity data storage for 100 raw data items and measured profiles
Real-time clock for easy data recording and storage
Automatic sleep and shutdown power-saving features
Reliable circuit and software design to prevent motor jamming
Chinese/English language support
Comprehensive parameter printing options
High-precision glass calibration sample with long service life
Optional accessories: curved sensor, small holes sensor, measurement stand, extension rod, printer

Technical Specifications

Parameter	Specification
Measurement Range	Z axis (vertical): 160μm X axis (horizontal): 17.5mm / 0.69"
Display	2.4-inch IPS / 320×240 dot matrix
Resolution Ratio	0.001μm/±20μm 0.004μm/±80μm
Parameters	Ra, Rz, Rq, Rt, Rmax, Rc, Rp, Rv, R3z, R3y, Rz(JIS), Ry(JIS), Rs, Rsk, Rku, Rsm, Rmr, RPc, Rk, Rpk, Rvk, Mr1, Mr2
Standards	ISO4287, ANSI B46.1, DIN4768, JIS B601
Graphics	Primary profile, Roughness profile, Load curves
Filters	RC, PC-RC, Gauss, D-P
Sampling Length (lr)	0.25, 0.8, 2.5mm
Assessment Length (ln)	ln = lr × n (n = 1~5)
Sensor Principle	Displacement differential inductance
Stylus	Natural Diamond, 90°/60° angle, 2μm/5μm tip radius
Force	0.75mN/4mN
Skid	Hard alloy material, longitudinal radius 40mm
Traversing Speed	lr = 0.25: Vt = 0.135mm/s lr = 0.8: Vt = 0.5mm/s lr = 2.5: Vt = 1mm/s Return: Vt = 1mm/s
Accuracy	±(5nm + 0.1A) where A = Ra of calibration test block
Repeatability	No more than 3%
Residual Profile	No more than 0.010μm
Power Supply	Built-in 3.7V Lithium-ion battery, Charger: DC5V, 800mA/3hour
Dimensions (L×W×H)	155 × 63.5 × 46mm
Weight	Approximately 300g
Working Environment	Temperature: -20℃ to 40℃, Humidity: < 90% RH
Storage & Transportation	Temperature: -40℃ to 60℃, Humidity: < 90% RH
