HRD-4 High Precision Wrist Type Radiation Monitor 50KeV-1.3MeV Energy Range Adjustable Threshold Sound Light Alarm Dosage Meter

Large Image : HRD-4 High Precision Wrist Type Radiation Monitor 50KeV-1.3MeV Energy Range Adjustable Threshold Sound Light Alarm Dosage Meter

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	HRD-4

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

HRD-4 High Precision Wrist Type Radiation Monitor 50KeV-1.3MeV Energy Range Adjustable Threshold Sound Light Alarm Dosage Meter

Description

Cumulative Dose Equivalent Response Error:

＜±15%（137Cs）

Energy Response Range:

50 KeV-1.3MeV

Additional Functions:

IP67 Protection Grade

Temperature And Humidity Characteristics:

0-95%RH,-10℃～+50℃，Error≤±10%

Highlight:

wrist radiation monitor adjustable threshold

high precision dosimeter sound light alarm

wrist type dosage meter 50KeV-1.3MeV

HRD-4 High Precision Wrist Type Radiation Monitor 50KeV-1.3MeV Energy Range Adjustable Threshold Sound Light Alarm Dosage Meter

Function Overview

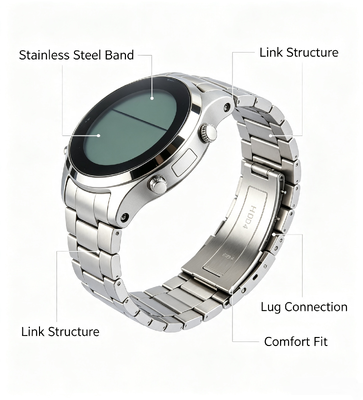

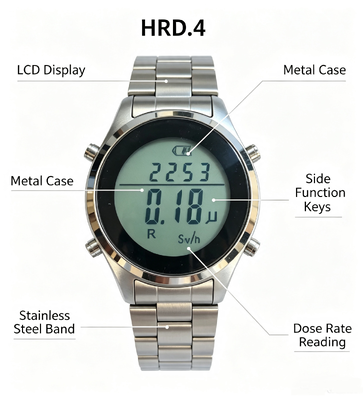

The HRD-4 wearable (wristwatch-style) personal dosimeter is mainly used for measuring personal dose equivalent caused by X and γ radiation, and is particularly suitable for medical applications in interventional radiotherapy.

This dosimeter is controlled by a low-power single-chip microcomputer and realizes functions such as LCD drive display, measurement data storage, relevant parameter setting, detector fault alarm, battery voltage detection, over-threshold sound and light alarm, and charging.

This dosimeter can be applied to the measurement of radiation dose equivalent in various scenarios such as radioactive medical treatment, industrial non-destructive testing, radioactive isotope application, occupational disease prevention, military units, nuclear power plants, and the surrounding areas of radioactive workplaces

Main technical parameters

Measuring range	Dose equivalent rate (The dose rate range can be customized non-standard according to user requirements)	0.10 μSv/h-50mSv/h
	Cumulative dose equivalent	0.0 μSv-9999 mSv
Cumulative dose equivalent response error	＜±15%(¹³⁷Cs)
Energy response range	50 keV-1.3MeV
Alarm function	alarm function, the alarm threshold is continuously adjustable
Data transmission	Personal dosimeters with communication functions can transmit measurement data to a computer via a data cable
Additional functions	IP67 protection grade
Working hours	100 hours continuous working time after a full charge
Temperature and humidity characteristics	0-95%RH,-10℃～+50℃,Error≤±10%
Overall dimensions	Diameter:47.5mm,thickness:20mm
