Large Size 14"x17" LED Radiography Film Viewer HFV-700C With Blue Light

Large Size 14"x17" LED Radiography Film  Viewer HFV-700C With Blue Light
Large Size 14"x17" LED Radiography Film  Viewer HFV-700C With Blue Light Large Size 14"x17" LED Radiography Film  Viewer HFV-700C With Blue Light

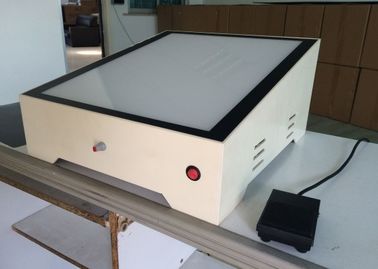

Large Image :  Large Size 14"x17" LED Radiography Film Viewer HFV-700C With Blue Light

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE ISO
Model Number: HFV-700C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Carton or as customer's requirements
Delivery Time: 3-7 working days
Payment Terms: TT, L/C, Western Union

Large Size 14"x17" LED Radiography Film Viewer HFV-700C With Blue Light

Description
Lamp Source: Color LCD Power Supply:: >200W
Start Way: Foot Switch Dimensions(w×H×D): Frame:495×430mm
Weight: 8KG Darkness: 2.9-5.0D
High Light:

industrial radiography film viewer

,

ndt film viewer


Big Size 14"x17" Industry Radiography x-ray Film LED Viewer HFV-700C


The excellent selected material

the viewer’s viewing screen and optical path material are all adopted of Acrylic glass plate manufactured by Japan Mitsubishi Liyan Co. Beyond the glass has a light transmittance and durability to ensure the non-deformation, do not change color.



Using the latest technology abroad

   It adopts the newest backlighting technology of color LED

Standards conforming: GB/T4730-2005, GB/T7903-1999



Technical Specifications

Dimensions(W×H×D)

495×430mm

Window size

360×430mm (14x17inch)

Lamp source

Color LED

Power Supply

≥200W

Darkness

2.9-5.0D

Brightness

70000- 118000cd/m2

Light working life time

>100000 hours

Light temperature

>10000K, blue light

Uniformity of viewer

≥90%

Light adjustment

Knob adjustment

Power:

220V 50Hz

Weight

8Kg

Start way:

Foot switch
