Product Details:
|
| Material: | Steel | Test Force: | 0.3Kgf(2.94N)、0.5Kgf(4.9N)、1.0Kgf(9.8N)、2.0Kgf(19.6N)、3.0Kgf(29.4N)、5Kgf(49.0N) |
|---|---|---|---|
| Standard: | GB/T4340，ASTM E92 | Test Resolution: | 0.01µm |
| Range: | 8~2900HV | Testing Process: | Automatic (loading, Dwelling , Unloading) |
| Test Microscope Magnification: | 100X、200X（Both Of Them Can Be Used For Testing） | Force Dwell Time: | 0~60s |
| Maximum Height Of Specimen: | 160mm | Distance From The Center To The Outer Wall Of The Indenter: | 135mm |
| Dimension: | 600*190*620mm | Power: | AC220V+5%，50-60Hz |
| High Light: | metal hardness tester,ultrasonic hardness tester |
||
Vickers Microhardness Testing Machine Steel Hardness Tester Automatic Input High Accuracy

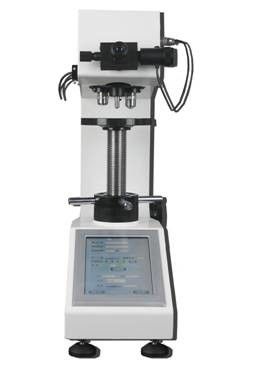

HV-5MDT Auto Turret Touch Screen Digital Vickers Hardness Tester Automatic (loading, Dwelling , unloadin
Main features:
HV-5MDT with large 8" LCD screen display, use the menu interface type structure, can be in operation panel choose hardness HV or HK (option), test of hardness value, automatic input, automatic display.
For all kinds of hardness value mutual conversion and the testing result is automatic storage, processing, printing with RS-232 interface, and computer online.
The brightness of light source is adjustable , and instrument can have a build-in camera, image will be more clear. Hardness value error can be modified through software input; hardness value more accurate meets the requirement.
Technical Specifications:
|
Model |
HV-5MDT |
| Test force | 0.3Kgf(2.94N),0.5Kgf(4.9N),1.0Kgf(9.8N),2.0Kgf(19.6N),3.0Kgf(29.4N),5Kgf(49.0N) |
| Carried standard | GB/T4340,ASTM E92 |
| Test resolution | 0.01µm |
| Conversion scale | Rockwell,Brinell |
| Hardness measuring range | 8~2900HV |
|
method of testing force applied |
Automatic (loading, Dwelling , unloading) |
|
Test microscope magnification |
100X,200X(Both of them can be used for testing) |
| Test force dwell time | 0~60s |
| Data output | 8’touch screen, built-in printer with RS-232 interface |
| Maximum height of specimen | 160mm |
| Distance from the center to the outer wall of the indenter | 135mm |
| Dimensions | 600*190*620mm |
| Weight | About 50Kg |
| Power | AC220V+5%,50-60Hz |
Standard Accessories:
| Item | Quantity | Item | Quantity |
| HV-1000-10X eyepiece | 1 | Middle, Large, V shape testing table | Each 1 |
| Weight (1,2,3) | Each 1 | Regulating screw | 4 |
| Level | 1 | Fuse (2A) | 2 |

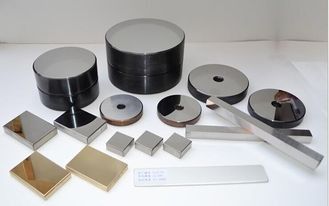

| Vickers test block | 2 | Dust bag | 1 |
| Power cord | 1 | Certificate, warranty card, manual | Each 1 |
| Wrench | 1 | Touch pen | 1 |
| Print paper | 1 |
