Product Details:
|
| Model Number: | HV-1000 | Warranty: | 12 Month |
|---|---|---|---|
| Usage: | Hardness Tester | Color: | White |
| High Light: | 220v micro hardness testing machine,220v micro vickers hardness tester,vickers micro hardness testing machine |
||

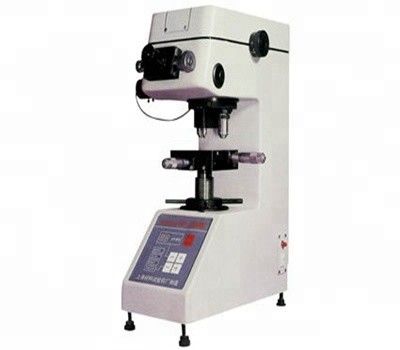

Digital High precision 220V Micro Hardness Tester HV1000 with LED display 50Hz / 60Hz AC
High precision 50Hz / 60Hz AC 220V Micro Hardness Tester HV1000 with LED display
Micro hardness tester Model HV-1000 adopts precise mechanical technique and
Specifications of micro hardness tester HV1000:
|
Test load
|
0.098, 0.246, 0.49, 0.98, 1.96, 2.94, 4.90, 9.80N (10-1000kgf)
|
|
Load holding time
|
5-60sec
|
|
Magnification of microscope
|
Measuring:400x (Object lens 40x, Eyepiece 10x) Observation:100x (Object lens 10x, Eyepiece10x)
|
|
Loading mechanism
|
Automatic loading and releasing method
|
|
Measuring
microscope
|
Mechanical
|
|
Digital
|
|
|
Max.measuring length 150μm
|
|
|
Min.measuring unit 0.5μm
|
|
|
Max.height of specimen
|
Approx 65mm
|
|
Max.depth of specimen
|
Approx 85mm
|
|
Micro test table
|
Dimension:100_100mm Max.movement:25mm in X&Y axis Min .micro graduation:1/100mm
|
|
Digital data display
|
(5-2500)HV
|
|
Automatic recorder
|
|
|
Photographic device
|
Possible to install at any time
|
|
Dimensions of tester
|
W290 ×D405×M480mm
|
|
Weight of tester
|
25kg
|
|
Power supply
|
AC220V/110V±10% 50Hz/60Hz
|
Standard delivery of micro metal hardness tester HV1000:
| Main unit | 1 |
| Micro Vickers indenter | 1 |
| 10 × objective | 1 |
| 40 × objective | 1 |
| Manual | 1 |
| Weight shaft | 1 |
| Cross testing table | 1 |
| Screwdriver | 2 |
| Horizontal adjusting screw | 4 |
| 10× micrometer eyepiece | 1 |
| Micro Vickers hardness test block (high) | 1 |
| Micro Vickers hardness test block (medium) | 1 |
| Level | 1 |
| Lamp (6V/2 W) | 2 |
| Fuse 1A, 2A | 2 |
| Certificate | 1 |
| Manual for printer | 1 |
| Weight | 1 |
| Fine wire holder | 1 |
