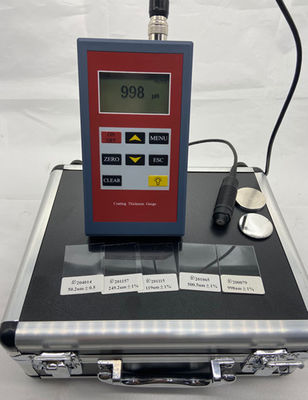

Portable Digital Display Magnetism Paint Coating Thickness Gauge

Portable Digital Display Magnetism Paint Coating Thickness Gauge
Portable Digital Display Magnetism Paint Coating Thickness Gauge
Portable Digital Display Magnetism Paint Coating Thickness Gauge Portable Digital Display Magnetism Paint Coating Thickness Gauge Portable Digital Display Magnetism Paint Coating Thickness Gauge

Large Image :  Portable Digital Display Magnetism Paint Coating Thickness Gauge

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: TG-8831FN
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Standard export package
Delivery Time: 1-4working days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 500Pcs

Portable Digital Display Magnetism Paint Coating Thickness Gauge

Description
Calibration: 1 Point Calibration /2 Point Calibration /basic Calibration Weight: 250g(including Battery Package )
Measuring Mode: Continuous/single Shutdown Mode: Manual/automatic
High Light:

magnetism digital coating thickness gauge

,

digital paint coating thickness gauge

,

magnetism paint coating thickness gauge

Portable Digital Display Multiple Measurement Ranges Coating Thickness Gauge TG8831FN



TG8831FN digital coating thickness gauge is using the magnetism and backset measuring thickness method .It can measure the thickness of the magnetism metal substrate (such as steel, iron, alloy and rigid magnetism steel and etc), non-magnetism cover layer (such as aluminum, chrome, copper, enamel, rubber, oil paint and etc) and non-magnetism metal substrate (such as copper, aluminum, zinc, tin and etc) and non-transmitting electricity cover layer (such as enamel, rubber, oil paint, plastic and etc). This instrument has small error of measure, excellent performance and good stability, easy operation and other characteristics, is a necessary measure instrument to control and guarantee the product quality, can be widely applied to manufacturing, metal processing industry, chemical industry, merchandise test fields.



Portable Digital Display Magnetism Paint Coating Thickness Gauge 0



Features



Precise measurements (2%+1)/(1%+1) z

Quick measuring response and rapid measuring speed z

Design of two independent parts ,better applicability, stable measurement results z

Strong data processing and analysis :5 types of Statistic value and histogram



Technical Specification



Measuring range F400:0~400µm,N400:0~400µm,F1:0~1250µm,F1/90:0~1250µm, N1:0~1250µm,F10:0~10000µm,CN02:10~200µm,
Measuring accuracy 1 point calibration : ±(2%+1)2 point calibration : ±(1%+1)
Calibration 1 point calibration /2 point calibration /basic calibration
Display resolution 0.1um (0~99.9um) / 1um (Over 100um)
Weight 250g(including battery package )
Operation environment Temperature: 0 ~50 humidity: 20%RH ℃ ℃ ~90%RH
Operation mode Direct testing mode and block statistics mode
Measuring mode continuous/single
Shutdown mode manual/automatic
Operation alarm Ring music to alarm mistake



Signal Dealing



Threshold Limits setting and automatically alarm measured values out of limit
Data analysis Analyzing a batch of measuring values via histogram
Statistic function Mean/ Standard deviation / Number of measurements/ Maximum/ Minimum



Data Merory



Thickness values 500 measuring data
Delete Single doubtful data / All data of one group



Power supply



Power supply 9V Nickel-hydride/ alkaline batteries
9V Nickel-hydride/ alkaline batteries low voltage indication



Standard delivery Main unit 1
Integrated probe((N 1 or F1 ) 1
Calibration foil set 4
Calibration base set 1
9V alkaline battery 1
Instruction manual 1



Optional accessories



probe :F400, N400, F1/90, F10, CN02



HUATEC has always been adhering to the first concept of customer-oriented, the products we sell will be carefully checked before shipping and then delivered to your hands.If you have any product requirements, you can contact me.Looking forward to your order.WeChat:19520504939
