TG-3219 0.001mm Ultra Low Resolution Ultrasonic Thickness Gauge For Steel Measuring

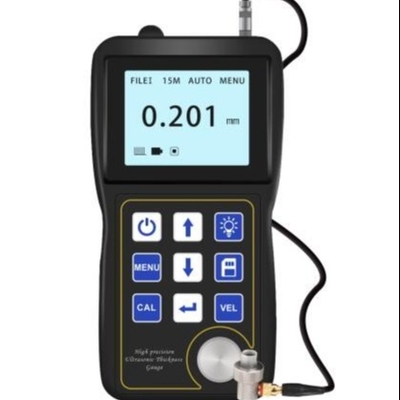

TG-3219 Ultrasonic Thickness Gauge

TG-3219 ultrasonic thickness gauge adopts the principle of pulse reflection ultrasonic measurement, which is suitable for the measurement of the thickness of various materials in which the ultrasonic can propagate at a constant speed and get the reflection from the back. This instrument can accurately measure various plates and various processed parts. It can be widely used in petroleum, chemical industry, metallurgy, shipbuilding, aviation, aerospace and other fields. For different applications, the instrument is divided into basic type, high temperature type, cast iron type and precision type.

Product Features
High frequency single crystal probe can be used to realize the function of measuring ultra-thin parts.

The "echo-echo" ultrasonic thickness measurement technology is adopted to realize the thickness measurement through the coating.

The display resolution is 0.001mm,and the measurement range is 0.15-20mm.

LCD contrast is adjustable, 128*64 dot matrix LCD display, with LED backlight,which can be used in various light environments.

The USB interface can be used to transfer data to the computer.

Basic Parameters

Basic Configurations
