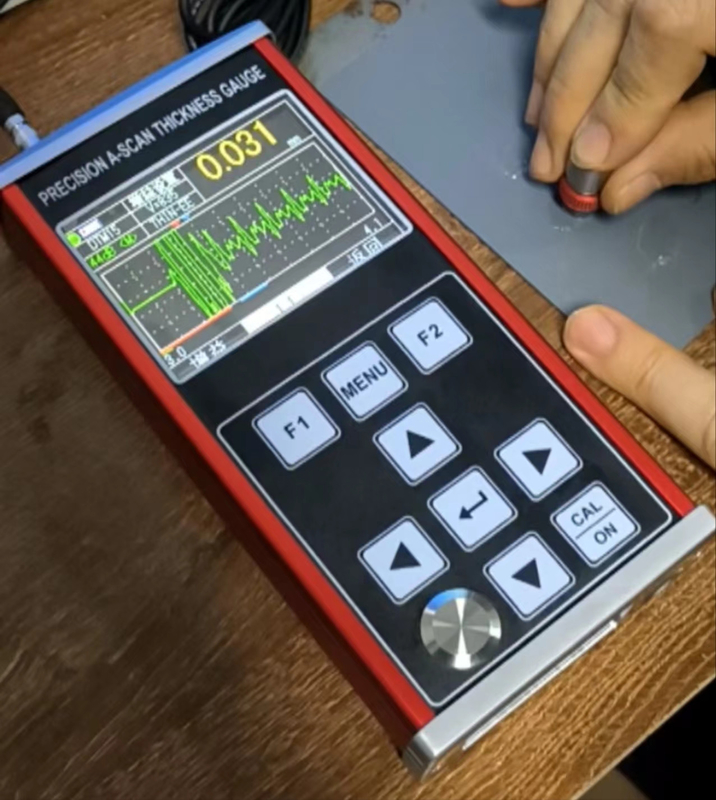

TG-6200 Handheld Non-Metallic Ultrasonic Coating Thickness Gauge

TG-6200 Handheld Non-Metallic Ultrasonic Coating Thickness Gauge
TG-6200 Handheld Non-Metallic Ultrasonic Coating Thickness Gauge

Large Image :  TG-6200 Handheld Non-Metallic Ultrasonic Coating Thickness Gauge

Product Details:
Place of Origin: China
Brand Name: Huatec
Certification: ISO,CE
Model Number: TG-6200
Payment & Shipping Terms:
Minimum Order Quantity: 1sets
Packaging Details: in high quality carton
Delivery Time: 5~8 days after payment
Payment Terms: L/C, Western Union, T/T
Supply Ability: 1000 sets per month

TG-6200 Handheld Non-Metallic Ultrasonic Coating Thickness Gauge

Description
Product Name: Coating Thickness Gauge Model: TG-6200
Probe Type: Single Crystal/twin Crystal Measuring Range: 20um – 1800mm
Frequency: 4Hz、8Hz、16Hz Resolution: 0.1mm、0.01mm、0.001mm(0.01inch、0.001inch、0.0001inch)
Highlight:

Ultrasonic Coating Thickness Gauge Hand held

,

Non-Metallic Ultrasonic Coating Thickness Gauge

,

Handheld Ultrasonic Coating Thickness Gauge

TG-6200 Handheld Non-Metallic Ultrasonic Coating Thickness Gauge



TG-6200 can measure the coating thickness on various metal, non-metal (glass, plastic, composite, concrete, wood, etc.) substrates



Summarize

Handheld non-metallic coating thickness gauge with numerical display and A/B scanning function. The principle of pulsed reflection ultrasonic thickness measurement is applicable to the measurement of ultra-thin film material or coating thickness that can make ultrasonic wave propagate in it at a constant speed and can be reflected from its back. The measurement resolution is 0.001mm, the measurement range is as thin as 0.02mm, and the thickness of the coating and the substrate can be measured simultaneously.

This product can be used in petroleum, chemical industry, metallurgy, shipbuilding, aerospace, energy and other fields.



Main function

● Wide measuring range, minimum measuring thickness, coating 20um, maximum measuring thickness 1800mm;

● High precision thickness measurement, the highest measurement resolution up to 0.001mm; Repeatable resolution up to ±0.002mm;

● A-scan mode, B-scan mode, numerical display mode;

● With through coating and echo to echo measurement functions for measuring materials with paint and coatings on the surface;

● The coating and paint layer on some composite materials can be detected according to the different sound velocity of the material, and the thickness of each layer of more than 10 multi-layer materials can be measured at the same time, and the thickness value of each layer can be switched under the same echo;

● A variety of measurements: THIN, MB-E, E-E, Auto mode to meet the conventional thick workpiece measurement; THIN E-E mode for thin coating measurement;

● Numerical modes include conventional thickness value mode, difference/reduction rate mode and maximum value mode;

● Gain mode: automatic gain/manual gain;

● Manual shutdown and automatic shutdown can be set, with energy-saving function;

● Can use a variety of different specifications of probes, twin probes and single crystal probes, up to support 20Mhz high-frequency probes;

● Support large capacity storage, can simultaneously store 100,000 thickness values, 500 groups of A scan waveform and 500 groups of B scan waveform;

● Has a variety of calibration methods, support one point calibration, multi-point calibration and manual calibration mode, can simultaneously calibrate the sound speed and probe zero position; Support V path calibration.

● Imperial conversion; Millimeters and inches can be switched;

● Chinese and English display;



Applicable material

Measure the coating thickness on metal and non-metal (glass, composite, plastic, concrete, wood, etc.) substrates

Suitable for measuring the thickness of metals (such as steel, cast iron, aluminum, copper, etc.), plastics, ceramics, glass, resin, glass fiber and other good ultrasonic conductors.



Basic principle

The principle of pulsed reflection ultrasonic thickness measurement is applicable to the measurement of ultra-thin film material or coating thickness that can make ultrasonic wave propagate in it at a constant speed and can be reflected from its back.



Specification parameter

item TG-6200
Probe type Single crystal/twin crystal
Measuring range 20um – 1800mm
Measurement frequency 4Hz,8Hz,16Hz
Resolution 0.1mm,0.01mm,0.001mm(0.01inch,0.001inch,0.0001inch)
Pulse generator Negative square wave emission, pulse width and voltage are automatically matched to the probe
sound velocity Range 400-19999m/s
Calibration block 4mm(steel)
Automatic shutdown You can choose 5 minutes, 10 minutes, 20 minutes, manual shutdown
Probe calibration One-point calibration, two-point calibration, manual calibration
gain Automatic gain, manual gain
gain range 0~80dB
Detection mode RF, positive half wave POS, negative half wave NEG, FULL wave
Measurement mode (1) Thin-EE: THIN film coating mode (2) MB-E: transmit pulse initial wave to a single echo; (3) E-E: Through the coating measurement, optional any EM-EN echo; (4) THIN: thin wall measurement mode
Numerical model Thickness value mode, difference/reduction rate mode, maximum/minimum mode
A- Scan mode support
B- Scan mode support
Coupling indication support
Battery indicator support
Language English
unit mm/inch
Menu operation support
Software function Dynamic gate Settings, blanking Settings (Blank), Echo blanking Settings (E-Blank), echo freeze, echo Pan and zoom
Storage function At the same time, 100,000 thicknesses (100 groups, each group of 1000), 500 groups of A scan waveforms and 500 groups of B scan waveforms are supported
Host program upgrade Support host program upgrade
Display screen 3.5 "true color screen
Data transmission Support USB communication, data transfer to the computer
Operating temperature -10℃ ~ +50℃, with special requirements up to -20℃
Operating voltage 3pcs No. 5 lithium-ion batteries with a low voltage warning when low
Overall dimension 184 x 85 x 32 (mm)
Machine weight 250 g(Battery not included)
Standard configuration

main machine and 1pc special probe for coating

No. 5 lithium battery 3, a charger, a set of random files, shock-proof and waterproof instrument case 1
