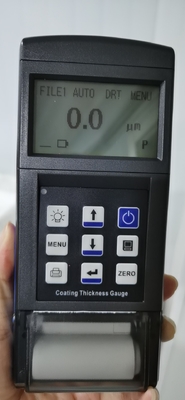

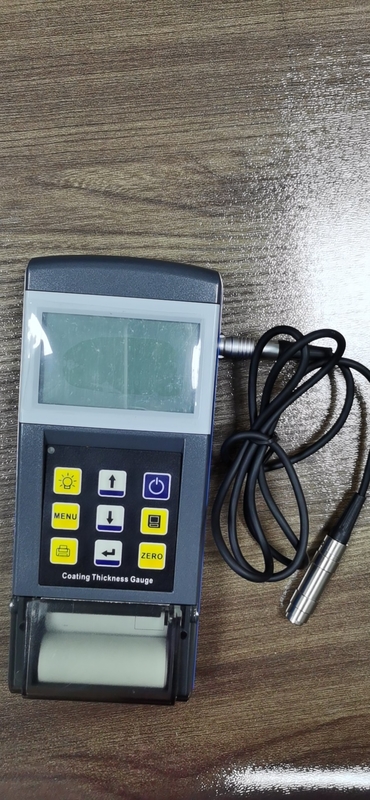

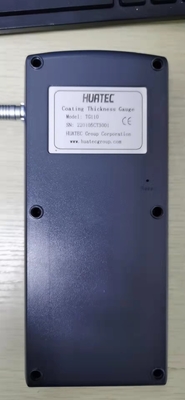

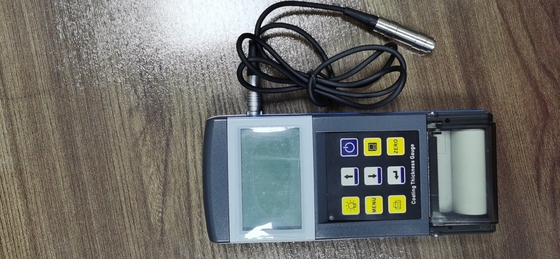

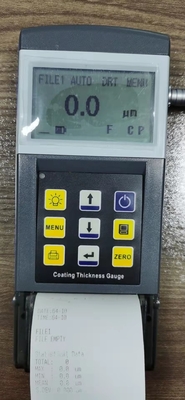

3v Battery Huatec Coating Thickness Gauge With Inbuilt Printer Tg110

3v Battery Huatec Coating Thickness Gauge With Inbuilt Printer Tg110
3v Battery Huatec Coating Thickness Gauge With Inbuilt Printer Tg110 3v Battery Huatec Coating Thickness Gauge With Inbuilt Printer Tg110 3v Battery Huatec Coating Thickness Gauge With Inbuilt Printer Tg110 3v Battery Huatec Coating Thickness Gauge With Inbuilt Printer Tg110 3v Battery Huatec Coating Thickness Gauge With Inbuilt Printer Tg110 3v Battery Huatec Coating Thickness Gauge With Inbuilt Printer Tg110 3v Battery Huatec Coating Thickness Gauge With Inbuilt Printer Tg110

Large Image :  3v Battery Huatec Coating Thickness Gauge With Inbuilt Printer Tg110

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: TG110
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Standard export package
Delivery Time: 1-4working days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 500Pcs

3v Battery Huatec Coating Thickness Gauge With Inbuilt Printer Tg110

Description
Temperature: 0℃~40℃ Size: 198mm*82mm*30mm
Battery: CR123A, 3V Power: Electronic, 2*3.7V Rechargeable Lithium Batteries
Humidity: 20%RH~90%RH Weight: About 320g
Probe: F Or N Or FN Model Number: TG110
High Light:

3v battery coating thickness gauge

,

inbuilt printer coating thickness gauge

,

tg110 coating thickness gauge



HUATEC Coating thickness gauge with inbuilt printer TG110

This compact, handy pocket gauge is designed for non-destructive,fast and precise coating thickness measurement. The principalapplications lie in the field of corrosion protection. It is ideal formanufactures and their customers, for offices and specialist advisers,for paint shops and electroplaters, for the chemical, automobile,shipbuilding and aircraft industries and for light and heavyengineering.



1 Features:

l With different external probes, the gauge can be applied tomeasuring thickness of non-magnetic coating on magneticmetal substrate, as well as non-conductive coating onnon-magnetic metal substrate.

l Two measuring modes: single or continuous, changeable.

l Two work modes: direct or group, changeable.

l High precision mode: multiple measurements and automatically data filtering method to reduce disturbance of measure results

l Temperature compensation: compensate the measurement distortion caused by the drifting of temperature.

l Give five statistical values: average, maximum, minimum, measure number, and standard deviation.

l Two calibration methods can be applied to the gauge; and thesystem error of the probe can be corrected with the basicprobe calibration method.

l Data storage: up to 500 measurements storage.

l Set boundary: alarm while measurements out of boundary.

l Battery information indicates the rest capacity of the battery.

l Beep prompting.

l Auto power off function to conserve battery life.



1.1 Measuring Principles

The gauge adopts two thickness-measuring methods: magneticinduction method and eddy current method.

Magnetic Induction method:The probe and the magnetic metalsubstrate will form a closed magneticcircuit when probe contacting with thecoating; the magnetic resistance ofclosed magnetic circuit varies due tothe existing of non-magnetic coating.The thickness of the coating can bemeasured through the variation ofmagnetic resistance.

Eddy current method: The highfrequency alternating currentgenerates an electromagnetic field inthe probe coil; eddy current will beformed on metal substrate when theprobe contacting with the coating,and the eddy current has an effect offeedback on the coil in probe. Thethickness of the coating can becalculated through measuring theeffect of feedback.

The range of applications is indicated by the probes available.

-F probes work on the magnetic induction principle and should beused for non-magnetic coatings such as aluminum, chrome, copper,zinc, paint and varnish, enamel, rubber etc., on an iron or steelsubstrate; they are also suitable for alloyed and hardened magneticsteel.

- N probes work on the eddy-current principle and should be used forinsulating coatings on all non-ferrous metals and on austeniticstainless steels, e.g. paint, anodizing coatings, ceramics, etc.applied on aluminum, copper, zinc die-casting, brass, etc.

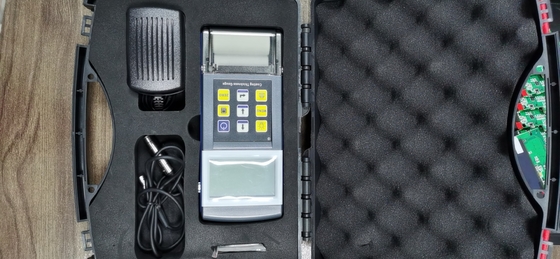

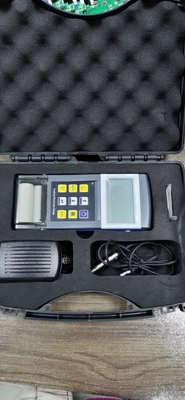

1.2 Configuration

Table1-1 Configuration

Item Quantity Remarks
Main Unit TG110 1
Probe 1 F or N or FN
Calibration Foils 5 PCS
Zero plate 1 Iron or Aluminum
Battery 1 CR123A, 3V
User Manual 1
Certificate 1
Warranty card 1
Feedback submission 1





Probe type F N
Measuring principle Magnetic induction Eddy current
Measuring range 0~1500 um 0~1500 um
Low range resolution 0.1 um 0.1 um
Accuracy Zero calibration ±(2%H+1) um ±(2%H+1) um
Two point calibration ±[(1~2)%H+1] um ±[(1~2)%H+1] um
Measuring Condition Min. radius of curvature Cx. 1.5 mm Cx. 3 mm
Min. radius of area Φ7 mm Φ5 mm
Critical thickness of plate 0.5 mm 0.3 mm
