Product Details:
|
| Customized Support: | OEM | Working Temperature: | -10 ~ +40 C |
|---|---|---|---|
| Relative Humidity: | <80% Non Condensation | Work Temperature Rise: | <18 C |
| AC Minimum Power Hoisting Power: | >4.5kg (44N) | Weight: | 2.2kg |
| High Light: | huatec group magnetic particle testing equipment,magnetic particle testing ac electromagnetic yoke,huatec group electromagnetic yoke |
||
Electromagnetic AC Yoke
Oerview
The HCDX-Y1 is a durable, high-strength AC agnetic yoke designed to detect surface and sub-surface indications in the most rugged applications.
Featuring sealed chemical-resistant construction, articulating legs to contour to any part shape and robust strain-relieved twelve-foot cord for field use, the HCDX-Y1is ideal for inspection of welds and other remote testing.
Solid-state controls allow the operator to use AC magnetic fields for surface indications to meet all inspection needs.
The charging type magnetic particle flaw detector has the characteristics of compact structure, reasonable layout, small size, light weight and convenient portability. The flaw detector can be used directly in alternating current,which is efficient and portable. It is suitable for hull weld inspection, high altitude steel structure weld detection and pressure vessel internal operation. This instrument is suitable for steel structure parts of power, metallurgy, petrochemical, machinery and other industries, such as boiler, pressure vessel, pressure pipe, ship body weld and welding structure of various types of ferromagnetic material surface and magnetic particle flaw detection of near surface defect.
This instrument conforms to the standard requirements of JB/T7411-2012, ASME BPVC,ASTM E709,ASTM E1444,ASTM E3024."electromagnetic yoke flaw detector technical condition".
Product features
Sealed, durable construction
Chemical and abrasion resistant
AC operation for surface and sub-surface inspection
Exceeds ASTM lifting specifications
There are places directly connected to AC power supply, which can be directly connected with AC power supply.
When the lifting force is not enough, the power is automatically cut off to ensure the sensitivity of flaw detection.
The power display function can display the current battery power, and has the function of sound and light alarm.
Built in microcomputer chip to stabilize output voltage and ensure detection sensitivity.
Adjustable magnetization
Special working waist bag can carry battery pack, magnetic suspension, contrast agent, yoke probe, etc.
Technical parameter
Working temperature: -10 ~ +40 C
Storage temperature: -20 ~ 50 C
Relative humidity: <80% non condensation
Work temperature rise: <18 C
Temporary load rate: >50%
Sensitivity: A1 standard test piece 15/50 groove clearly displayed.
AC minimum power hoisting power: >4.5kg (44N)

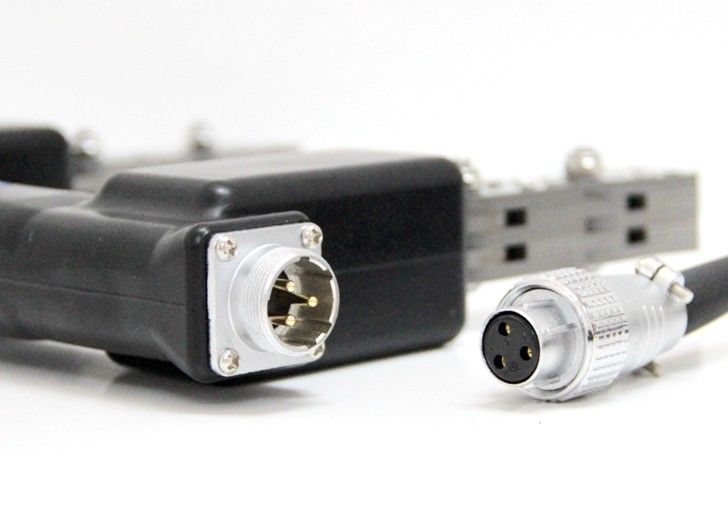

Electromagnetic Yoke: HCDX-Y1
Electrode spacing: 0~210mm
Maximum current: 2.8A
Weight: 2.2kg
major function: Direct alternating current magnetization
Standard configuration:
Magnetic powder flaw detector host HCDX-Y1 1pc
Power line 1pc

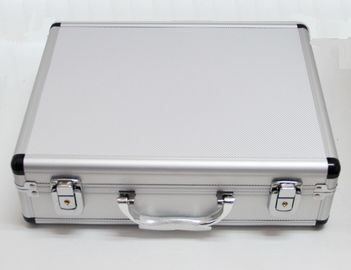

Instrument box 1pc
