Permanent Magnetic Particle Testing Equipment Handy Flaw Detector Yoke Hcdx-300

Permanent Magnetic Particle Testing Equipment Handy Flaw Detector Yoke Hcdx-300
Permanent Magnetic Particle Testing Equipment Handy Flaw Detector Yoke Hcdx-300
Permanent Magnetic Particle Testing Equipment Handy Flaw Detector Yoke Hcdx-300 Permanent Magnetic Particle Testing Equipment Handy Flaw Detector Yoke Hcdx-300 Permanent Magnetic Particle Testing Equipment Handy Flaw Detector Yoke Hcdx-300 Permanent Magnetic Particle Testing Equipment Handy Flaw Detector Yoke Hcdx-300 Permanent Magnetic Particle Testing Equipment Handy Flaw Detector Yoke Hcdx-300

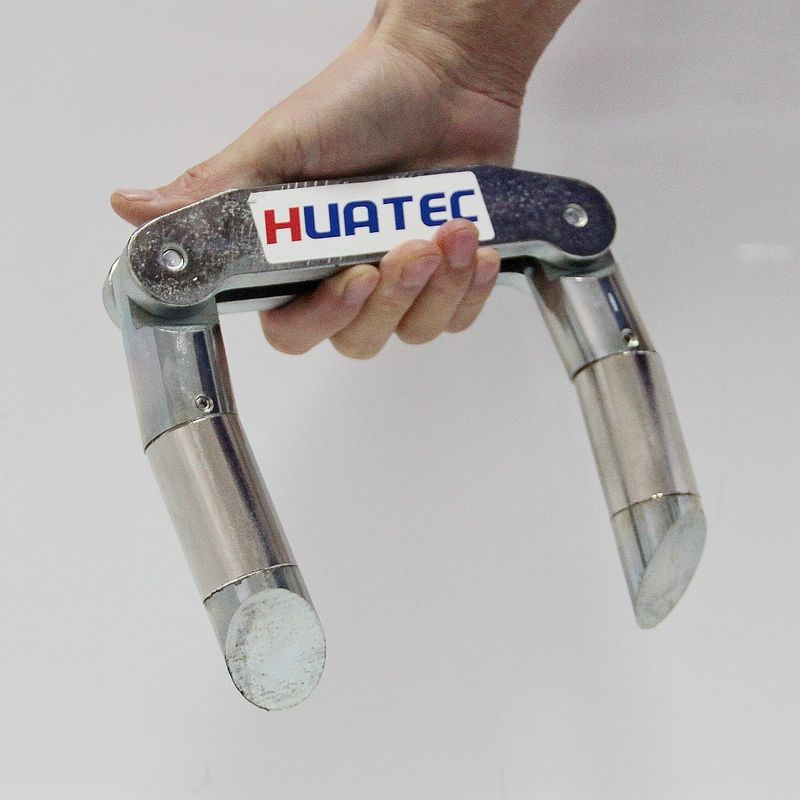

Large Image :  Permanent Magnetic Particle Testing Equipment Handy Flaw Detector Yoke Hcdx-300

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HCDX-300
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Standard export package
Delivery Time: 1-4working days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 500Pcs

Permanent Magnetic Particle Testing Equipment Handy Flaw Detector Yoke Hcdx-300

Description
Lifting Power: >12kg Customized Support: OEM
Power: Electronic Magnetic Electrode Distance: 50-200mm Continuous Adjustable
Outline Dimension(mm): 175mmX160mmX45mm Single Package Size: 37X23X9 Cm
High Light:

permanent magnetic particle testing equipment

,

handy magnetic particle testing equipment

,

flaw detector magnetic particle testing yoke

Permanent Magnetic Particle Testing , Handy Yoke Flaw Detector Yoke HCDX-300



HCDX-300 Permanent Magnetic Yoke flaw detector, it is special use for magnetic powder inspection, the testing tool is small and portable, and do not need power supply.



It is mainly use on working shop, laboratory, and most suitable space where do not have power supply. Such as testing spot or flammable and explosive special environment.



Technical Parameters

Lifting power>18kgs

Magnetic electrode distance: 50-200mm continuous adjustable

Outline dimension(mm) :175mmX160mmX45mm

No.2 test block, A type clearly display

Weight: 1.5kg



Operating principle

Utilize the strong magnetic field of permanent magnet; magnetize the surface of ferromagnetic material, It could form partial magnetic pole on or close the surface,

And scatter high-quality magnetic powder, It will be absorb on the flaw place by the magnetic pole,

By this mean, we could find the shape and situation of the flaw



Structure feature

The distance between magnetic pole is 50-200mm, and it is continuous and adjustable. The probe is rotatable, so it could detect flaw on various surface.

Also, it could work segmented and partial on large work piece, it is much more superior on these occasion that working at heights and inconvenience power supply



Operating method

Please get ready before you do flaw detection, take off the fill iron and test it, lifting power>12kg, it could be use.

When you do flaw detector, adjust the distance between the magnetic pole,so that the work piece could touch the yoke and work as the detector technology rule. Large work piece could segment and partial test.

After operate completed, short out the two yoke use the fill iron and make loop control, so that it could reduce the disturb of ground and outside magnetic.
