Product Details:
|
| Measuring Direction: | 360° | Display: | 320x240 True Color TFT Screen |
|---|---|---|---|
| To Identify Probe: | Automatically, Or By Manual | Power Supply: | Rechargeable Li-battery, 3.7v |
| Weight: | 0.6KG | Communication Port: | USB2.0 |
| Indication Error: | ±6HLD (D Impact Device) | User Defined Material: | 5 Kind. With Setting Guide |
| High Light: | rechargeable battery portable metal hardness tester,color lcd portable metal hardness tester,rhl60 portable hardness tester for steel |
||

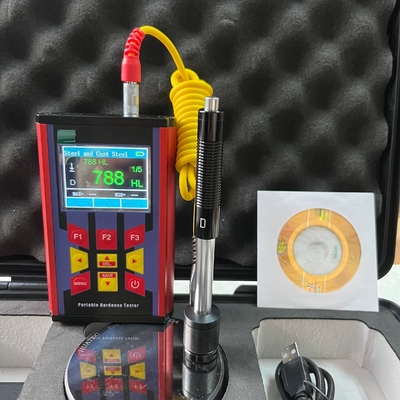

Rechargeable battery Color LCD Portable Metal Hardness Tester RHL60
Main application
The installed machinery and permanently assembled parts
Die cavity of molds
Heavy work piece
Failure analysis of pressure of steam generator and other parts.
for work piece in confined spaces
Bearing and other parts.
for usage when original hardness testing data report are request
for metal material distinction in warehouse
for quick inspection of multiple measuring area in wide range of large work piece.
TECHNICAL DATA
| Measuring Range |
HLD(170~960), HRC(17.9~69.5), HB(19~683), HV(80~1042), HS(30.6~102.6), HRA(59.1~88), HRB(13.5~101.7) |
| Measuring Direction | 360° |
| Hardness Scale | HL, HB, HRB, HRC, HRA, HV, HS |
| Testing result on display | HL value and the corresponding value of selected hardness scale. |
| Measuring Materials | Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), copper and tin alloy, copper (bronze), forged steel. added 3 materials for the roller hardness tester(optional): cast steel roller, forged steel roller, cast iron roller |
| User defined material | 5 kind. With setting guide |
| Display | 320x240 true color TFT screen |
| Indication Error | ±6HLD (D impact device) |

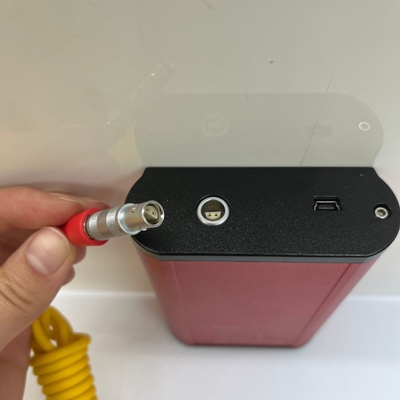

| To identify probe | automatically, or by manual. |
| Data Memory | Max 600 groups (relative to impact times 1~32 adjustable) |
| Power supply | Rechargeable li-battery, 3.7v |
| charger | 5V/1000mA, charging time 2.5~4.5 |
| Communication port | USB2.0 |
| Size | 130x83x32mm |
| Weight | 0.6kg |
| Working Condition |
working temperature: -20°C~55°C storage temperature: -20°C~75°C relative humidity: ≤90% The surrounding environment requires no vibration, no strong magnetic field, no corrosive medium and no serious dust |

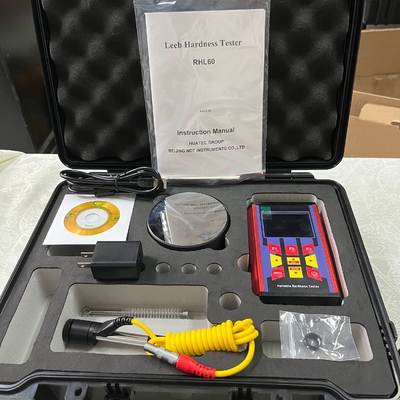

STANDARD DELIVERY
| ITEM | QTY |
| Main unit | 1 PC |
| Standard D Impact Device | 1 PC |

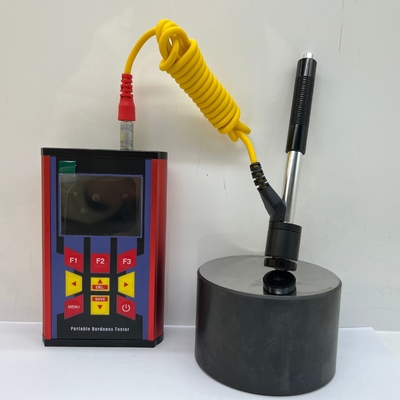

| Standard Calibration Block | 1 PC |
| Standard Support Ring | 1 PC |
| Brush | 1 PC |
| USB Cable, charger | 1 PC |
| PC Software | 1 PC |
| User Manual | 1 PC |
| Instrument Case | 1 PC |
| Warranty | 2 Years |
OPTIOANL CONFIGURATION
hardness testing for roller, mini printer, shaped support ring
| No. |
Type of impact device |
hardness value of standard Leeb hardness block |
Error of displayed value |
Repeatability of displayed value |
| 1 | D |
760±30HLD 530±40HLD |
±6 HLD ±10 HLD |
6 HLD 10 HLD |
| 2 | DC |
760±30HLDC 530±40HLDC |
±6 HLDC ±10 HLDC |
6 HLD 10 HLD |
| 3 | DL |
878±30HLDL 736±40HLDL |
±12 HLDL | 12 HLDL |
| 4 | D+15 |
766±30HLD+15 544±40HLD+15 |
±12 HLD+15 | 12 HLD+15 |
| 5 | G |
590±40HLG 500±40HLG |
±12 HLG | 12 HLG |
| 6 | E |
725±30HLE 508±40HLE |
±12 HLE | 12 HLE |
| 7 | C |
822±30HLC 590±40HLC |
±12 HLC | 12 HLC |
