Fd580 Digital Ultrasonic Crack Detection With Touch Screen

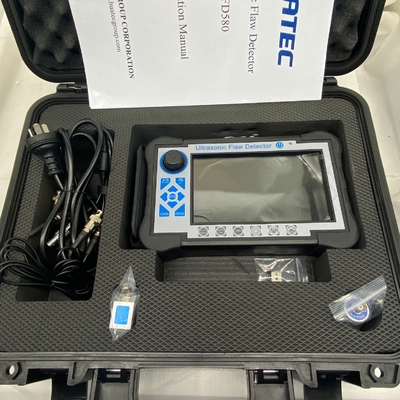

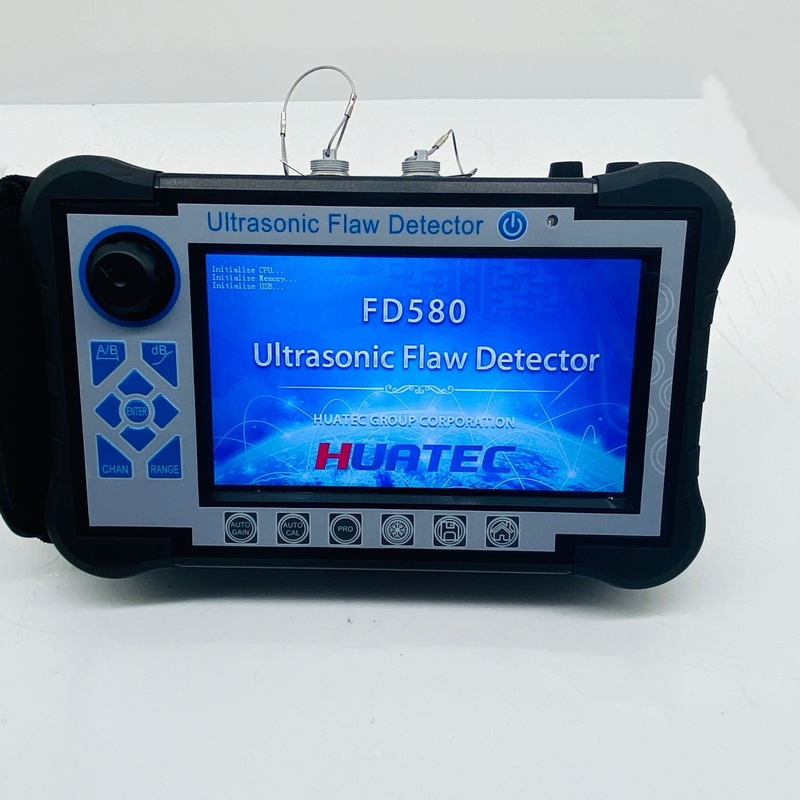

HUATEC New blue look Digital Ultrasonic Flaw Detector FD-580

Introduction

Digital ultrasonic flaw detector is advanced type, which is touch screen, can quickly, easily and without damage, accurately detect, locate, evaluate and diagnose various defects inside the work-piece such as cracks, welds, pores, sand holes, inclusions, folding, etc. It has been applied for electric power, petrochemical, boiler and pressure vessel, steel structure, military, aerospace, railway transportation, automobile, machinery and other fields. It is an essential instrument for the non-destructive testing industry.

Features

1. High-precision quantification and positioning to meet the requirements of near and far distance detection

2. The near-field blind zone is small, can meet the detecting requirements for small-diameter and thin-walled pipe.

3. Auto calibration function:one-button auto calibration,easy to operate, automatic test probe “P Delay”,”K value”,”X value” and the velocity

4. Automatic display the defect echo position(Depth:d, Horizontal:p,Distance:s, Amplitude,dB, )

5. Switch three scales freely(Depth:d, Horizontal:p,Distance:s)

6. Auto gain, peak envelope, peak memory functions, which can improve the detection efficiency.

7. Automatically record the flaw detection process and dynamic playback

8. φ value calculation:Forging flaw detection by straight probe, can find the highest wave to conversion φ valueautomatically

9. 500 independent channels(can be expandable), which can input and store the detection standards of any industries freely, do not need to carry the standard blocks for on-site inspection.

10. Store, playback 500 A-scan waves and data freely

11. The DAC, AVG, and TCG curves (depth compensation) are automatically generated and can be segmented. The sampling points are unrestricted and can be corrected and compensated.

12. 14 built-in inspection standards

13. Free to enter any industry standards

14. Pulse width and strength can adjustable

15. B scan and B color scan function;

16. Can communicate with the computer, and export WORD. File, also the detection report

17. IP65 ABS plastic case, sturdy and durable,water-proof and dust-proof, and excellent anti-interference ability

18.Use (wireless) communication software to analyze data print reports, etc;

19. 260,000-color true color screen, is suitable for working environment understrong light or low light

2. High performance lithium battery, can work continuously for 8-10 hours

21. Real-time clock recording: real-time flaw detection date, time tracking record, and storage

22.Power-down protection, storage data cannot lost

23. Flaw detection parameters can be automatically tested or preset

24. Digital reject,does not affect gain and linearity

25. Gain compensation: Db attenuation can be corrected for surface roughness, curved surfaces, long-range flaw detection of thick work-pieces, etc.

26. Can operate the flaw detector by software at the PC, achieving the goal of computer-controlled flaw detector to detecting

Technical Specification
