Automatic HUATEC Micro Vickers Hardness Tester HVS-1MDT-AXYZF

Automatic HUATEC Micro Vickers Hardness Tester HVS-1MDT-AXYZF
Automatic HUATEC Micro Vickers Hardness Tester HVS-1MDT-AXYZF

Large Image :  Automatic HUATEC Micro Vickers Hardness Tester HVS-1MDT-AXYZF

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HVS-1MDT-AXYZF
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Packaging Details: Standard export package
Delivery Time: 1-4 working days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 500pcs

Automatic HUATEC Micro Vickers Hardness Tester HVS-1MDT-AXYZF

Description
Measurement Resolution: 0.01 Including M Hardness Test Range: 8~2900HV
Test Force Retention Time: 1-99s Distance From Head To Wall: 160mm
Weight: 50KG Conversion Scale:: Rockwell, Brinell
High Light:

huatec micro vickers hardness tester

,

automatic micro vickers hardness tester

,

automatic vickers hardness testing machine

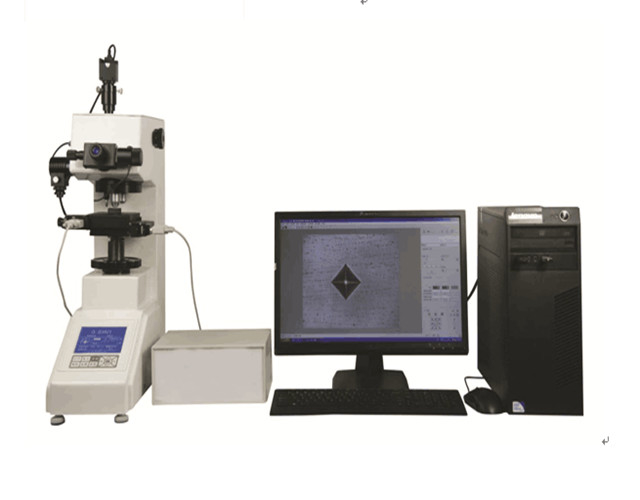

HUATEC Automatic Micro Vickers Hardness Tester HVS-1MDT-AXYZF

I. Automatic Turret touch screen Micro hardness Tester for HV-1MDT

1. Product introduction

HV-1MDT digital micro-hardness tester is an ideal high-end micro-hardness tester with lifting mechanism of optical cross guide rail, accurate force value and clear image.



2. Main features

1) 8 inch touch screen interface, easy to operate;

2) During the test, the indenter and the objective lens automatically switch to each other, and the test point automatically locates accurately.

3) Lifting mechanism guided by optical cross rail ensures guiding accuracy;Using rack and pinion two stage force transmission, can achieve fast and smooth force transmission;

4) LED light source, long life, no need to replace the bulb;

5) It can be equipped with a built-in camera for clearer images.

6) It can be calibrated according to standard hardness blocks or length scales, and automatically corrected according to high, medium and low hardness values, which makes the hardness value more accurate.

7) All test parameters and results are saved in EXCEL format on USB disk, which is convenient for data processing and inspection report output;

8) Various hardness values convert to each other;

9) Test setting parameters are protected by password;

10) Chinese, English and other languages for choice;

11) Rs-232 interface for computer connection (optional);

12) Optional maximum test force 2kg.

3. Technical parameters

Model HVS-1MDT
Test force 10GF (0.098N), 25GF (0.245N), 50GF (0.49N), 100GF (0.98N), 200GF (1.96N), 300GF (2.94N), 500GF (4.9N), 1Kgf (9.8N)
Meet standard GB/T4340.2, ASTM E92
Measurement resolution 0.01 (including m
Data display output 8 "touch screen display reading, can store 20 test results, usb drive, optional built-in printer and RS-232 interface
Conversion scale Rockwell, Brinell
Hardness test range 8~2900HV
Test force application method Automatic (loading, preserving, unloading)
Test microscope magnification 400X(test), 100X (test, observation)
Test force retention time 1-99s
Maximum allowable specimen height 160mm
Distance from head to wall 160mm
Size 540*260*650mm
Weight About 50 kg
Power supply AC220V + 5%, 50 to 60 hz
