LCD Huh-6m Uci Portable Hardness Testing Machine Ultrasonic

LCD Huh-6m Uci Portable Hardness Testing Machine Ultrasonic
LCD Huh-6m Uci Portable Hardness Testing Machine Ultrasonic LCD Huh-6m Uci Portable Hardness Testing Machine Ultrasonic LCD Huh-6m Uci Portable Hardness Testing Machine Ultrasonic LCD Huh-6m Uci Portable Hardness Testing Machine Ultrasonic

Large Image :  LCD Huh-6m Uci Portable Hardness Testing Machine Ultrasonic

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO,CE
Model Number: HUH-6M
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 2950~3835 per set
Packaging Details: in High quality carton
Delivery Time: 5-10 days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 100 sets per month

LCD Huh-6m Uci Portable Hardness Testing Machine Ultrasonic

Description
Product Name: Portable Ultrasonic Hardness Tester Model: HUH-6M
Main Hardness Scale: HV Testing Range: HV50~1599, HRC20~68, HB85~650
Battery: 3.6V, 3000mAh Lithium Battery Display: 3.5 Inches Large LCD Screen
High Light:

uci portable hardness testing machine

,

lcd portable hardness testing machine

,

lcd portable hardness testing equipment

HUH-6M UCI hardness test Portable Ultrasonic Hardness Tester hardness test instrument



Characteristics of UCI method
1. Directly test Vickers hardness value of workpiece, and there is no need to convert like Leeb or Shorehardness tester. The conversion error is eliminated.
2.High test speed -- output test results within seconds
3.Standard Vickers indentation, tiny indentation, little damage to the workpiece
4.The test results are related to the elastic constants of the workpiece. New workpiece needs to be calibrated according to the elastic constants.
5.Small volume, light weight and easy to carry.
6.Easy to test on assembly line.
7.It can be used for testing on site and testing large workpiece and can be used to make hardness measurements on positions difficult to access, such as tooth flanks or roots of gears.
8.Only measuring the hardness condition of the surface contacted
9. The development of microcontroller technology makes it easy to calibrate workpiece with different elastic constants.



Ultrasonic Hardness Tester

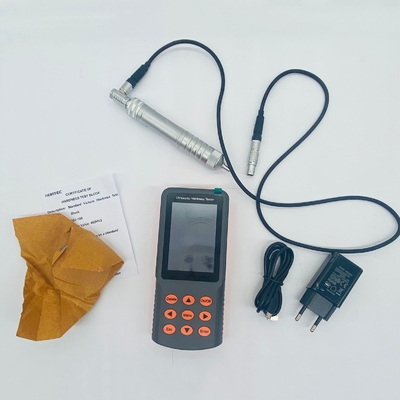

Host and Accessories

LCD Huh-6m Uci Portable Hardness Testing Machine Ultrasonic 0

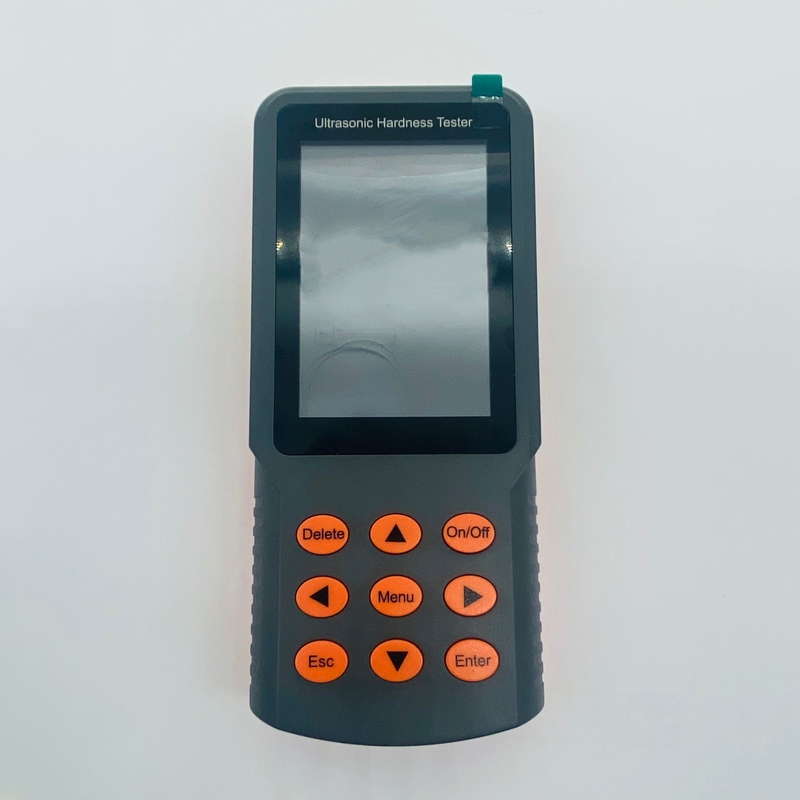

Ultrasonic hardness tester is composed of host, probe and probe connection cable.
The probe is connected to the host with an eight-core connection cable for signal transmission. The host adopts a color display with rich display content.
There are nine buttons on the front of the host to operate.
A USB interface is on the side of the host for charging and communication.
The charge lamp near the USB interface is used to indicate charging status.

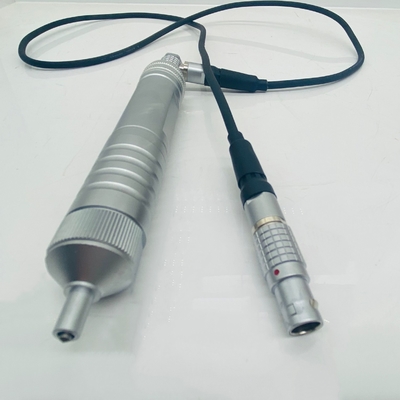

Probe
Probe 1kgf manual probe 2kgf manual probe 3kgf manual probe 5kgf manual probe 10kgf manual probe
Accessory Optional Standard Optional Optional Optional
Test force 9.8N 19.6N 29.4N 49N 98N
Diameter 22mm 22mm 22mm 22mm 22mm
Length 150mm 150mm 150mm 150mm 150mm
Resonating rod diameter 2.4mm 2.4mm 2.4mm 2.4mm 2.4mm
Maximum roughness of test surface Ra<3.2μm Ra<5μm Ra<5μm Ra<10μm Ra<15μm
Minimum workpiece weight 0.3kg 0.3kg 0.3kg 0.3kg 0.3kg
Minimum workpiece thickness 2mm 2mm 2mm 2mm 2mm
Application Ion nitriding die,formwork, fixture,thin-walled workpiece,bearing,tooth flanks, pipeline Ion nitriding die,formwork, fixture,thin-walled workpiece,bearing,tooth flanks, pipeline Ion nitriding die,formwork, fixture,thin-walled workpiece,bearing,tooth flanks, pipeline Groove, tooth flanks, roots of gears Small forgings, foundry materials, weld inspection,HAZ, low requirement for roughness



Functional Characteristics

1.Main hardness scale: HV
Convertible hardness scale: HRC, HRA, HRB, HBW
2.In multi-points calibration mode, any hardness scales can be chosen.
3.Testing range: HV50~1599, HRC20~68, HB85~650
4.Test direction:Support 360° test, as long as the angle between the indenter and the surface doesn’t exceed 90° ± 3°.
5.Battery: 3.6V, 3000mAh lithium battery
6.Endurance: 10 hours
7.Test data can be exported to computer terminal.
8.Norms: DIN 50159-1-2008; ASTM-A1038-2005; JB/T 9377-2010; JJG-654-2013;JJF 1436-2013.
10.Tiny test indentation---- requires a high-power microscope to see.
11.Little damage to the workpiece.
12.High test speed----output test results in 1s at the soonest.
13.New appearance design, innovative sculpt, convenient to hold and good craft.
14.Full English display, menu-type operation, few keys, simple and convenient to operate.
15.inches large LCD screen with 320×480 color graphics dot matrix, beautiful font and graphics, rich information and clear display.
16.Directly display the current measured value, cumulative measured value, maximum value, minimum value, average value and conversion value.
17.50 sets of data storage.
18.Simple calibration----5 sets of one-blockcalibration data, 1 set of default calibration data and 5 sets of multi-blocksscalibration data can be stored in the host.
19.For materials with different elastic constants, just anone-block calibration is required to adapt to the new material.
20.For unknown material or material without conversion table, the hardness scale can be arbitrarily selected for multi-points calibration to eliminate the systematic error brought by the conversion table.
21.Easy to test on assembly line.

Accuracy
Model Ultrasonic Hardness Tester
Test range:

HV50-1599,HRC20-68,HB85-650,HRB41-100,HRA61-85.6,

HS34.2-97.3,MPa255-2180

Accuracy ±4%HB,±1.5HR,HV please refer to the table below



Accuracy

Hardness value Maximum allowable relative error of hardness tester %
HV10 HV5 HV2 HV1
<250HV 4 4 4 4
250HV-500HV 4 4 4 4
>500HV-800HV 4 4 5 5
>800HV 4 4 6 6





Application



1.Hardness test of flange edge and gear root stamping parts, mold, thin plate, face-hardened gear tooth, gear groove and taper part
2.Hardness test of axle and thin-wall pipes and vessels
3.Hardness test of wheels and turbine rotors
4.Hardness test of bit edge
5.Hardness test of welding parts
6.Measure the depth of deep hole with certain aperture, concave and convexwith large radians, and irregular plane
7.Hardness test of most ferrous and nonferrous metals and their alloys in industrial production
8.Hardness test of thin coatings
9.etc.

LCD Huh-6m Uci Portable Hardness Testing Machine Ultrasonic 1

LCD Huh-6m Uci Portable Hardness Testing Machine Ultrasonic 2

LCD Huh-6m Uci Portable Hardness Testing Machine Ultrasonic 3

LCD Huh-6m Uci Portable Hardness Testing Machine Ultrasonic 4

LCD Huh-6m Uci Portable Hardness Testing Machine Ultrasonic 5

LCD Huh-6m Uci Portable Hardness Testing Machine Ultrasonic 6

LCD Huh-6m Uci Portable Hardness Testing Machine Ultrasonic 7
