Product Details:
|
| Product Name: | Rockwell Hardness Tester | Model: | HR-P2 |
|---|---|---|---|
| Initial Test Force: | 10 Kgf | Total Test Force: | 60 Kgf, 100 Kgf, 150 Kgf |
| Test Head: | 120°Diamond Indenter 1/16" Carbide Alloy Ball | Test Resolution: | 0.5 HR |
| High Light: | iso 6508 handheld rockwell hardness tester,small handheld rockwell hardness tester,opening size 50mm small hardness tester |
||

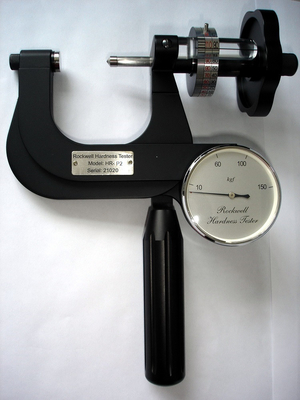

HR-P2 Opening size 50mm small handheld rockwell hardness tester
Introduction
* Miniaturization of Rockwell hardness tester HR-P2, the smallest model weighs only 1.2kg and the operation is similar to that of a micrometer.
Opening size: 50X50mm
* The testing principle and accuracy comply with ISO 6508 and ASTM E110, tested by *National Institute of Metrology with error less than 1.5HRC, same as the bench type *Rockwell hardness tester type.
* The instrument is composed of tester and bench stand, can be used on table or on site in the factory.
* Can test many kinds of thin, small, long and irregular parts that cannot be tested by the bench type.
* Well suits for testing the workpieces with small supporting surface.
* Traceable standard hardness block.Indenter inspected with standard Rockwell hardness tester.
* Test force calibrated with load cells directly traceable to national secondary benchmark.
Application:
Test thin, small, long and irregular parts Test standard parts, hardware and cutter etc. Test inner and outer surface hardness of steel pipe directly. Very suitable for parts with small bearing face(e.g. small stamping) Match different anvils, test irregular parts
Initial test force: 10 kgf
Total test force: 60 kgf, 100 kgf, 150 kgf
Test head: 120°Diamond Indenter 1/16" carbide alloy ball
Indication Error: complying with ISO 6508 , ASTM E18 and ASTM E110
Repeatability Error: complying with ISO 6508, ASTM E18 and ASTM E110
Test Resolution: 0.5 HR
Application range: common metal including iron and steel,
Test range: HRA, HRB, HRC…HRV etc, 15 scales
Application range. Common metal including iron and steel, Hard alloy Cu, Al, Ni, Ti, Pb, carburized layer and carburized layer.
Standard accessories
Main unit HR-P2
Bench stand
120°Diamond Indenter
Carbide ball indenter (1/16", carbon alloy)
Rockwell hardness blocks 3pcs
Flat anvil
V anvil
Extensions
Instruction manual
Calibration certificate
Carrying case
Optional accessories
120°Diamond Indenter
Carbide ball indenter (1/16", 1/8")
Steel ball indenter (1/4", 1/2")
Harness blocks
Raised spot anvil
Slim raised spot anvil
Concave cylindrical anvil
Convex cylindrical anvil for tubing and curved sheets
Anvil for testing ball (for steel ball)
Spare magnifier
