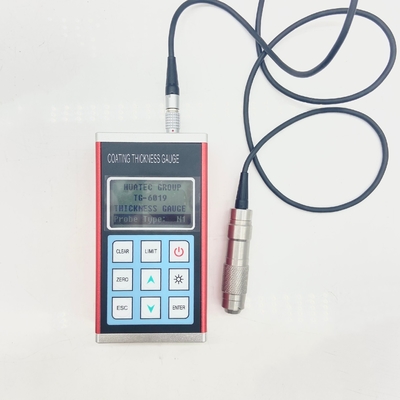

Various Optional Probe Coating Thickness Gauge Auto Matching Metal Shape

Various Optional Probe Coating Thickness Gauge Auto Matching Metal Shape
Various Optional Probe Coating Thickness Gauge Auto Matching Metal Shape
Various Optional Probe Coating Thickness Gauge Auto Matching Metal Shape Various Optional Probe Coating Thickness Gauge Auto Matching Metal Shape Various Optional Probe Coating Thickness Gauge Auto Matching Metal Shape Various Optional Probe Coating Thickness Gauge Auto Matching Metal Shape Various Optional Probe Coating Thickness Gauge Auto Matching Metal Shape

Large Image :  Various Optional Probe Coating Thickness Gauge Auto Matching Metal Shape

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO,CE,Gost
Model Number: TG-6019
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: in High quality carton
Delivery Time: 3-7 days
Payment Terms: T/T, Western Union
Supply Ability: 100 sets per month

Various Optional Probe Coating Thickness Gauge Auto Matching Metal Shape

Description
Product Name: Coating Thickness Gauge Model: TG-6019
Measuring Range: Standard 0~1250μm Resolution: 0.1μm/1μm
Working Principle: Magnetic & Eddy Substrate: FE / NFe Base, Depends On Probes
High Light:

Various Optional Probe Coating Thickness Gauge

,

Auto Matching Coating Thickness Gauge

,

Metal Shape Digital Coating Thickness Gauge

Various probes optional probe auto matching Metal Shape Coating Thickness Gauge



MAIN FEATURE

*this model is capable to measure thickness of non-magnetic coating layers covered on magnetic substrate. Such as: non-magnetic (aluminum, chrome, copper, enamel, paint) covered on magnetic substrate (steel, alloy and magnetic stainless steel), also can measure thickness of non-conductive coatings layers covered on conductive substrate. Such as: (enamel, rubber, paint, plastic) covered on conductive substrate (aluminum, brass, zinc and nonmagnetic stainless steel);

*Various probes optional, probe auto matching;

*Durable ruby probe, more wear and precise;

*Full metal shell design, sturdy, portable, high reliability;

*Alarm function when overrun the settable limiting range;

*Five statistics values [MEAN, MAX, MIN, NO., S.DEV] higher measurement accuracy;

*Large storage, easy to delete single or multiple saved values;

*PC software optional, convenient the data transmission, analysis, printing etc.



TECHNICAL DATA

Measuring Range Standard 0~1250μm (probe F10 Max 10000μm, N3 0~3000μm, F3 0~3000μm)
Resolution 0.1μm/1μm
Working Principle Magnetic & Eddy
Substrate FE / NFe base, depends on probes
Accuracy ±2%H+1μm Note: H is thickness reading
Display 128x64 LCD with backlight
Memory 5 files x 99 values
Unit Switch Metric (μm) Imperial (mil)
Working Temperature Operation Temp. :-10°C~50°C Storage Temp. :-30°C-70°C
Power AA battery 2pcs (Non-aviation transport)
Size 125x67x31mm
Weight 340g



Various Optional Probe Coating Thickness Gauge Auto Matching Metal Shape 0 STANDARD DELIVERY

ITEM QTY
Main Unit 1 PC
F1 or N1 Probe Optional 1 PC
Standard Calibration Piece 1 SET
Fe or NFe Substrate 1 PC
User Manual 1 PC
Instrument Case 1 PC
Warranty 2 Years



















Various Optional Probe Coating Thickness Gauge Auto Matching Metal Shape 1

Various Optional Probe Coating Thickness Gauge Auto Matching Metal Shape 2



RELATED OPTIONAL ITEMS

1. F1 probe - Fe base
Measuring range: 0~1250μm
F1 probe measure the thickness of non-magnetic coating layers covered on magnetic substrate. Such as: non-magnetic (aluminum, chrome, copper, enamel, rubber, paint) covered on magnetic substrate (steel, alloy and magnetic stainless steel)

Various Optional Probe Coating Thickness Gauge Auto Matching Metal Shape 3

2. N1 probe - Al base
Measuring range: 0~1250μm
N1 probe can measure the thickness of non-conductive coatings layers covered on conductive substrate. Such as: (enamel, rubber, paint, vanish, plastic anodic-oxide layer) covered on conductive substrate (aluminum, brass, zinc and nonmagnetic stainless steel).

Various Optional Probe Coating Thickness Gauge Auto Matching Metal Shape 4

3.F3 Probe- Fe base
Measuring range: 0~3000μm
F3 probe measure the thickness of non-magnetic coating layers covered on magnetic substrate. Such as: non-magnetic (aluminum, chrome, copper, enamel, rubber, paint) covered on magnetic substrate (steel, alloy and magnetic stainless steel)

Various Optional Probe Coating Thickness Gauge Auto Matching Metal Shape 5

4.N3 Probe- Al base
Measuring range: 0~3000μm
N3 probe can measure the thickness of non-conductive coatings layers covered on conductive substrate. Such as: (enamel, rubber, paint, vanish, plastic anodic-oxide layer) covered on conductive substrate (aluminum, brass, zinc and nonmagnetic stainless steel).

Various Optional Probe Coating Thickness Gauge Auto Matching Metal Shape 6

5.F1/90°probe - Fe base
Measuring range: 0~1250μm
F1/90°use to measuring surface that can’t be touch by ordinary probe, it can measure the thickness of non-magnetic coating layers covered on magnetic substrate. Such as: non-magnetic (aluminum, chrome, copper, enamel, rubber, paint) covered on magnetic substrate (steel, alloy and magnetic stainless steel)

Various Optional Probe Coating Thickness Gauge Auto Matching Metal Shape 7

6. F10 probe - Fe base (Large range)
Measuring range: 0~10000μm
F10 probe measure the thickness of non-magnetic coating layers covered on magnetic substrate. Such as: non-magnetic (aluminum, chrome, copper, enamel, rubber, paint) covered on magnetic substrate (steel, alloy and magnetic stainless steel)

Various Optional Probe Coating Thickness Gauge Auto Matching Metal Shape 8

7.Standard coating thickness calibration pieces
Standard thickness value between 0~1250μm 5pcs/set, include Fe or Al base
Standard coating thickness calibration pieces (Large range)
Standard thickness value between 0~10000μm 5pcs/set, include Fe or Al base

Various Optional Probe Coating Thickness Gauge Auto Matching Metal Shape 9
