Product Details:
|
| Product Name: | Roughness Waviness Tester | Model: | SRT-7300 |
|---|---|---|---|
| X Direction Range: | 50mm | Z Direction Range: | ±500μm (optional ±1000μm) |
| Drive Straightness: | （0.05+2.5L/1000）μm (L；testing Length(mm) ) | Corresponding Standard: | ISO1997，Din1990，ASME1995，JIS1994 |
| High Light: | Inner Hole Surface Portable Roughness Tester,Profile Waviness Portable Roughness Tester |
||

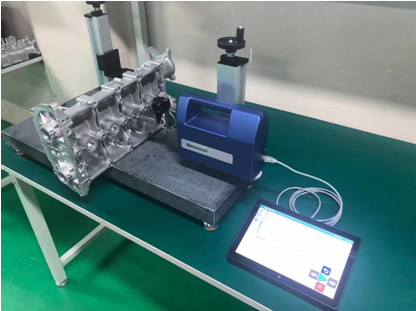

plane, cylindrical and cylindrical surfaces, inner hole surface roughness and profile Waviness Tester
Application Field:
SRT-7300 roughness and profile measuring instrument is a product fully in line with the latest ISO international standards. It is a multi-purpose portable instrument for evaluating the surface quality of parts. It has multiple parameters in line with multiple national and international standards. It can evaluate the roughness, waviness and original contour of a variety of parts. It can measure plane, cylindrical and cylindrical surfaces, inner hole surface and bearing raceway, etc. It has the characteristics of large measurement range, stable performance and high precision. It is suitable for production site, scientific research laboratory and enterprise measurement room. The corresponding parameters are calculated according to the selected measurement conditions, and the measurement results can be displayed on the LCD screen in the form of numbers and graphics, or output to the printer. The SRT-7300 can also be connected to a computer. The computer special analysis software can directly control the measurement operation and provide powerful advanced analysis functions.
The instrument performs parameter calculation on filter profile and direct profile, and all calculations comply with GB / t3505-2009 (product geometric technical specification (GPS), surface structure, profile method, terms, definitions and surface structure parameters).
Features:
1. Scratch depth and step height can be measured
2. 500um super large range inductive sensor, (1000um for model SRT-7300+)
3. Roughness, waviness and original contour parameters can be measured and graphics can be displayed.
4. There are two measurement methods with and without guide.
5. The sensor is connected with the host through the sensor lifting frame, and the height of the sensor can be adjusted without the help of the platform
| Testing range | X direction | 50mm | |
| Z direction | ±500μm (optional ±1000μm) | ||
| resolution | X direction | 0.00016μm/±μm -0.016μm/±400μm | |
| Drive | straightness | (0.05+2.5L/1000)μm (L；testing length(mm) ) | |
| Analysis item | Corresponding Standard | ISO1997,Din1990,ASME1995,JIS1994 | |
| Parameters | Roughness | Ramax, Ramin, Ra, Rasd, Rqmax, Rqmin, Rq, Rqsd, Rzmax, Rzmin, Rz, Rzsd, Rt, R3z, Rcmax, Rcmin, Rc, Rcsd, Rpmax, Rpmin, Rp, Rpsd, Rvmax, Rvmin, Rv, Rvsd, Rsmmax, RSmmin, RSm, RSmsd, Pc, RΔamax, RΔamin, RΔa, RΔasd, RΔqmax, RΔqmin, RΔq, RΔqsd, Rλamax, Rλamin, Rλa, Rλasd, Rλqmax, Rλqmin, Rλq, Rλqsd, Lr, Rskmax, Rskmin, Rsk, Rsksd, Rkumax, Rkumin, Rku, Rkusd, Rmax, Rmin, RzImax, RzImin, Rz.I, Rz.Isd, Rsmax, Rsmin, RS, RSsd, Rsk.J, Rku.J, Rpm, Rpmsd, Rymax, Rymin, Ry, Rysd, Smmax, Smmin, Sm, Smsd, Smax, Smin, S, Ssd | |
| Waviness | Wamax, Wamin, Wa, Wasd, Wqmax, Wqmin, Wq, Wqsd, Wzmax, Wzmin, Wz, Wzsd, Wt, Wcmax, Wcmin, Wc, Wcsd, Wpmax, Wpmin, Wp, Wpsd, Wvmax, Wvmin, Wv, Wvsd, WSmmax, Wsmmin, WSm, WSmsd, WΔqmax, WΔqmin, WΔq, WΔqsd, Wskmax, Wskmin, Wsk, Wsksd, Wkumax, Wkumin, Wku, Wkusd, Wca, WC-q, WC-t, WC-v, WC-Sm | ||
| Profile | Pa, Pq, Pt, Rz.J, Pc.I, Pp, Pv, PSm, PΔq, TITL, Psk.J, Pku.J, Rmax | ||
| Special Roughness | Rk, Rpk, Rvk, Mr1, Mr2, V0, K, A1, A2 | ||
| Motif | NCRX, R, Rx, AR, NR, CPM, SR, SAR, W, Wx, AW, Wte, NW, SW, SAW | ||
| Evaluation Curve | Roughness curve, waviness curve, profile curve, special roughness curve, roughness Motif curve, waviness Motif curve, envelope waviness curve | ||
| Characteristic curve | Load curve , amplitude distribution curve | ||
| Filter | Filter | Gauss filter, FFT filter, 2RC filter | |
| Filter stop | λc :0.25,0.8,2.5,8mm λs:0.25,0.8,2.5,8,25,80μm λf: 25mm |
||
| Evaluation length | |||
| Testing Speed | 0.1mm/s,0.5mm/s,1.0mm/s,1.5mm/s,2.0mm/s | ||
| Sensor | Model | Standard Universal type | |
| Sensor mode | Differential inductance | ||
| Testing range | ±500μm (±1000μm SRT-7300+) | ||
| Testing needle | 5μmR diamond 90° | ||
| Testing Force | below 4mN | ||
| Operator | Display | 7 inch color LCD touch screen | |
| Data output | SD card/bluetooth connecting PC/PC printer | ||
| Language | Chinese/English | ||
| Size and Weight | Power/consumption | AC220V±10% Built-in rechargeable battery (AC transformer charging) , charging time 5 hours | |
| Power consumption | About 30VA( It can be measured up to 400 times on a full charge) | ||
| Weight | Net weight 3.4Kg Gross weight 4.75Kg | ||
| Setting Size | Driver 364(W)*80(D)*145(H) Operator 212(W)*182(D)*50(H) |
||
| Package size | 410mm(W)*340(D)*180(H) | ||
Application Case:
Outer sphere measurement
Inner sphere measurement
Convex sphere measurement
Outer raceway measurement
Inner raceway measurement
Tooth surface measurement
Measurement of concave R angle
Narrow groove side measurement (piston)
