Product Details:
|
| Product Name: | Surface Roughness Tester | Display: | 3.5 Inches Color Graphic TFT Touch Screen |
|---|---|---|---|
| Accuracy: | Less Than ±10% | Measuring Range: | ±80um/±160 Um(can Be Optional To 320um) |
| Parameters: | 22 Parameters | Power Supply: | Built-in Lithium Ion Battery, Charger :DC5V,800mA |
| High Light: | Touch Screen Portable Surface Roughness Tester,Diamond Probe Portable Surface Roughness Tester,Touch Screen Portable Roughness Tester |
||
| Measuring Range | The Z axis (vertical) | ±80μm/±160 µm(enhanced model) |
| The X axis (Transverse) | 20mm | |
| Resolution | The Z axis (vertical) | 0.01μm/±20μm |
| 0.02μm/±40μm | ||
| 0.04μm/±80μm | ||
| 0.08μm/±160μm | ||
|
22 Parameters
|
Ra,Rz,Rq,Rt,Rp,Rv,R3z,R3y,Rz(JIS),Rs,Rsk,Rsm,Rku,Rmr,Ry(JIS), Rmax, RPc, Rk, Rpk, Rvk, Mr1, Mr2) | |
| Graphic | Bearing area curve, Roughness profile, Primary profile | |
| Filter | RC,PC-RC,Gauss,D-P | |
| The sampling length(lr) | 0.25, 0.8, 2.5mm | |
| Assessment length(ln) | Ln= lr×n n=1~5 | |
| Sensor | Measuring method | skidded |
| Stylus tip | Diamond, 90 cone angle, 5μmR | |
| Force | <4mN | |
| Skid part | hard alloy, skid radius of curvature: 40mm | |
| Traversing speed | lr=0.25, Vt=0.135mm/s | |
| lr=0.8, Vt=0. 5mm/s | ||
| lr=2. 5, Vt=1mm/s | ||
| Return Vt=1mm/s | ||
| Accuracy | Less than ±10% | |
| Repeatability | Less than 6% | |
| Power supply | Built-in Lithium ion battery, Charger :DC5V,800mA | |
| Outline dimension | Main unit: 64*53*160mm drive: 23*27*115mm | |
| Weight(main unit) | Around 380g | |
| Working Environment |
Temperature: - 20℃ ~ 40℃ Humidity: < 90% RH |
|
| Store and Transportation |
Temperature: - 40℃ ~ 60℃ Humidity: < 90% RH |
|

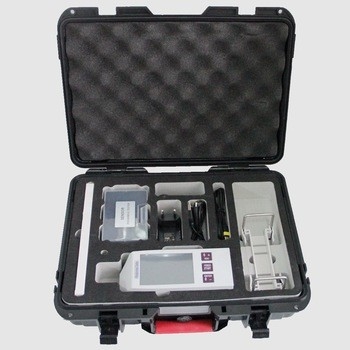

Standard Delivery
| ITEM | QTY |

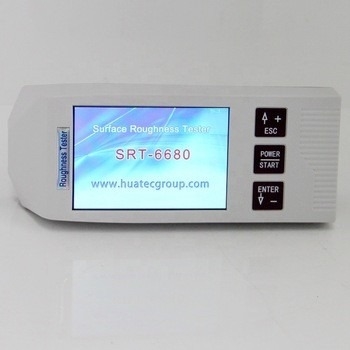

| SRT6680 Host | 1 PC |

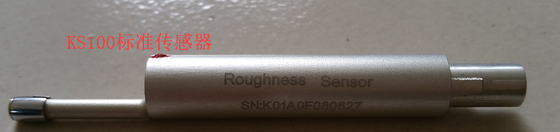

| Sensor TS110 | 1 PC |
| Calibration block and bracket | 1 PC |
| Bracket for Calibration Block | 1 PC |
| Height adapter | 1 PC |
| Power Charger & USB Cable | 1 PC |
| PC Software | 1 PC |
| User manual | 1 PC |
| Instrument case | 1 PC |
| Warranty | 2 Years |
