Product Details:
|
| Product Name: | Coulometric Thickness Tester | Model: | TG-100G |
|---|---|---|---|
| Measuring Range: | 0.03～300μm | Resolution: | 0.01um |
| Repeatability: | ≤5% | Calibration: | Factory Calibration |
| High Light: | Electrolytic Coulometric Thickness Tester,Inbuilt Printer Coulometric Thickness Tester |
||

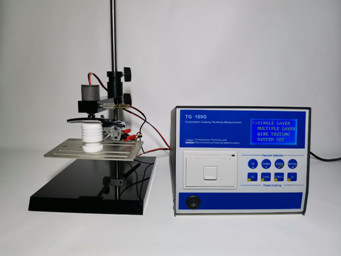

Electrolytic (coulomb) Thickness Gauge Coulometric Thickness Tester Inbuilt Printer
General introduction
Technical specification
| Plating type | Single metal paiting layer | Composite multiple plating layer | Alloy plating layer | Multi-layer nickel |
| Cr,Ni,Cu, Zn,Sn,Ag, Au,Cd,Co, Pb etc. | Cr/Ni/Cu etc. | NiP,ZnNi, SZn,SPb etc. | The thickness of each layer of multilayer nickel and the potential difference between nickel layers | |
| Substrate | Metal | Non-metal | ||
| Steel,copper,copper alloys, die-cast zinc,aluminum etc | Plastic,neodymium iron boron,ceramics etc | |||
| Measuring range | 0.03～300μm | |||
| The best use range 0.03～50um,Over 50um,the error will gradually become larger | ||||
| Resolution | 0.01um | |||
| Repeatability | ≤5% | |||
| Indication error | ≤10% | |||
| Potential range | 0～3000mv | |||
| Potential accuracy | 0.01mv | |||
| Probe size | Standard:φ2.4,φ1.7(unit:mm) Optional:φ1.2,φ1.0,φ0.8(unit:mm) |
|||
| Wire test | Diameter 0.050～4mm multi-layer coating thickness on the cylindrical surface, without conversion, direct reading |
|||
| Test stand | Standard:STD07 Optional:STD16,STD19,STD-W wire test stand |
|||
| Calibration | Factory calibration calibrate a single coating with calibration foils or uniformly calibrate |
|||
| Stop measurement | Automatic judgment | |||
| Stand-alone use | When not measuring the potential difference | |||
| A laser or inkjet printer can be purchased separately to print A4 format test results, Excel format, content can be customized In stand-alone use, a thermal printer can be used to print the test results |
||||
| Print Content | Plating type, single measurement value, average value, maximum value, minimum value, standard deviation, coefficient of variation, time Thickness-potential curve |
|||
| Display mode | Online use:PC Screen display Stand-alone use:126*64 dot LCD screen |
|||
| Data stroage | PC Database | |||
| Test Hot Key | Stand-aone use,you can customize the hot key for single plating or multiple plating/substrate combination | |||
| Curve Analysis | can be displayed on the same screen and modified at will | |||
| Pause test | For thick coatings, you can pause at any time and continue the test after changing the electrolyte | |||
| Data check | multiple query methods | |||
| Operating system | Windows XP,win7,win10 | |||
| Software upgrade | New products in December 2019, continuous upgrade | |||
| Power Supply | AC 220V, AC 110V can be customized | |||
| Host Size | 200*255*161(mm) | |||
