Non Destructive Portable X Ray Fluorescence Spectrometer , Handheld Metal Analyzer

Non Destructive Portable X Ray Fluorescence Spectrometer , Handheld Metal Analyzer
Non Destructive Portable X Ray Fluorescence Spectrometer , Handheld Metal Analyzer Non Destructive Portable X Ray Fluorescence Spectrometer , Handheld Metal Analyzer Non Destructive Portable X Ray Fluorescence Spectrometer , Handheld Metal Analyzer Non Destructive Portable X Ray Fluorescence Spectrometer , Handheld Metal Analyzer

Large Image :  Non Destructive Portable X Ray Fluorescence Spectrometer , Handheld Metal Analyzer

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO,CE,Gost
Model Number: HXRF-120DP
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: in High quality carton
Delivery Time: 3-7 days
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 100 sets per month

Non Destructive Portable X Ray Fluorescence Spectrometer , Handheld Metal Analyzer

Description
Product Name: Portable X-ray Fluorescence Spectrometer Model: HXRF-120DP
Measurement: 300mm X 90mm X 220mm Weight: 1.4Kg
High Light:

nondestructive portable x ray fluorescence spectrometer

,

handheld portable x ray fluorescence spectrometer

,

nondestructive handheld x ray fluorescence spectrometer



High Quality Handheld Portable X-ray Fluorescence Spectrometer Metal Analyzer



Product description
1. The portable alloy analyzer uses today's most advanced XRF technology to analyze low-alloy, stainless steel, nickel, titanium, cobalt, copper alloys, and other alloys and jewelry; Nonferrous metal, rare metal detection and analysis.



Design features
1. The light weight, small size and pointed mouth are designed in accordance with human engineering

2. Excellent performance, on-site nondestructive testing, automatic compensation for irregular or small sample tests

3. One-key button design, simple operation

4. 1/3 body aluminum alloy structure, good heat dissipation effect, stable work

5. 10 seconds fast startup is better than similar instruments;The test is fast and can accurately analyze the metals involved in the RERA and the preferred control contaminating metals in seconds

6. Solid structure, sealed large screen color TFT display, no LCD plateau reaction, moisture and dust proof

7. Stable and advanced operating system, advanced I-Smart software, quick response

8. Massive storage and long standby time

9. Flexible and universal communication functions



Technical parameters and specifications

Technical parameters and specifications

Handheld elements Analyzer Technical Parameter
1 Weight 1.4Kg
2 Measurement 300mm x 90mm x 220mm
3 Environmental Temperature -20℃~+ 50℃
4 Display Rotatable VGA colorful Touch screen Monitor with high resolution and English operation interface.
5 Configuration Design Ergonomically designed configuration, Integrated Design of processor and instrument, water-proof and dust-proof
6 Excitation Source X-Ray Tube, Au (Ag,W,Ta,Pb) target, Maximum Voltage 50kv, Maximum Current 40uA.
7 Detector High-Performance, High-Sensitivity, High-Resolution Si - Pin X-ray detector

8 Analysis Range Plastic Mode:Cd, Pb, Hg, Cr, Br, Cl ,Ba, Sb, Sn, Bi, Pb, Br, Se, As, Hg, Au, Zn, Cu, Ni, Fe, Cr, V, Ti.
Electronic metal mode:Ba, Sb, Sn, In, Cd, Pd, Ag, Mo, Nb, Zr, Bi, Pb, Hg, Br, Se, Au, W, Pt, Zn, Cu, Ta, Hf, Ni, Co, Fe, Mn, Cr, V, Ti
9 Detection Algorithm

Fundamental Parameter (FP) method:The analysis ranges for all elements vary from Limit of Detection to 100%.

1. Easy to use. 2. Avoidance of wrong judgment. 3. Wide adaptability for all kinds of samples.

10 Operation System Mobile Windows CE system
11 Filters Six Filters are installed in the instrument which can be selected automatically according to the testing modes.
12 Cooling Mode Peltier Semiconductor Cooling the refrigeration temperature - 35
13 Electric Source

Two rechargeable Lithium Batteries, can be used continuously for 6-8 hours.

Power supply from rechargeable Lithium battery or alternating current adapter

110V-240V/ AC,50/60Hz.Battery charger 110V-240V/ AC,50/60Hz.

14 System Electronic Component

Intel 400MHz Strong Arm



15 Operation

1. Controlled by Analysis trigger.

2. Customer can set analysis time freely.

16 Instrument Extending Customer can set up testing curve by themselves
17 Testing and Display

Qualitative and Quantitative analysis of the components and Result Display.

Spectrogram Display.

Automatic display for double sigma error of the Testing Data.

18 Data Storage 8 G high-capacity data storage card,Storage up to more than 40000 Testing Data and Spectrogram.May at any time through the instrument touch-screen computer or export to personal PC.
19

Date Transfer

Testing Report

Bluetooth wireless, USD, and RS-232 serial communications interfaces are included in every analyzer. Advanced Data Transfer PC software lets you set user permissions, print certificates of analysis to document results, or operate the analyzer right from your PC.
20 The Convenience On-site No requirement for the shape of materials. Space measurement is available for the tested surface.
21 Safety A touch of "trigger" software automatic timing trigger lock or automatic stop testing protective function; Sample window without judgment test automatically closed X-ray after 2 seconds
22 Accessories Instrument, Two Rechargeable Batteries, Battery Charger, Data Download Cable, Wireless Bluetooth, User’s Guide in English Version, Two Window Prolenes, Application Software, Instrument Case, Lock Case, Standard Samples.

Technical parameters

[Weight] Basic weight: 1.4kg, 1.5kg after loading the battery

[Dimension (height x width x length)] 300mm x 90mm x 220mm

[Excitation source] Five kinds of target materials can be selected: gold (Au), silver (Ag), tungsten (W), tantalum (Ta), palladium (Pb).

[Voltage, current and power] High-power micro X-ray tube 50KV, 100MA, 5W

[Filter] Six optional filters are automatically adjusted according to different physical objects

[Detector] High-performance high-resolution SI-PIN X-ray detector

[Refrigeration temperature of detector] Peltier effect semiconductor refrigeration, refrigeration temperature -35

[Standard sheet] External 316 standard sheet;

[Resolution] & LT;180

[Power supply] 8 hours /2 blocks of lithium power supply and AC power supply

[Processor] Intel 400MHz Strong-arm processor

[Operating system] Mobile Windows CE system

[Software Standard Mode] Alloy

[Data processing] 8G large-capacity data memory card: ≥40, 000 groups of data and spectrograms, which can be viewed at any time through the instrument's touch screen computer or exported to personal PC.

[Data analysis] Multiple analysis modes, including basic parameters, Compton normalization, empirical calibration mode, spectral color matching

[Data display] focuses on PPM with percentage (%) display, spectral or peak intensity (counting rate) or user-defined units

[Data transmission] RS232 serial cable, Bluetooth, TXT file, EXCEL grid output.

[Display screen] Color, high resolution 3.5-inch TFT industrial-grade touch screen, large icon graphical interface, clearly visible under any light conditions;

[Appearance design] Integrated fuselage design, solid, waterproof, dustproof, anti-freeze, effective anti-vibration, suitable for outdoor, wet or low temperature environment.

[Safety operation] One-touch "trigger", the software automatically timing lock the trigger or automatically stop the test protection function;Determine that there is no sample in the test window and the X - ray will be automatically turned off within 2 seconds

[Analysis elements] Cr, Mn, Fe, Ni, Cu, Zn, Hg, As, Pb, Se, Rb, Sr, Zr,Co, V, Mo, Ag, Cd, Sn, Sb, Ba,K, Ca, Ti and Th have no less than 25 elements;

[Test environmental conditions] Temperature -20 ~ +50℃, humidity < 80%RH.

[Boot time] The device will not be powered on for more than 15 seconds before entering the test interface

[Calibration] The instrument has been calibrated before leaving the factory; However, the instrument still has the function of establishing a targeted correction curve, which is suitable for the precise test of specific samples

[Result Report] Equipped with standard USB interface, Bluetooth wireless transmission and built-in WiFi, the instrument can directly transmit data to computers or network storage devices, and directly download measurement data and X-ray spectra in customized report format and EXCEL format.User permissions can be set, custom reports can be generated and analysis reports can be printed.

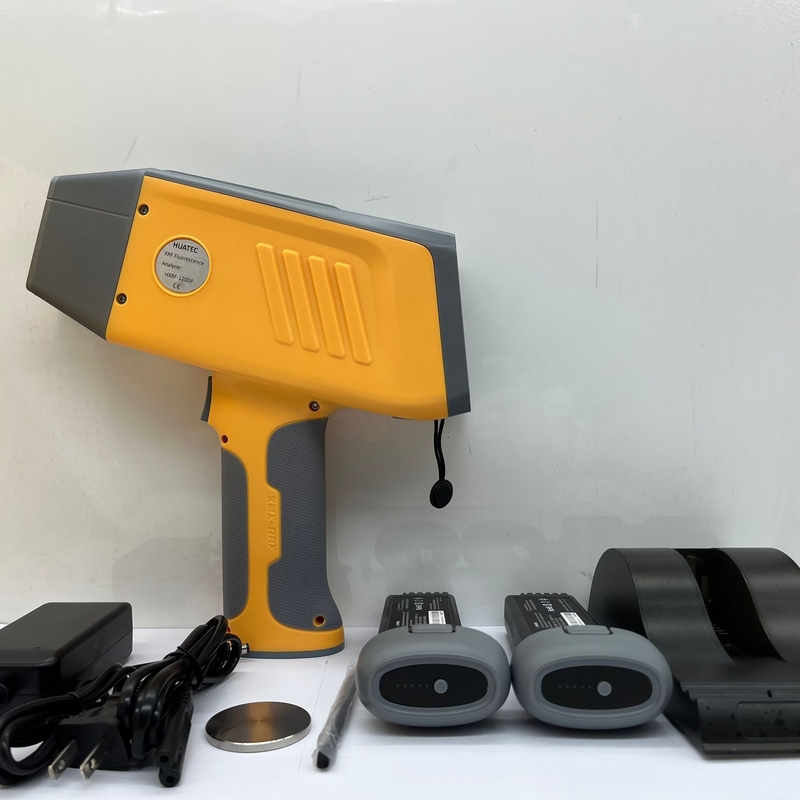

Non Destructive Portable X Ray Fluorescence Spectrometer , Handheld Metal Analyzer 0

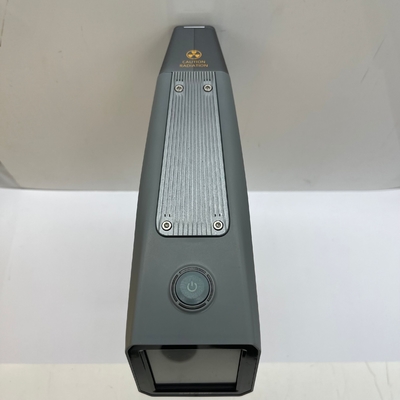

Non Destructive Portable X Ray Fluorescence Spectrometer , Handheld Metal Analyzer 1

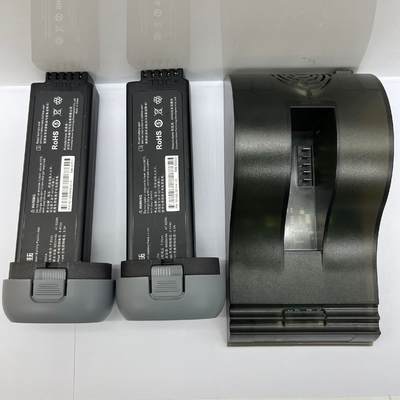

Non Destructive Portable X Ray Fluorescence Spectrometer , Handheld Metal Analyzer 2
